3-phase MAINS parameter analyzer

In stock - 19 items available
SKU: TPM-01ESH
Common price 1 318 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

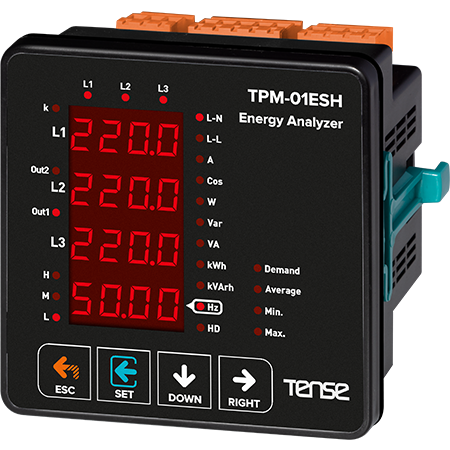

3-phase network analyzer / Network analyzer / Network parameter meter - multifunctional meter with digital panel, indicator of currents, voltages, frequencies and total power, with two relay outputs and digital input, RS485 ModBus RTU - TPM-01ESH manufactured by TENSE (Turkey)

Multifunctional analyzer for electrical networks is intended for accurate measurement of parameters in three-phase networks

Energy analyzers are designed for measuring and monitoring electrical values. Using the communication function, energy measurements can be monitored and reported independently.

Main advantages:

  • RS485 Modbus RTU (1200-38400bps)
  • 3-phase voltage transformer and 3-phase current transformer.
  • Displays harmonic voltages and currents up to the 31st harmonic

  • Shows active power per phase (P)

  • Shows reactive power per phase (Q, inductive and capacitive)

  • Shows apparent power per phase (S)

  • Displays values for Cosφ and efficiency for each phase

  • Displays values for phase - neutral, phase - phase voltage (V) and current (I) for each phase, measurement of frequency

  • Shows total values for import and export of active energy (ΣkWh)

  • Displays values for total inductive and capacitive reactive energy (ΣkVArh)

  • Shows minimum and maximum values, max. demand

  • 2 relay outputs, 1 digital input

  • Event recording (high/low voltage/current, voltage/current imbalance, THD-I)

  • The menu is password protected.

This network analyzer is usually used with current transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. Such transformers can be purchased in our e-shop, just click on the link - Instrument transformers for current .

If you plan to connect the analyzer to ModBus, we will send you a Register Table with ModBus addresses upon request.
