TENSE

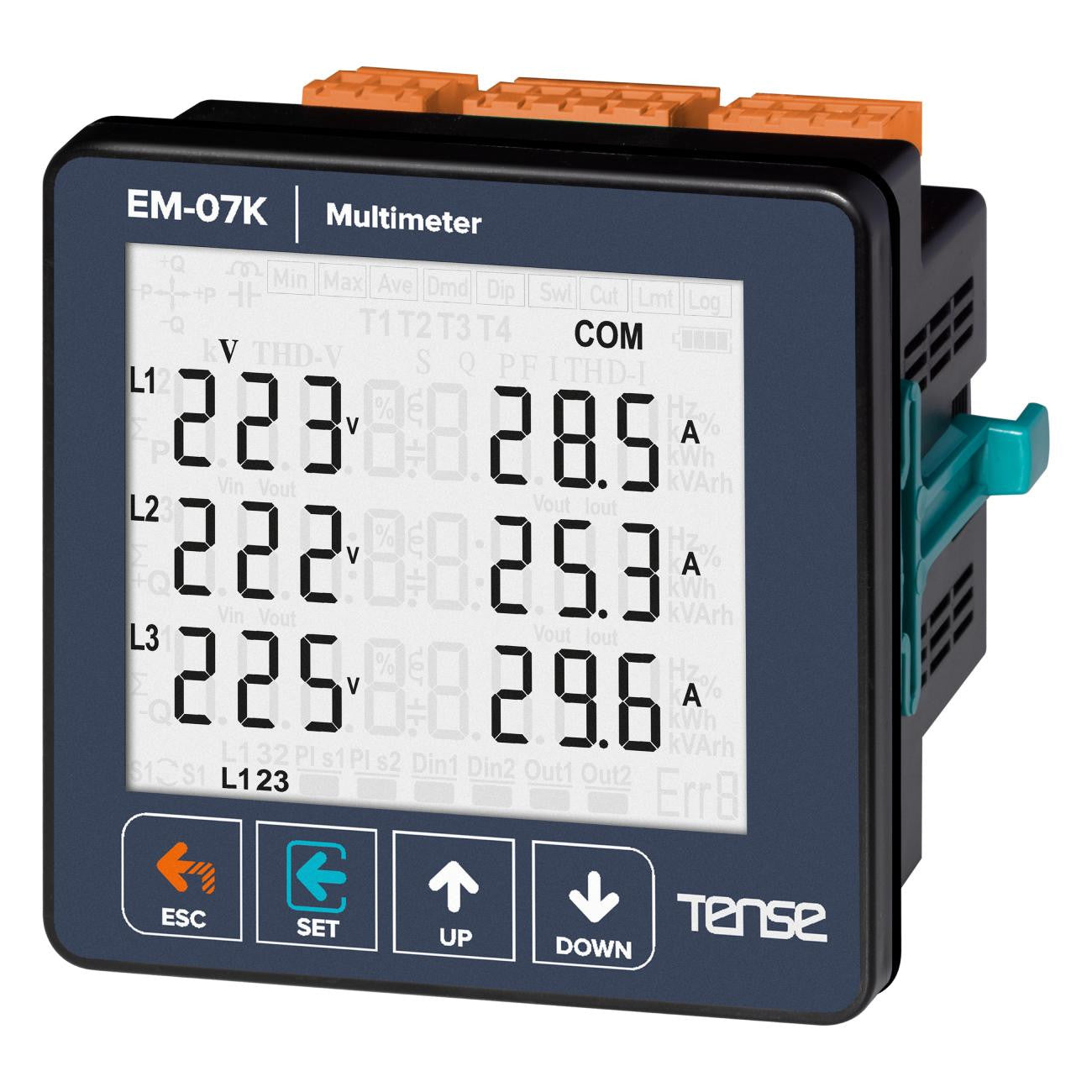

3-phase panel multimeter for current, voltage, frequency, power, energy RS485

Sold
SKU: EM-07K
997 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

Three-phase multimeter - 3-phase multifunctional digital panel meter, indicator of currents, voltages, frequencies and total power, energy kW*h and ModBus RTU from the manufacturer TENSE (Turkey), panel meter.

Main advantages:

  • RS485 Modbus RTU (1200-38400bps)
  • 71.5 x 61.5 own design glass LCD
  • 3-phase voltage transformer and 3-phase current transformer.
  • Shows V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3
  • Displays minimum, maximum and average values V1,V2,V3,V12,V23,V31,F1,F2,F3
  • Displays minimum, maximum, average and desired values I1,I2,I3,S1,S2,S3 High/low voltage, current, frequency (adjustable) Phase-neutral or phase-phase protection (adjustable)
  • Energy meter / Electric meter
  • Protects voltage, current and frequency
  • Shows phase sequence
  • You can delete requirements
  • The menu is password protected.

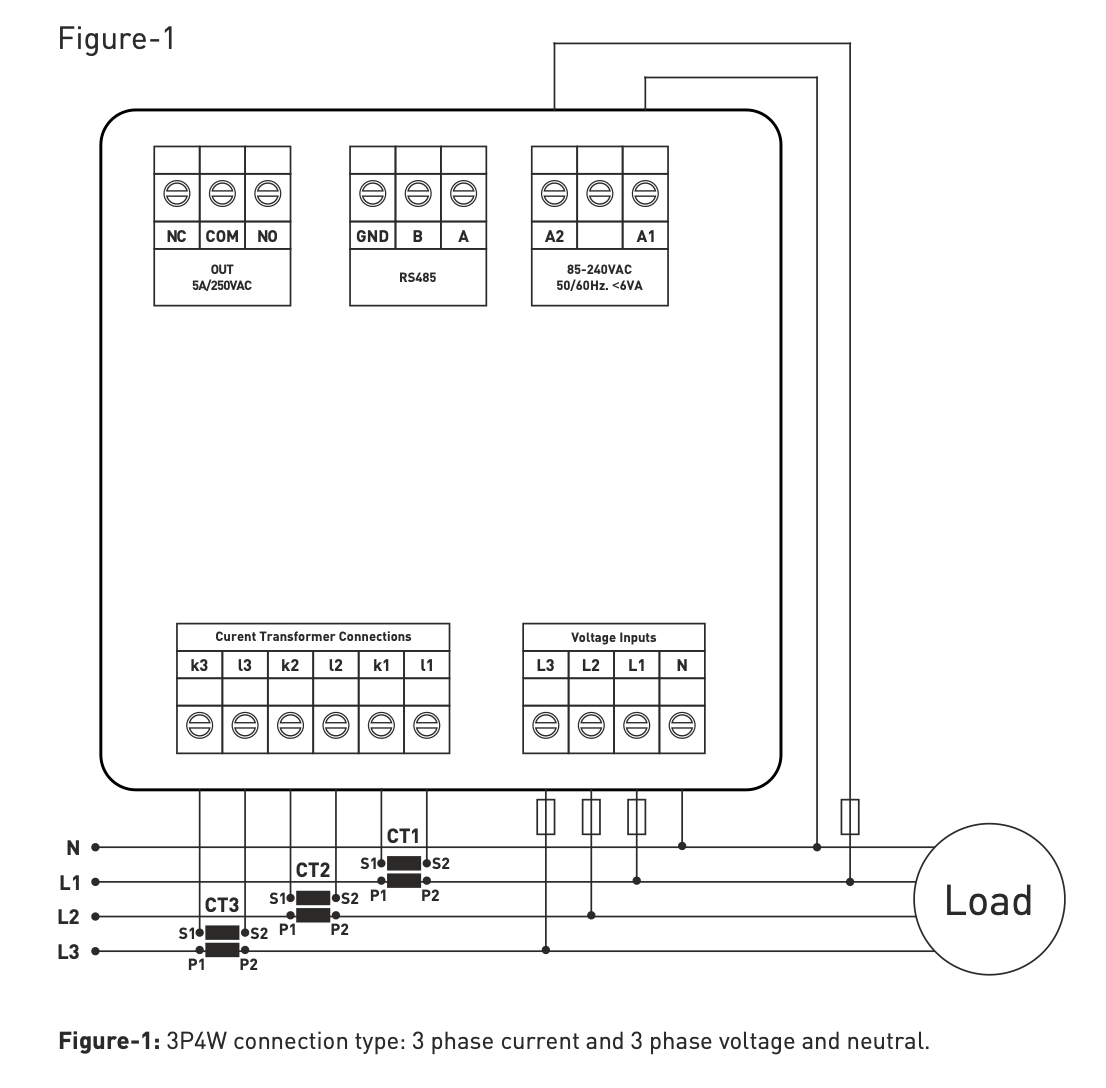

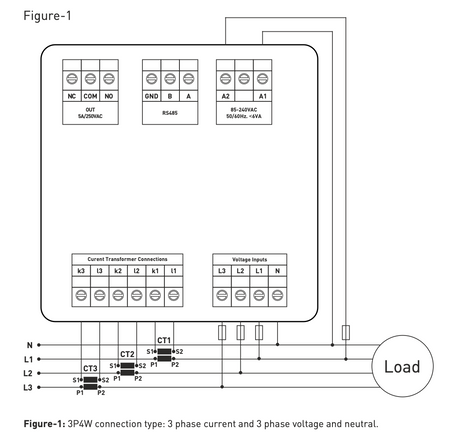

This multimeter is usually used with current transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can buy such transformers in our e-shop, just click on the link - Instrument transformers for current .
