TENSE

Analyses of parameters for 3-phase network of currents, voltages, frequencies, power and energy RS485

In stock - 19 items available
SKU: TPM-05
2 251 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

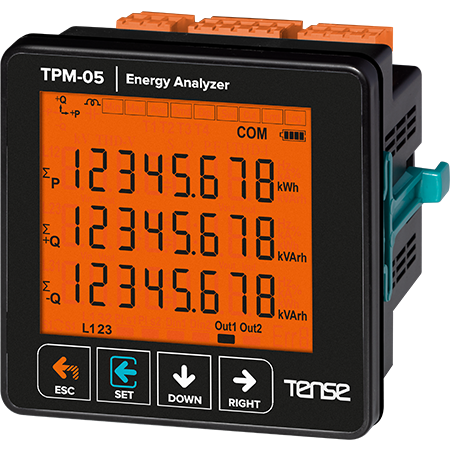

Analysis of parameters for 3-phase network - three-phase multifunctional meter with digital panel, indicator of currents, voltages, frequencies and total power, with two relay outputs and digital input, RS485 ModBus RTU - TPM-05 manufactured by TENSE (Turkey) panel meter.

Energy analyzers are designed for measuring and monitoring electrical values. Thanks to the communication function, energy measurements can be monitored and reported independently. Energy analyzers can be used to perform analyses such as energy quality, efficiency and unit cost calculation.

Main advantages:

  • RS485 Modbus RTU (1200-115200bps)
  • 3-phase voltage transformer and 3-phase current transformer.

  • Displays harmonic voltages and currents up to the 55th harmonic

  • Shows active power per phase (P)

  • Shows reactive power per phase (Q, inductive and capacitive)

  • Shows apparent power per phase (S)

  • Displays values for Cosφ and power factor for each phase

  • Displays values for phase - neutral, phase - phase voltage (V) and current (I) for each phase, measurement of frequency

  • Shows total values for import and export of active energy (ΣkWh)

  • Displays values for total inductive and capacitive reactive energy (ΣkVArh)

  • Shows minimum and maximum values, max. demand

  • 2 relay outputs, 1 digital input

  • Event recordings (high/low voltage/current, voltage/current imbalance, THD-I, power failure)

  • Current date and time (RTC)

  • The menu is password protected.

This network analyzer is usually used with current transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. Such transformers can be purchased in our e-shop, just click on the link - Instrument transformers for current .

If you plan to connect the analyzer to ModBus, we will send you the Register Table with ModBus addresses upon request.
