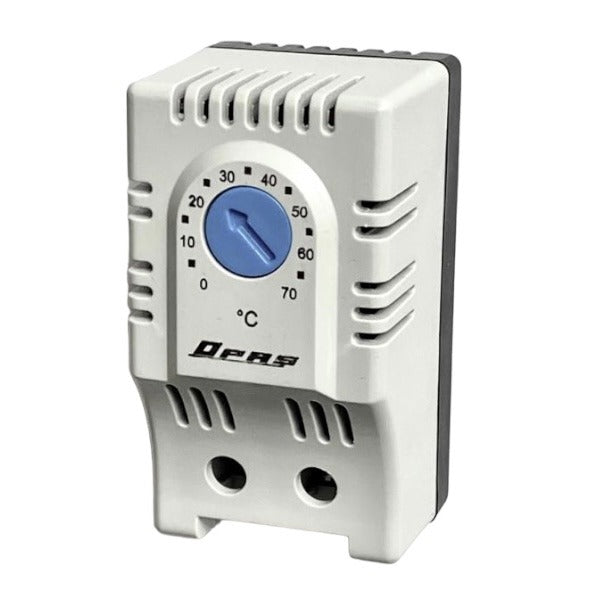

Bimetallic refrigeration thermostat / temperature switch NO, breaking, 0-60°C, bimetal from the company OPAŞ

Thermostat for cabinets (temperature relay, temperature sensor, heating relay, air temperature control relay) mechanical with built-in air temperature sensor for installation on DIN rail for connecting a fan or signaling when the temperature exceeds the set level, normally open contact (NO contact) PTOT100, 2p, screw terminals, bimetallic thermostats OPAŞ.

These thermostats are used in systems that maintain the set temperature using cooling components, such as fans or air conditioning. These systems are used to prevent overheating of equipment installed in electrical cabinets, ATMs, payment terminals and other devices installed outdoors or in non-cooled rooms.

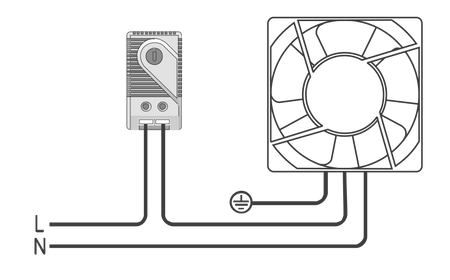

They are used to connect fans, coolers/air conditioners.

Properties

PTOT100

Contact type

NO

Setting range

0-60°C

Color of potentiometer

Blue

250V AC / 120V AC

15 (2) A

Sensor type

Bimetal

Contact type

Snap Action

Life

> 100,000

Electrical connection

2-pin terminal, screw terminals

Plastic material

UL94 V0 ABS Flame Retardant

Protection level

IP20

Operating temperature

-25 / +80 °C

Storage temperature

-45 / +80 °C

Mounting

DIN rail 35mm

Dimensions HxWxD

61x34x38 mm

Weight

43g
