The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.
In the event of a complaint, no fee is charged for returning goods.

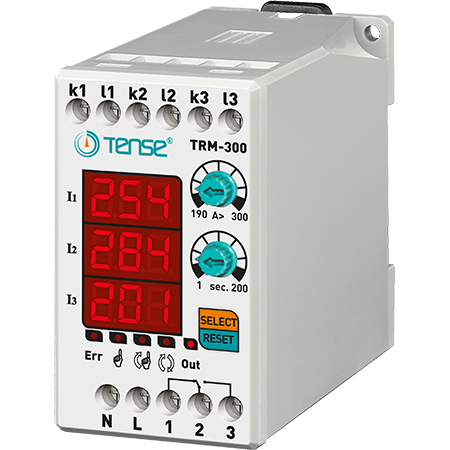

Digital thermal relays are designed to protect and control loads against damage caused by high current.
190A - 300A (adjustable overload value)
50% fixed asymmetry in the current
Adjustable fault delay
Adjustable operating mode (automatic, semi-automatic, manual)
Includes current transformers
Technical specifications:
- Operating voltage: 150V – 260VAC
- Operating frequency: 50/60 Hz
- Power: <6 VA
- Operating temperature: -20°C to +55°C
- Display: 3x3-digit display + 5 LED diodes
-
High current (overload):
- TRM-50: 15A – 50A
- TRM-100: 40A – 100A
- TRM-200: 90A – 200A
- TRM-300: 190A – 300A
- TRM-400: 290A – 400A
-
Delay (t):
- TRM-50/100: 0.1 s – 20 s
- TRM-200/300/400: 1 s – 200 s
- Type of connection: Clamp
- Contact: 5A / 250VAC (resistive load)
- Cable diameter: 2.5 mm²
- Weight: max. 250 g
- Mounting: On DIN rail
- Operating altitude: <2000 m
- Asymmetry: Fixed set at 50 % (except TRM-400)
