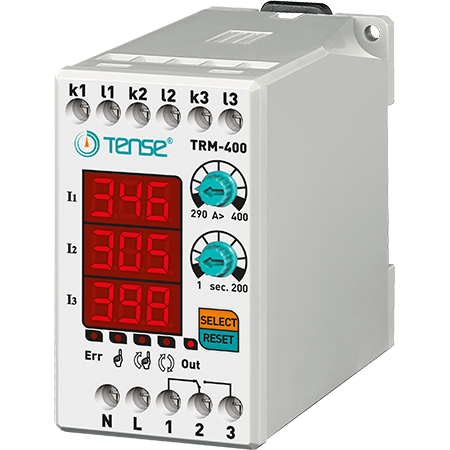

Digital overcurrent relay with LED display 3×3 digits TRM-400

In stock - 5 items available
SKU: TRM-400
Common price 2 174 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

Digital current relays are intended to protect and control loads from damage due to high current.

290A – 400A (adjustable overload value)
Adjustable fault delay
Adjustable operating mode (automatic, semi-automatic, manual)
Includes current transformers

  • Operating voltage: 150V – 260VAC
  • Operating frequency: 50/60 Hz
  • Power: <6 VA
  • Operating temperature: -20°C to +55°C
  • Display: 3x3-digit display + 5 LED diodes
  • High current (overload):
    • TRM-50: 15A – 50A
    • TRM-100: 40A – 100A
    • TRM-200: 90A – 200A
    • TRM-300: 190A – 300A
    • TRM-400: 290A – 400A
  • Delay (t):
    • TRM-50/100: 0.1 s – 20 s
    • TRM-200/300/400: 1 s – 200 s
  • Type of connection: Clamp
  • Contact: 5A / 250VAC (resistive load)
  • Cable diameter: 2.5 mm²
  • Weight: max. 250 g
  • Mounting: On DIN rail
  • Operating height above sea level: <2000 m
  • Asymmetry: Fixed set at 50 % (except TRM-400)
