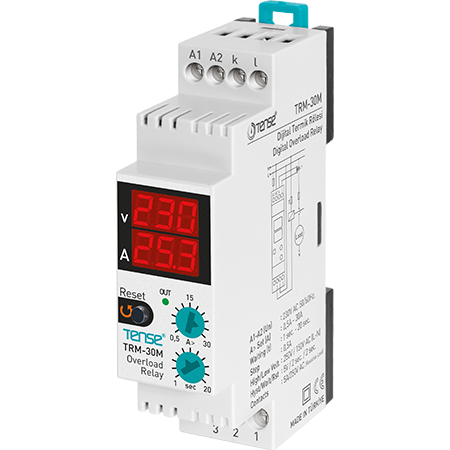

TRM-30M
Digital overcurrent relay with surge protection protects devices with sensitive operating voltages against disturbances caused by mains voltage or overload.
Setting range for overload: 0.5A – 30A
Adjustment of fault delay
External current transformers
Surge protection: 250V (fixed)
Voltage drop protection: 150V (fixed)
Technical specifications:
- Operating voltage (Un): 230V AC 50/60 Hz
- Operating frequency: 50/60 Hz
- Power: <6VA
- Operating temperature: -20°C to +55°C
- Display: 2x3-digit display, 1x LED lamp
- High current (overload): 0.5A – 30A
- Step for current adjustment: 0.5A
- Fault delay (t): 1 s – 20 s
- Upper voltage limit: 250V (L–N) – fixed set
- Lower voltage limit: 150V (L–N) – fixed set
- Voltage hysteresis: 5V (fixed)
- Delay on fault voltage: 2 s (fixed)
- Reset after fault voltage: 2 s (fixed)
- Connection type: Screw connection
- Contact: 5A / 250V AC (resistive load)
- Cable diameter: 2.5 mm²
- Weight: <150 g
- Mounting: On DIN rail
- Operating height: <2000 m
