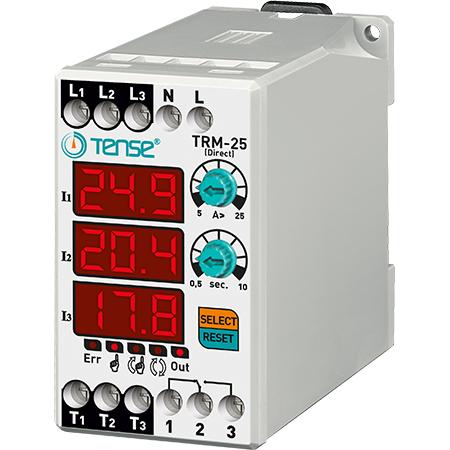

Direct digital overcurrent relay with 3×3 slot LED display TRM-25

In stock - 5 items available
SKU: TRM-25
539 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.
Digital thermal relays protect loads from damage due to high current. Overload setting range: 0.1A – 25A
Fixed asymmetry of current: 50 %
Adjustment of fault delay
Adjustment of operating mode (automatic, semi-automatic, manual)
Built-in measuring transformers for current

Technical specifications:

  • Operating voltage: 150V – 260VAC
  • Operating frequency: 50/60 Hz
  • Power: <6VA
  • Operating temperature: -20°C to +55°C
  • Display: 3x3-position display, 5 LED diodes
  • Asymmetry: 50 % (fixed set)
  • High current (overload):
    • TRM-03: 0.1A – 3A
    • TRM-12: 3A – 12A
    • TRM-25: 0.1A – 25A
  • Delay (t): 0.1 s – 10 s, 0.1 s – 20 s (for TRM-25)
  • Connection type: Terminal connection
  • Contact: 5A / 250VAC (resistive load)
  • Cable diameter: 2.5 mm²
  • Weight: max. 250 g
  • Mounting: On DIN rail
  • Operating altitude: <2000 m
