Plastim

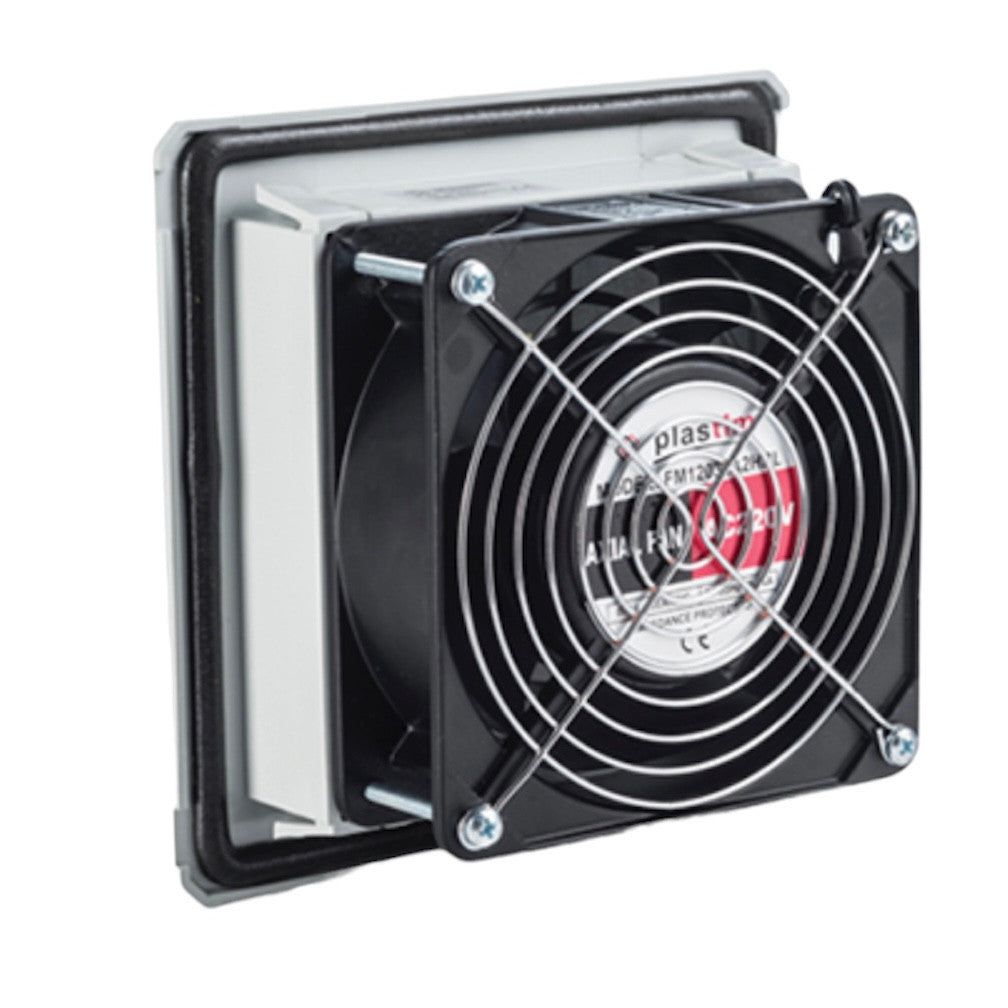

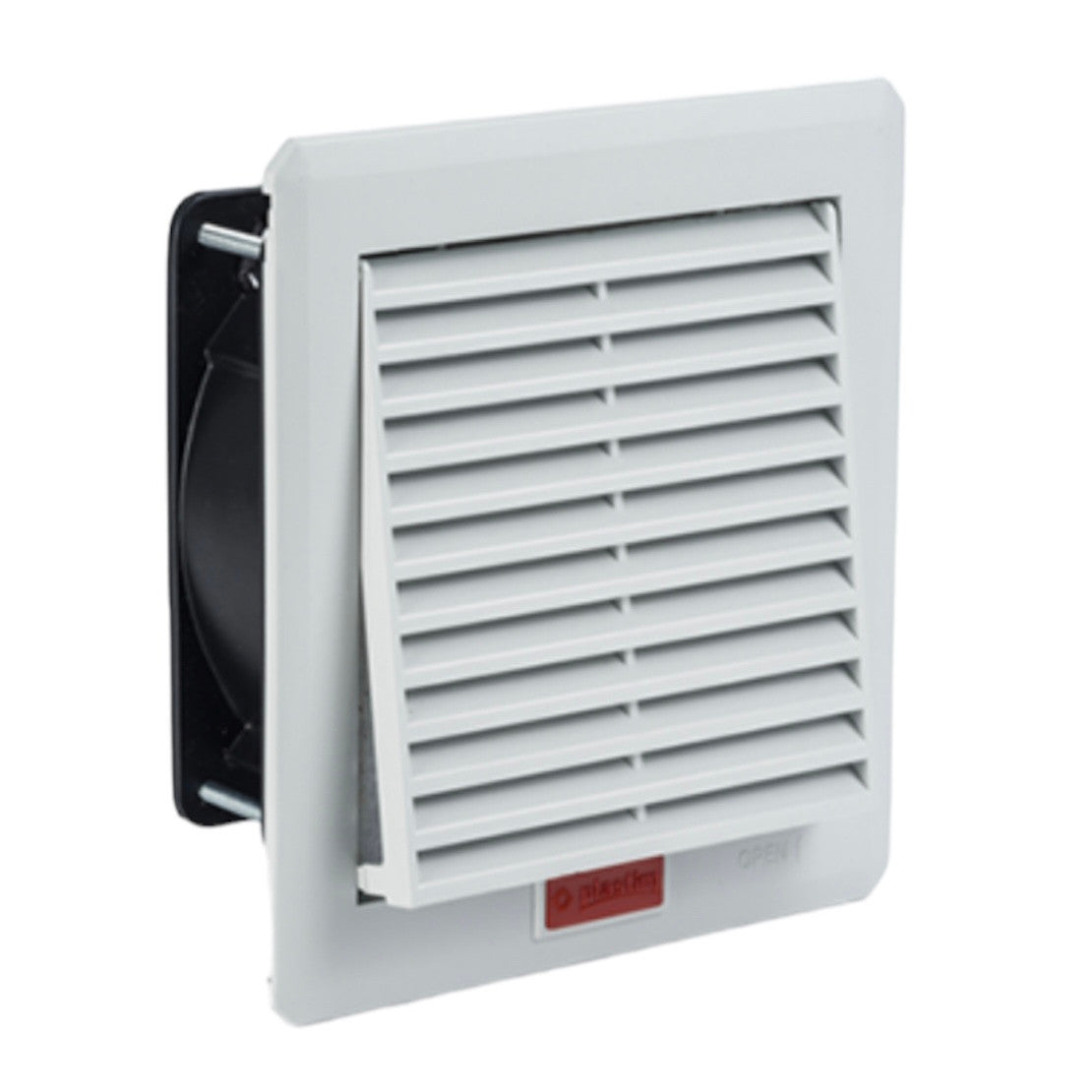

Fan with filter, 100 (140) m3/h, 160x160, 230V 50/60Hz IP54 PTF1500 Plastim

In stock - 196 items available
SKU: PTF1500
450 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

Ventilation grille with fan and filter, dimensions 160x160 mm, for installation in electrical cabinets, automation cabinets, ATMs or gaming terminals. PTF1500, manufacturer Plastim (Türkiye)

Used to draw in outside air into electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, pumping stations. Typically installed in the side walls of boxes to preserve IP.

  • External dimensions: 160x160x69 mm
  • Installation size: 125х125mm
  • Volume flow: 100 (140) m3/h
  • Noise level: 42 (46) dB(A)
  • Bearing: Ball bearing
  • Operating voltage: 220-230VAC, 50/60Hz
  • Current consumption: 0.14(0.13) A
  • Nominal power: 26 (23) W
  • Electrical connection: Lead wire
  • Flow direction: From outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection level: IP54
  • Plastic material: UL94 V0 ABS Flame retardant
  • Seal: Polyurethane seal
  • Color: RAL 7035 (RAL 7032 on request)
  • Weight: 0.68 kg
  • Mounting: Fixed Clip-on

To ensure automatic air exchange and temperature control with this fan, you will need either a simple bimetallic thermostat or a more advanced temperature controller, both devices can be purchased on our website.
