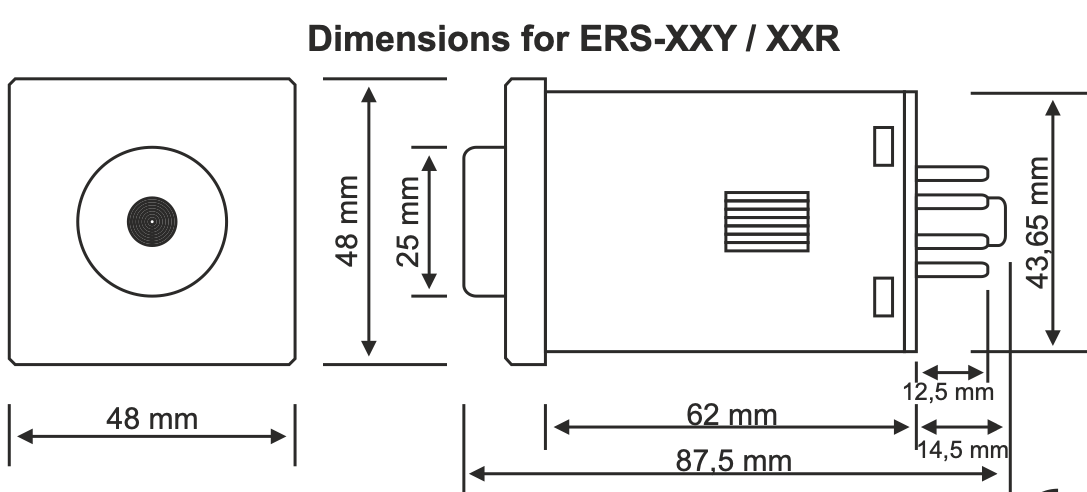

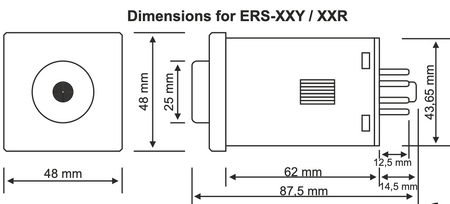

Delay time relay 230 V/AC 8-pin, 48 x 48mm - 3 / 12 / 30 / 60 sec/min
Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email
Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company
Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.
On invoice - this payment option is available to partners who have entered into a framework agreement with our company.
If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.
The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.
In the event of a complaint, no fee is charged for returning goods.

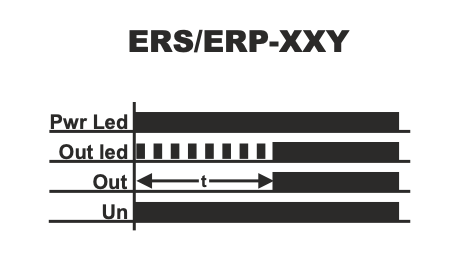

Delay relay (ON-DELAY) timer built-in monofunctional 230 V/AC with 1 changeover contact, socket version, 8-pin, 1/16DIN (48 x 48mm) (TENSE)

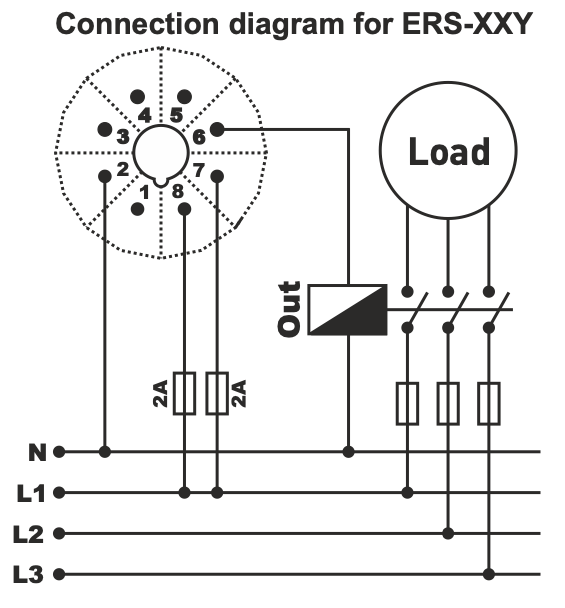

Delay relays are used to gradually turn on loads: electric boilers, ovens, direct-acting heating elements, etc., thereby preventing power surges in the network and fuses from tripping due to high impulse current.
It can also be used to coordinate the time to turn on multiple devices in machines, appliances, or other devices.
Time interval:

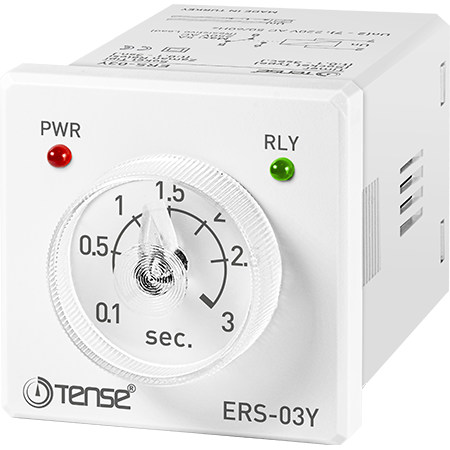

ERS-03Y - 0-3 sec
ERS-12Y - 0-12 sec
ERS-30Y - 0-30 sec

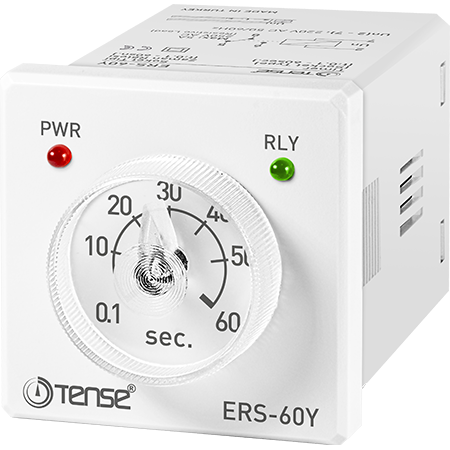

ERS-60Y - 0-60 sec
ERS-03DY - 0-3 minutes
ERS-12DY - 0-12 minutes

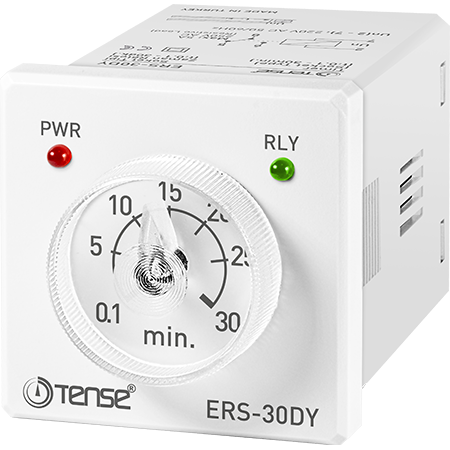

ERS-30DY - 0-30 minutes

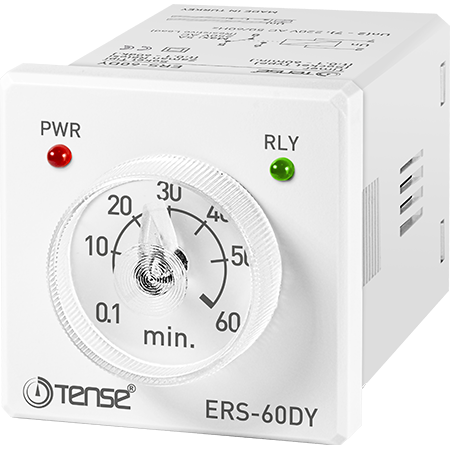

ERS-60DY - 0-60 minutes
