Delay time relay / ON-DELAY 24 V/AC/DC, 230 V/AC 3 / 12 / 30 / 60 sec/min

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

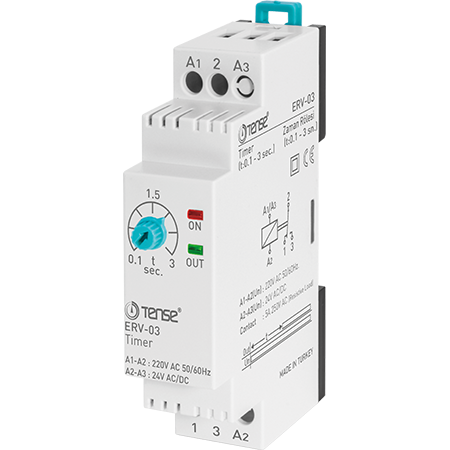

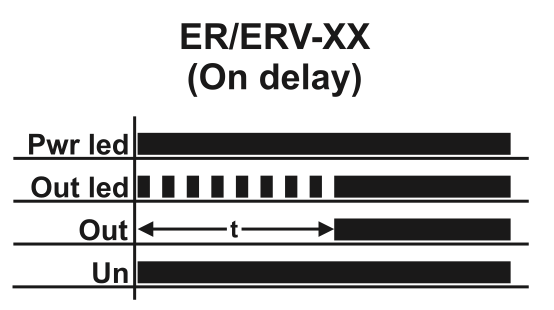

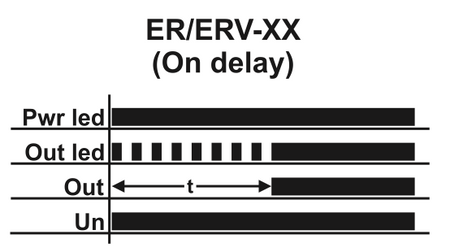

ON-DELAY/ Delay / time relay monofunctional with delayed pull-up 24 V/DC, 24 V/AC, 230 V/AC with 1 changeover contact.

Delay relays are used to gradually switch on loads: electric boilers, ovens, direct-acting heating elements, etc., thereby preventing power surges in the network and fuses from tripping due to large impulse currents.

It can also be used to coordinate the turn-on time of multiple devices in machines, appliances or other devices.

Time interval:

ERV-03 - 0-3 sec

ERV-12 - 0-12 sec

ERV-30 - 0-30 sec

ERV-60 - 0-60 sec

ERV-03D - 0-3 minutes

ERV-12D - 0-12 minutes

ERV-30D - 0-30 minutes

ERV-60D - 0-60 minutes

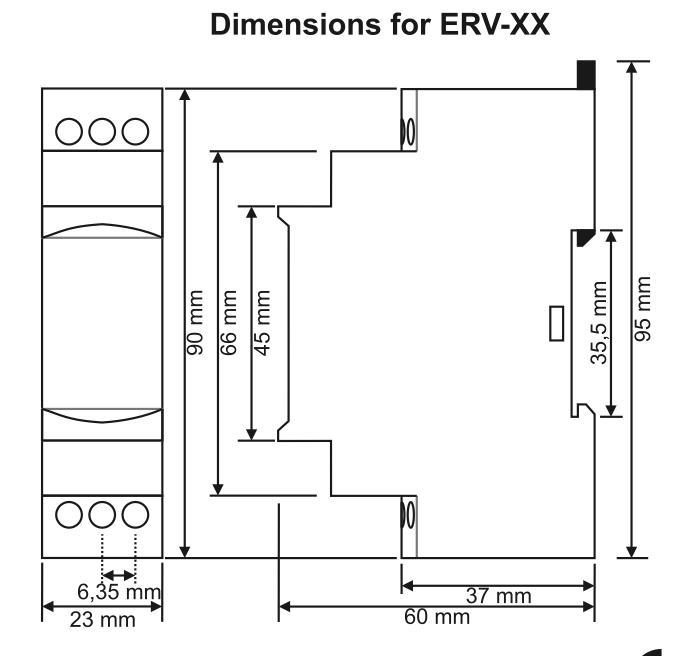

The time relay is mounted on a standard 35mm DIN rail
