Cabinet air conditioner / Cooler 1600W, PAD1600.01, Plastim

In stock - 8 items available
SKU: PAD1600.01
Common price 22 424 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

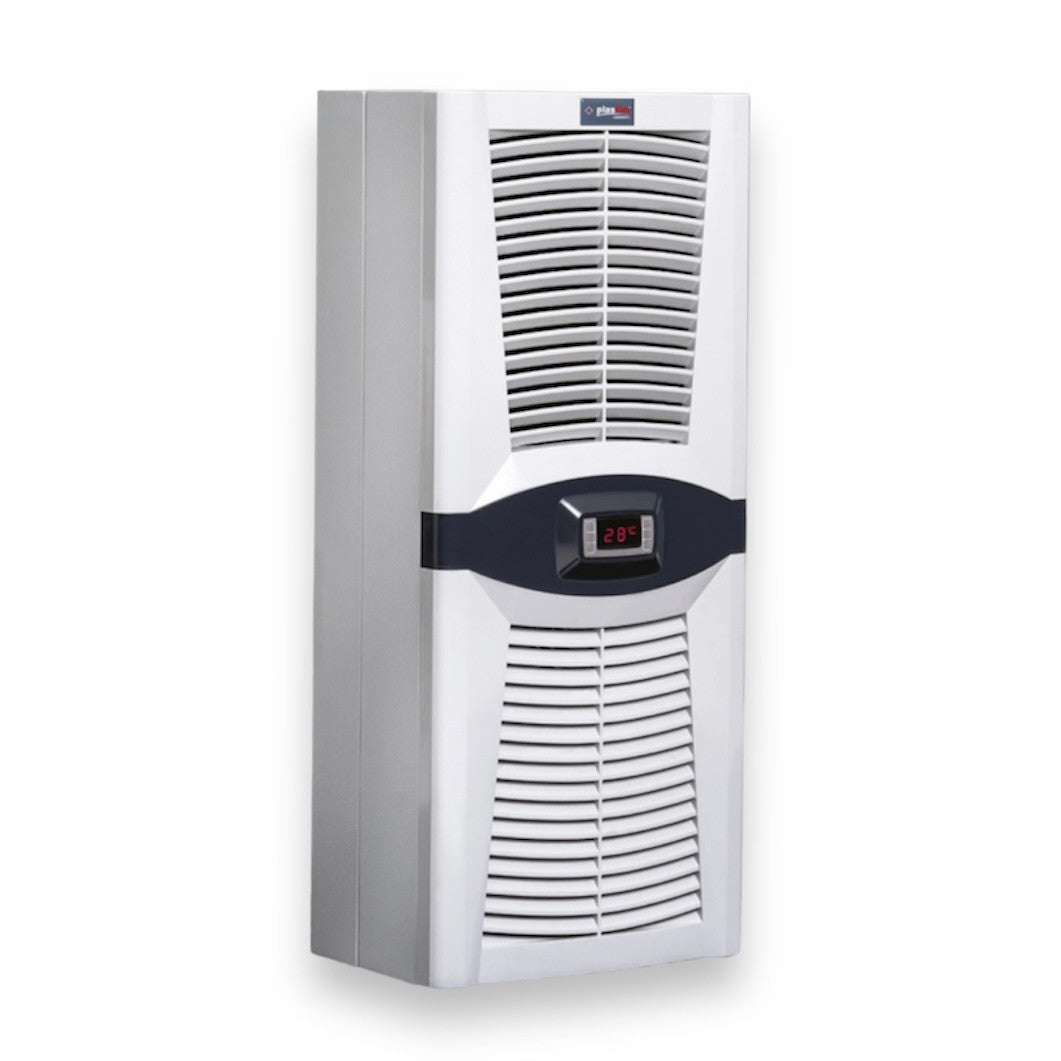

Cabinet air conditioner / cooler 1600 watts (Design Series) for cabinets and automation panels for side or wall mounting.

Cabinet air conditioning system PAD1600.01 (PLASTIM) is equipped with a modern open-type rotary compressor from the HIGHLY company, Dixell thermostat, condenser evaporator and limit switch to control the opening of the cabinet door.

The delivery includes everything needed for installation of the cabinet air conditioning system - seals, drain pipes, mounting screws, power plug.

TECHNICAL DETAILS

PAD1600.01

Cooling capacity L35 / L35

1600W / 5500BTU

Operating voltage

230VAC

Frequency

50/60Hz

Starting current

8A

Operating current

3.2A

Fuse

10A

Power consumption

725W

Operating area

0-55°C

Thermostat factory setting

35°C

Difference

4 °C

Max. Air volume Internal circuit

510 m³/h

Max. Air volume External circuit

510 m³/h

Type of coolant

R134a

Amount of coolant

600gr

Dimensions

980x430x270mm

Weight

45kg

Sound level

79dB

Protection level (Internal circuit)

IP54

Protection level (External circuit)

IP34

Paint

RAL7035

Compressor

HIGHLY/HITACHI

Compressor type

Rotary

Fans

EBMPAPST

Mounting method

Wall mounting
