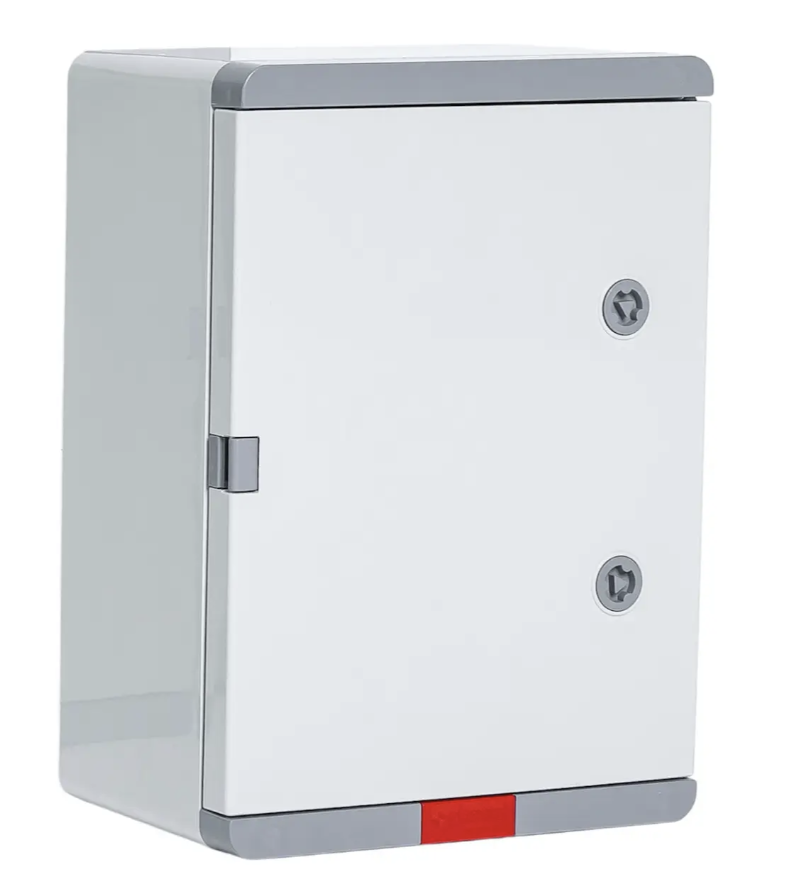

Shockproof sealed plastic housing with IP67 protection with mounting panel, Plastim (Turkey).
The plastic housing with IP67 protection has several important advantages, especially for use in harsh environments:
High protection against moisture and dust:
The IP67 rating means that the enclosure is completely protected against dust and can withstand short-term immersion in water up to 1 meter deep for 30 minutes, making it ideal for installation in damp or dusty environments - such as outdoors, in industrial areas or near watercourses.
Corrosion resistance:
Plastic is not subject to corrosion, unlike metal panels, which is especially valuable in aggressive environments - near the sea, in chemical plants or in enterprises with high humidity.
Simple and easy installation:
The plastic housing is much lighter than the corresponding metal housing, which simplifies transportation and installation, especially in hard-to-reach places.
Dielectric properties:
Plastic does not conduct electricity, which increases safety when working with electrical equipment and reduces the risk of short circuits.
UV resistance:
If a special ultraviolet plastic is used, the shielding retains its properties for a long time even when constantly exposed to sunlight.
Technical characteristics
Resistance to: chemicals, alkalis, oils, salts, etc.
Rated voltage: up to 690 V
Maximum current: up to 800 A
Working temperature: -35°C + 65°C
Material: HB ABS
Mounting plate: 1 mm galvanized steel
IP protection: IP67
IK protection: IK08
Color: RAL7035 gray
Examples of uses
Humid and dusty environments
Electrical shielding in car washes, swimming pools, water parks, fountains.
Mounting boxes for controlling irrigation systems and pumping stations.
Installations in food industries where wet cleaning and disinfection are carried out regularly.
Industrial installations
Protection of equipment in dusty workshops, concrete factories and metallurgical plants.
Installs shielding in areas with aggressive environments (e.g. chemical factories).
Marine and port infrastructure
Protection of electrical wiring on platforms, in ports and on ships.
Used in coastal areas with high humidity and exposure to salt air.
Construction sites
Temporary power distribution units for powering construction machinery during severe weather conditions.
Underground installations
