ONKA 10mm2 spring rail connection terminal on DIN rail 2-conductor blue, 1020047
Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email
Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company
Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.
On invoice - this payment option is available to partners who have entered into a framework agreement with our company.
If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.
The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.
In the event of a complaint, no fee is charged for returning goods.

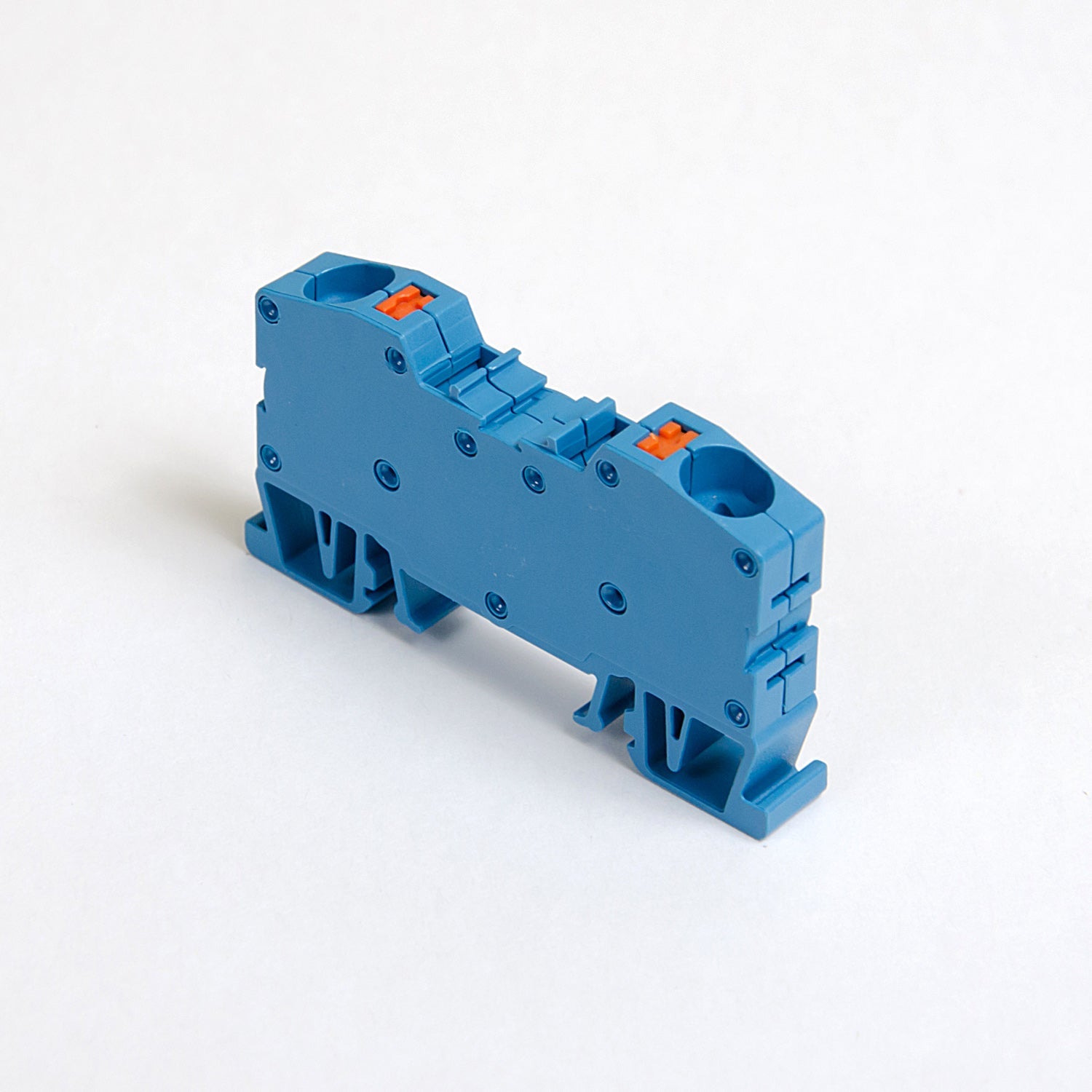

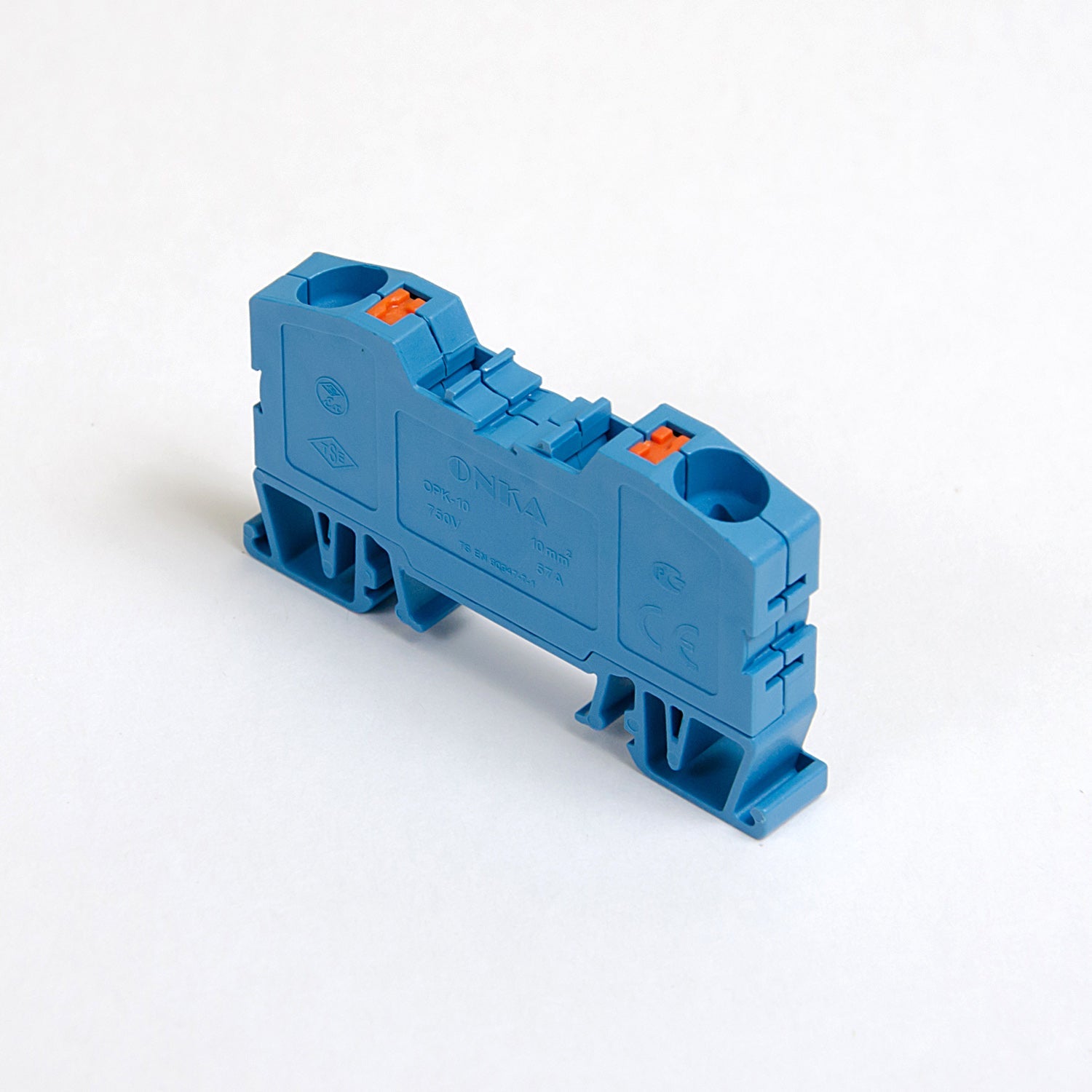

Spring-loaded connection block / Terminal on DIN rail 2-conductor, push-in contact, blue, ONKA, made in Turkey.
The connection / terminal ONKA is a reliable solution for anyone looking for functional and durable components in electrical installations.
Made of high-quality materials, the connection guarantees long-lasting use and resistance to mechanical damage.
Technical parameters
Cross-section of connected single-wire conductor up to: 10mm2
Color: blue
Insulation material for main housing: polyamide (PA6.6)
Material for contact / bridge: Stainless steel / copper
Connection mode: From above / upward
Cable tie length: 12mm
Type of electrical connection: Spring clamp / Push-in contact
Nominal voltage: 750V
Nominal current: 57A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
