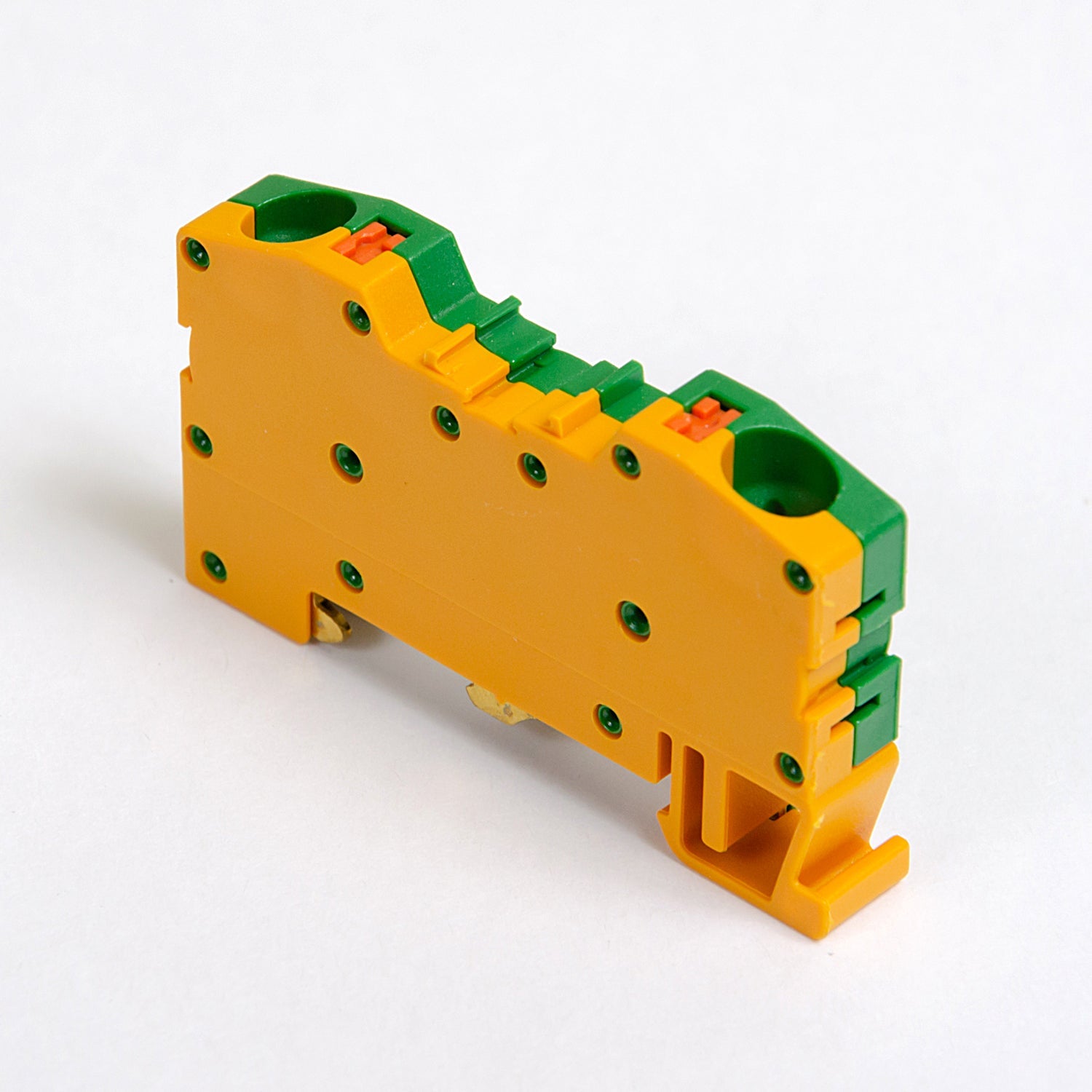

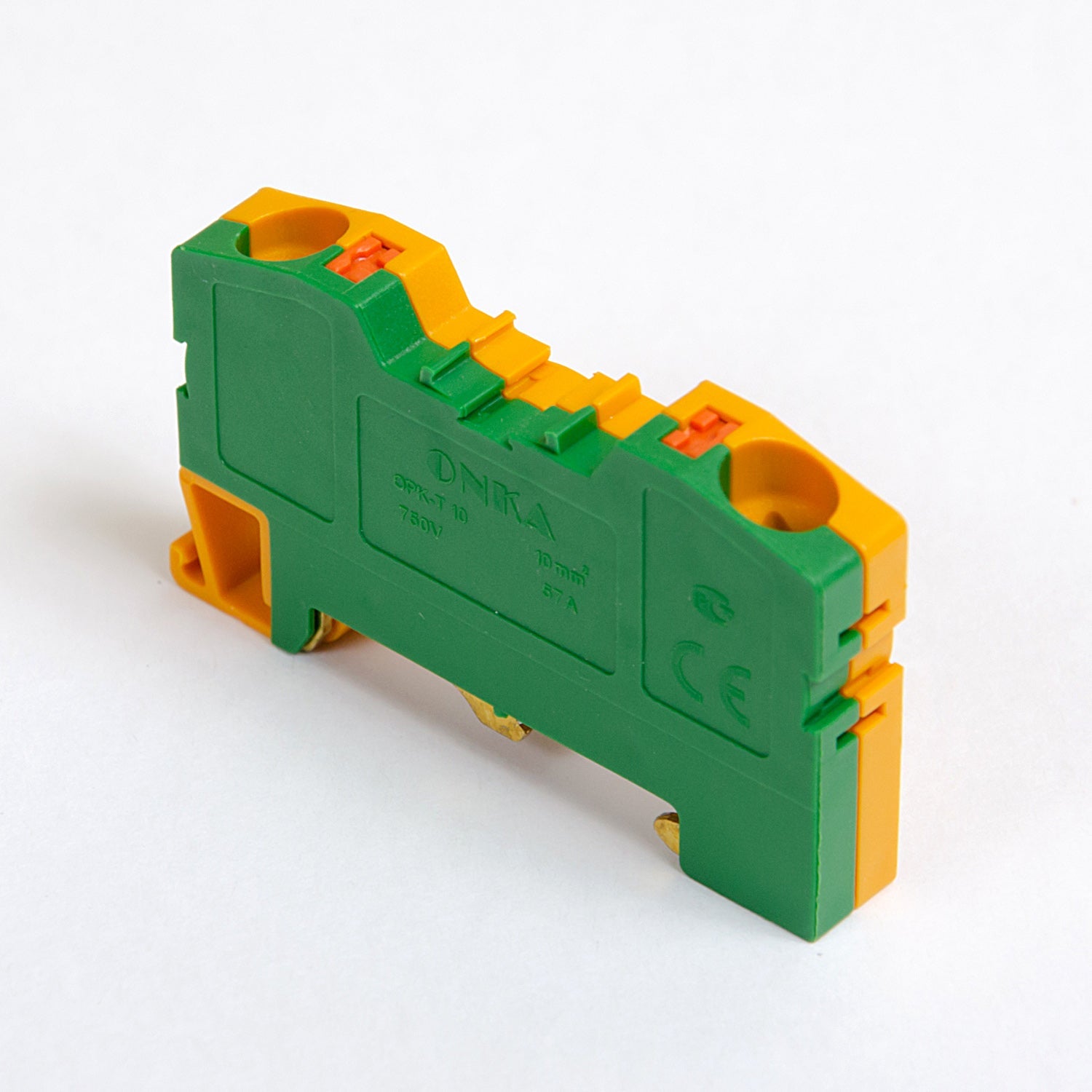

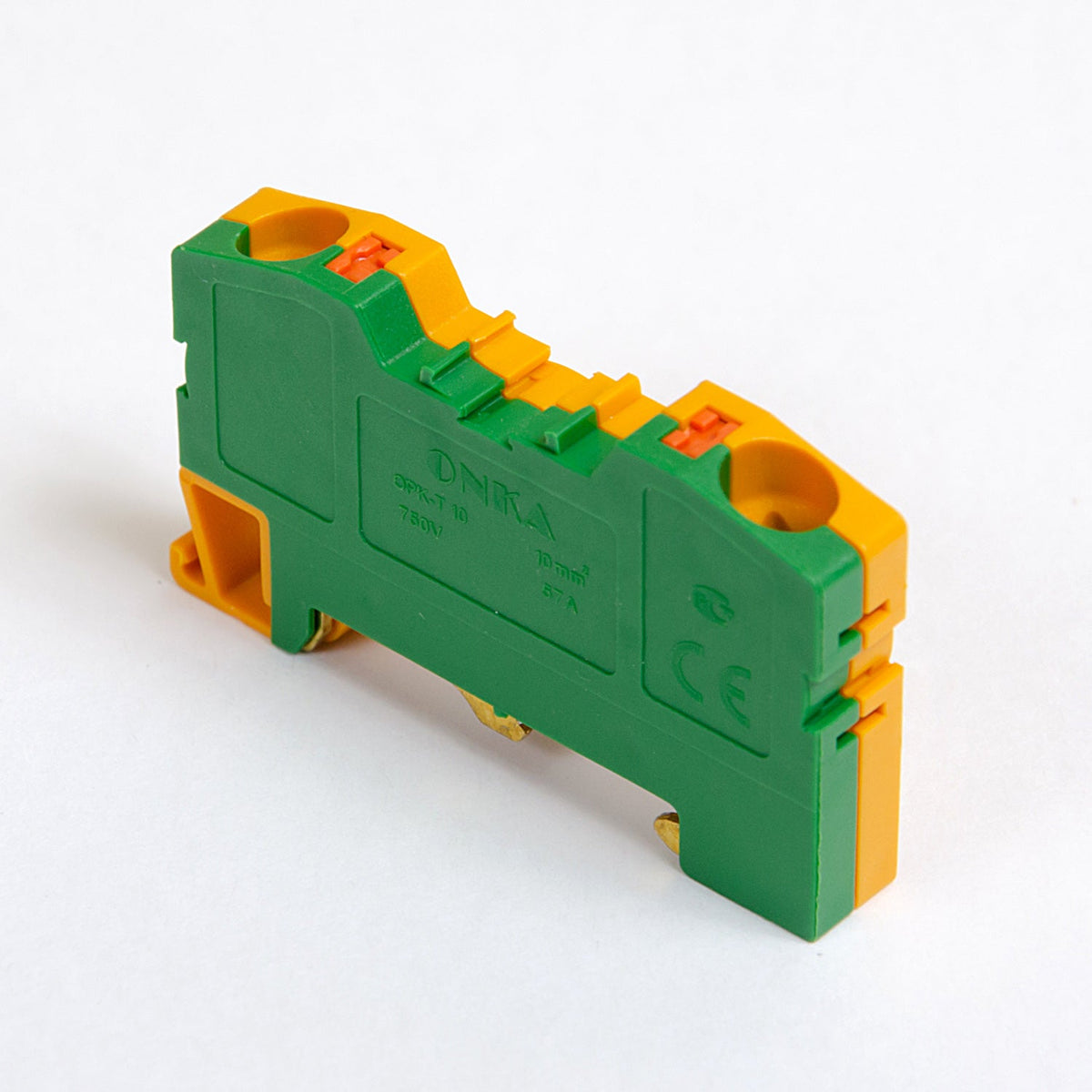

PE spring-loaded connection rail coupling / Terminal on DIN rail 2-wire green-yellow, ONKA, made in Turkey

Compact installation couplings from ONKA offer great possibilities to connect different conductors with different cross-sections. The transparent housing allows for easy control of the correct arrangement of the conductors. Original quick-lock from ONKA provides comfort during installation and 100% reliability in the connection.

Technical parameters

Cross-section of connected single-core conductor up to: 10mm2
Color: Green-yellow (masking)
Insulation material for main housing: polyamide (PA6.6)
Material for contact / bridge: CK45 steel / copper
Connection mode: From above / upward
Cable tie length: 12mm
Type of electrical connection: spring clamp
Nominal voltage: 750V
Operating temperature range: -40°C ... 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
