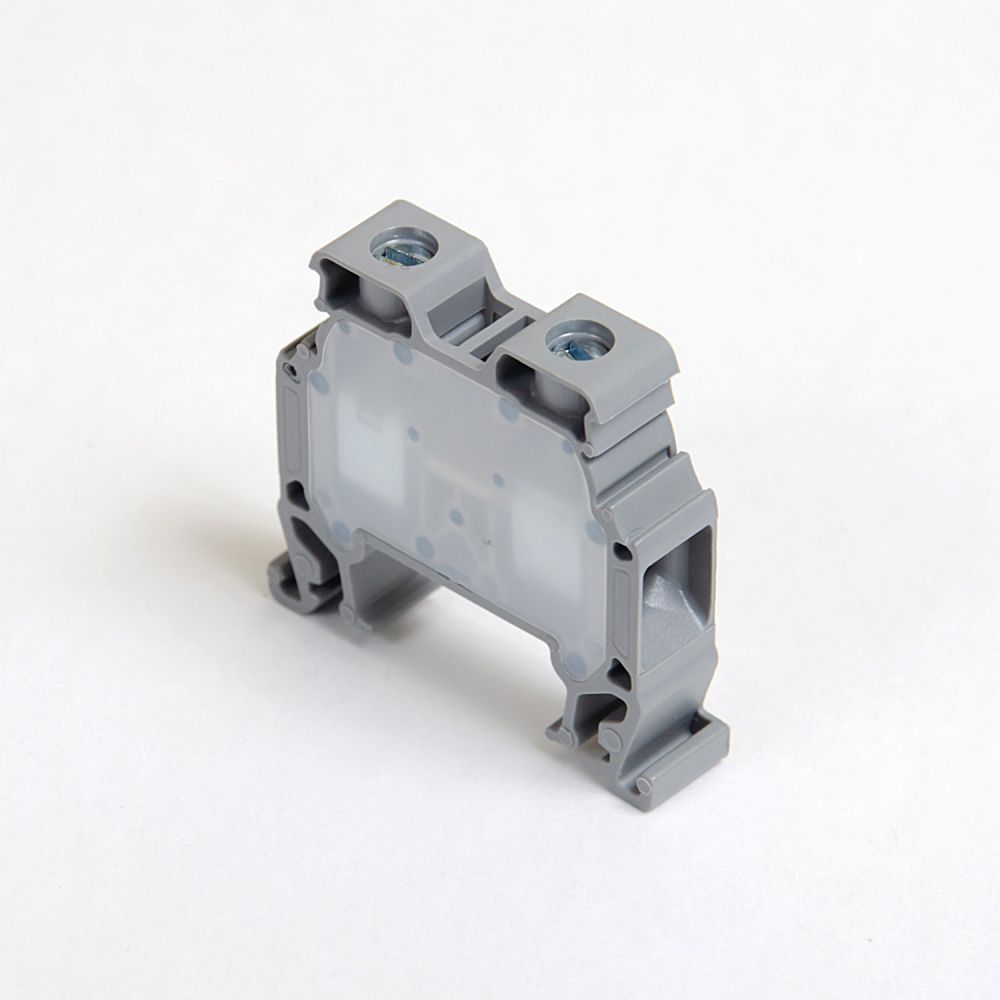

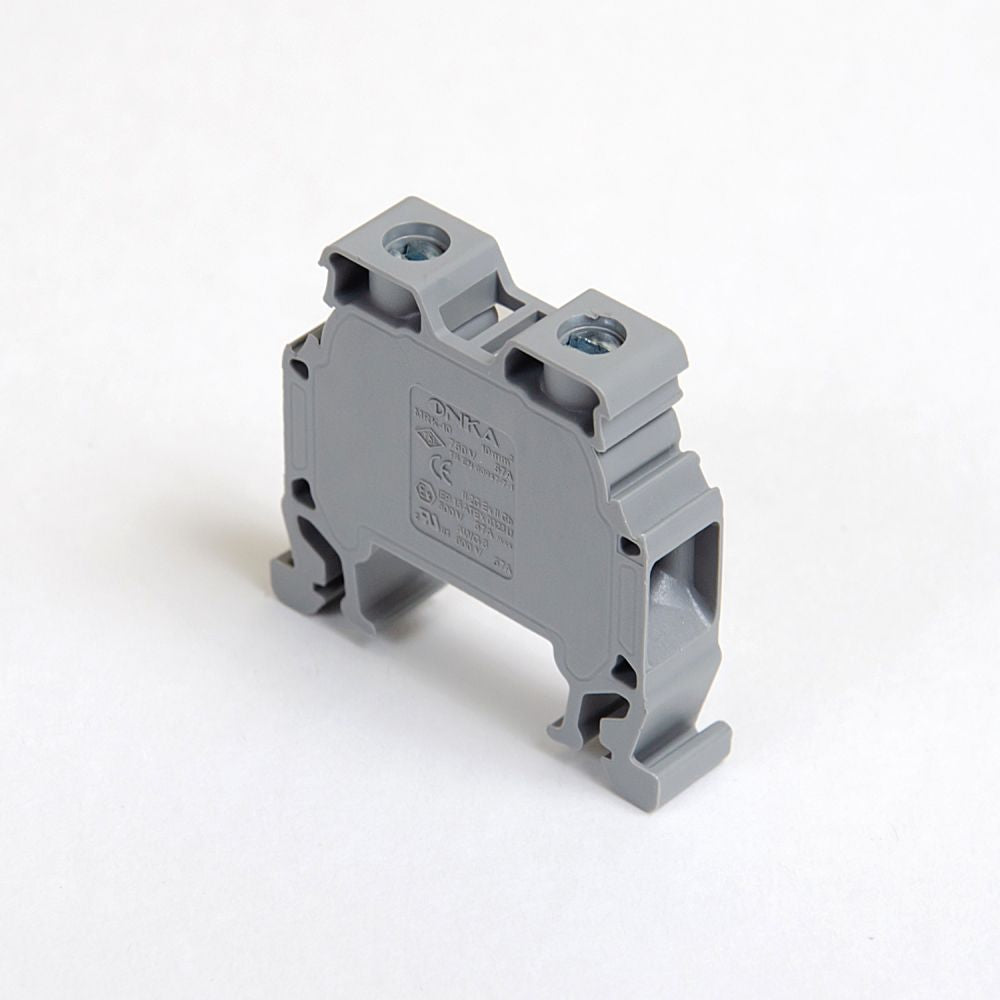

Threaded connection rail connection / Terminal on DIN rail 2-wire gray, ONKA, made in Turkey

Compact installation connectors from ONKA offer great possibilities to connect different conductors with different cross-sections. The transparent housing allows for easy control of the correct arrangement of the conductors. Original quick-lock from ONKA provides comfort during installation and 100% reliability in the connection.

Technical parameters

Cross-section of connected single-core conductor up to: 12mm2
Color: gray
Insulation material for main housing: polyamide (PA6.6)
Material for contact / bridge: CK45 Steel / copper
Tightening torque: 0.8 Nm
Connection mode: Side / Side
Cable tie length: 10mm
Type of electrical connection: Screw terminal
Nominal voltage: 750V
Nominal current: 57A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
