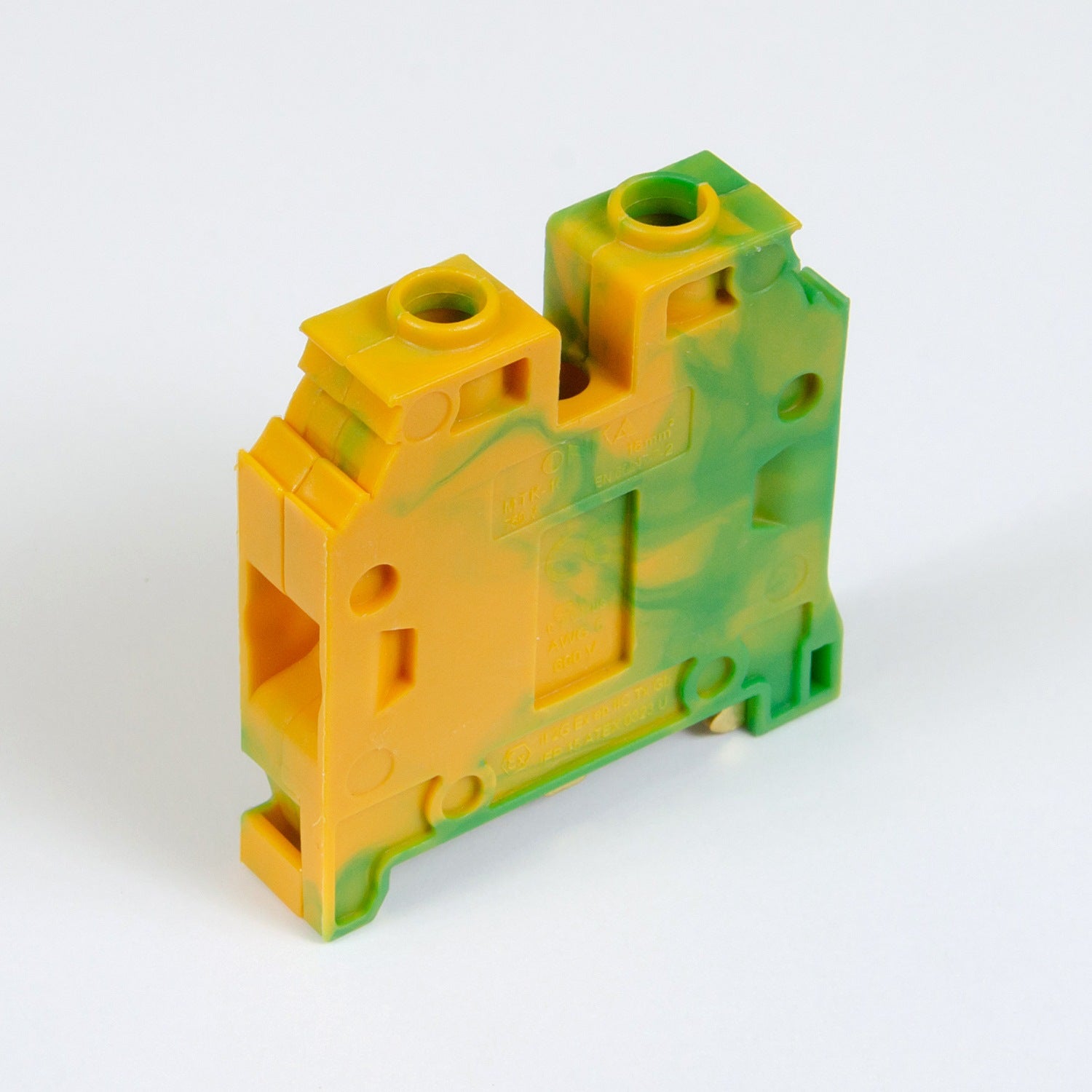

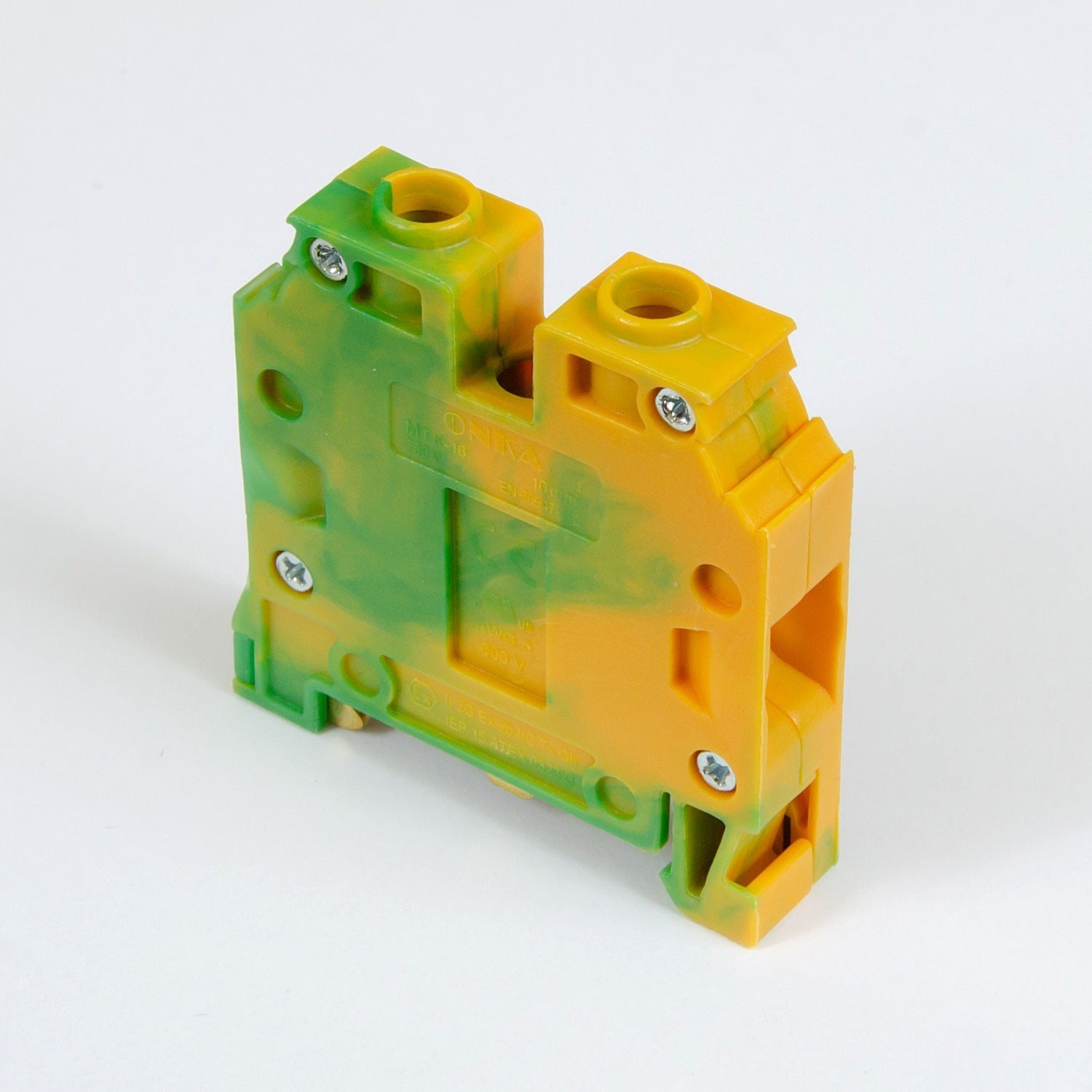

PE threaded connection rail coupling / Terminal on DIN rail 2-conductor green-yellow, ONKA, made in Turkey

Compact installation couplings from ONKA offer great possibilities to connect different conductors with different cross-sections. The transparent housing allows for easy control of correct conductor arrangement. Original quick couplings from ONKA provide comfort during installation and 100% reliability in the connection.

Technical parameters

Cross-section of connected single-core conductor up to: 16mm2
Color: Green-yellow (masking)
Insulation material for main housing: polyamide (PA6.6)
Material for contact / bridge: CK45 Steel / copper
Tightening torque: 1.1 Nm
Connection mode: Side / Side
Cable tie length: 16mm
Type of electrical connection: Screw terminal
Nominal voltage: 750V
Operating temperature range: -40°C ... 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
