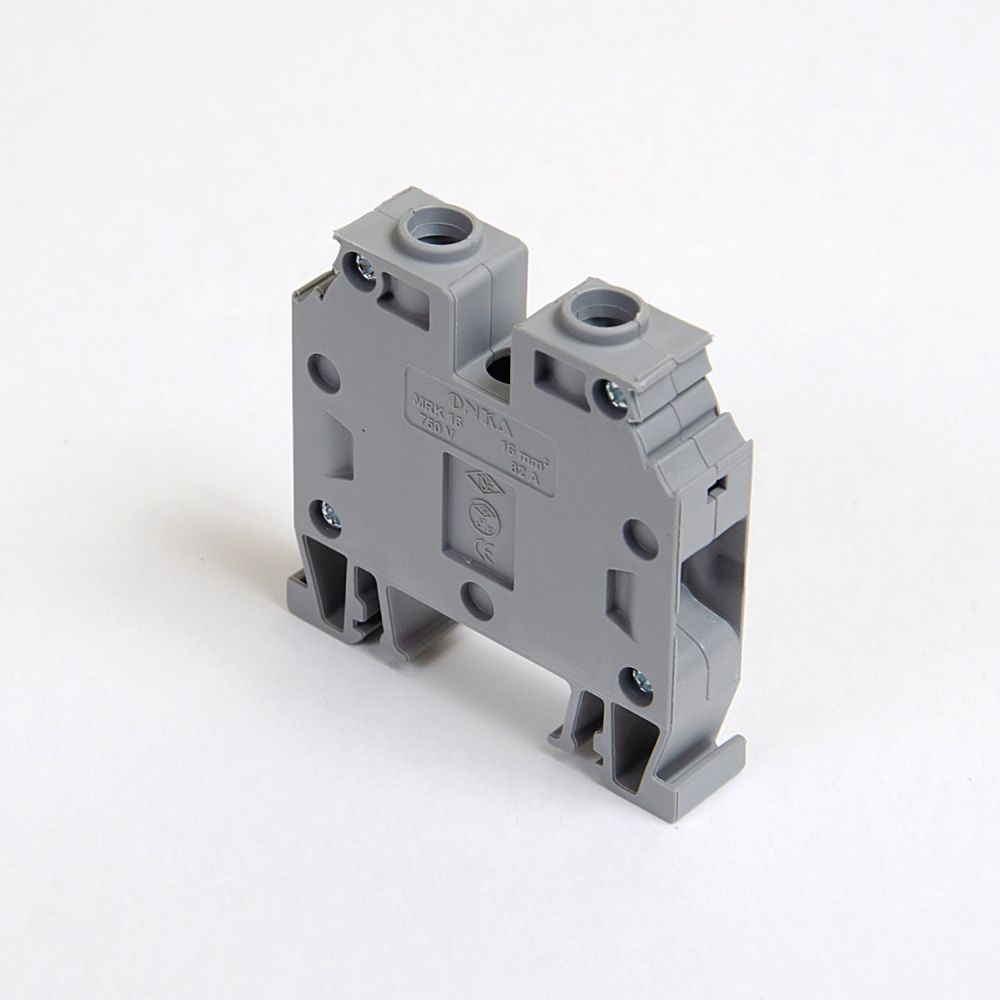

Threaded connection rail connection / Terminal on DIN rail 2-wire gray, ONKA, made in Turkey

Compact installation connectors from ONKA offer great possibilities to connect different conductors with different cross-sections. The transparent housing allows for easy control of correct conductor arrangement. Original quick-lock from ONKA provides comfort during installation and 100% reliability in the connection.

Technical parameters

Cross-section of connected single-core conductor up to: 16mm2
Color: gray
Insulation material for main housing: polyamide (PA6.6)
Material for contact / bridge: CK45 Steel / copper
Tightening torque: 2.0 Nm
Connection mode: Side / Side
Cable tie length: 18mm
Type of electrical connection: Screw terminal
Nominal voltage: 750V
Nominal current: 76A
Temperature range from: -40°C
Temperature range to: 140°C
Mounting method: DIN mounting rail 35 mm
Standard: EN-60947-7-1
