ONKA 2.5mm2 screw connection terminal block (fuse not included) gray, 1020223

In stock - 17 items available
SKU: 1020223
Common price 25 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

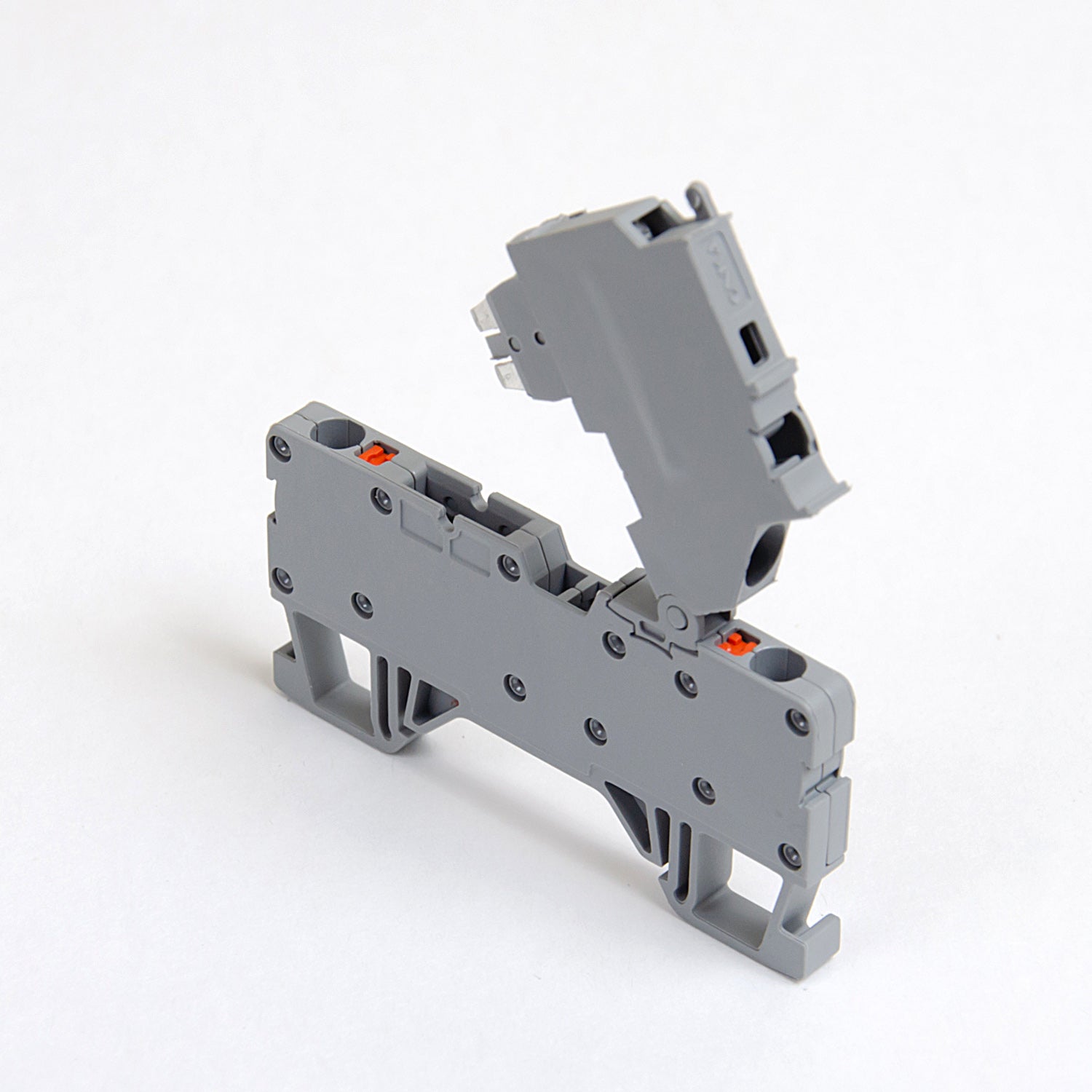

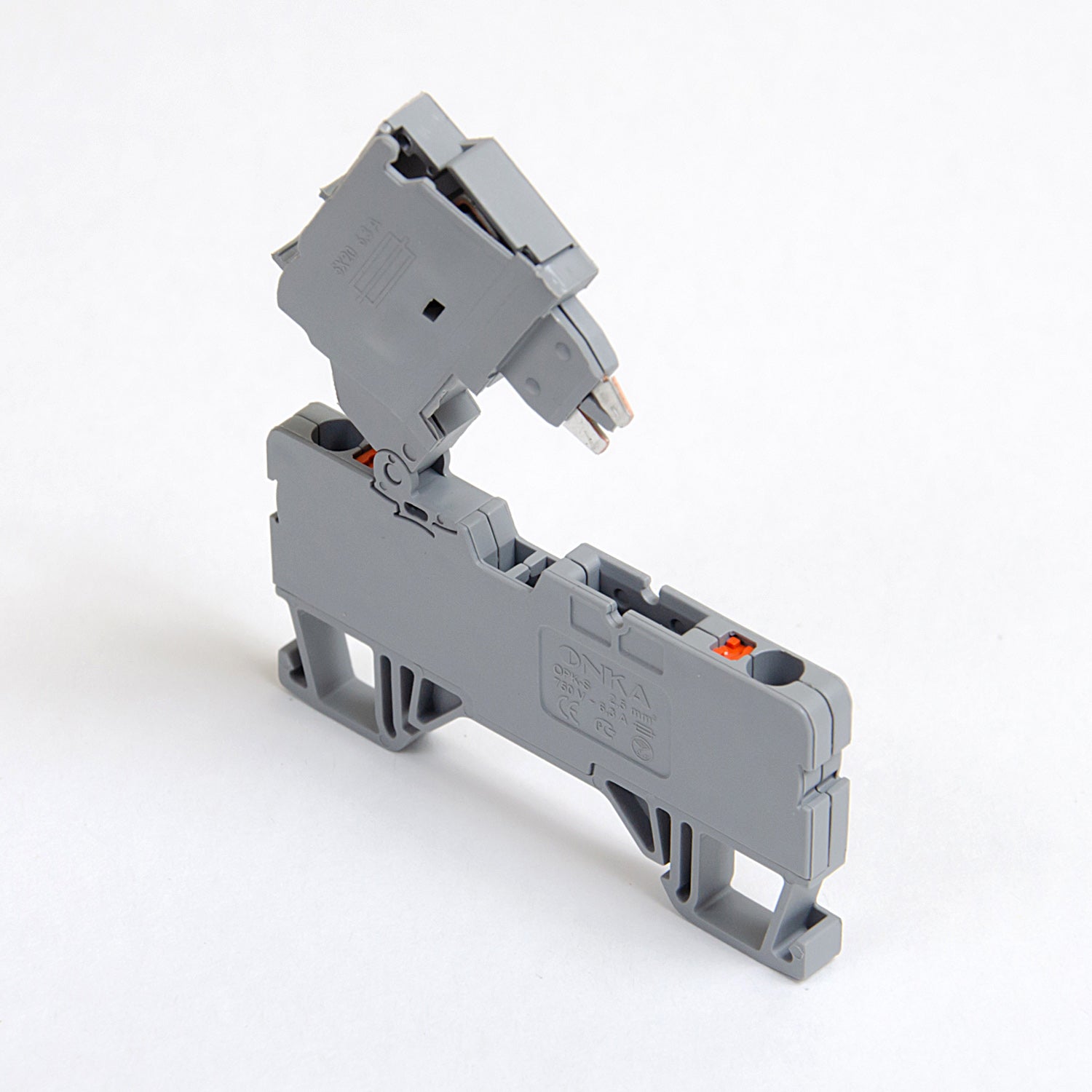

Spring screw connection terminal block (fuse not included) 2-wire, gray, ONKA, made in Turkey

Used to protect low current AC or DC circuits. A 5x20 mm fuse is installed in the terminal with a current setting of up to 6.3 A. The fuse is not included in the delivery and must be ordered separately.

Technical parameters

Cross-section of connected single conductor: 2.5 mm2
Color: gray
Insulation material for main housing: polyamide (PA6.6)
Material for contact / bridge: Stainless steel / copper
Connection position: From above / upward
Cable tie length: 9mm
Type of electrical connection: Screw terminal
Nominal voltage: 750V
Nominal current: 6.3A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
