ONKA 35mm2 PE Screw coupling rail terminal block on DIN rail 2-conductor gray, 1010225

In stock - 30 items available
SKU: 1010225
Common price 86 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

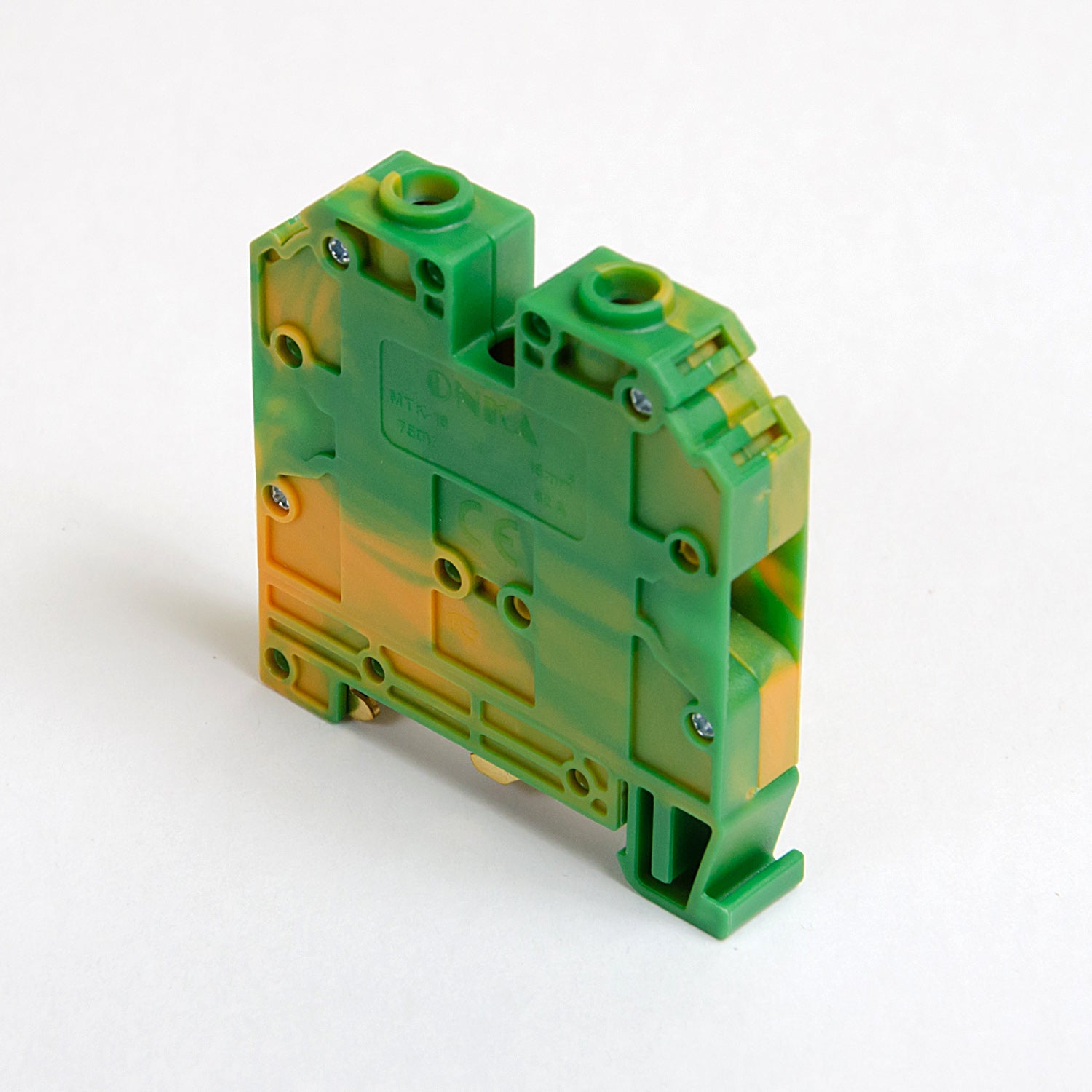

DIN rail 2-pole green-yellow, ONKA, made in Turkey

Compact installation connectors from ONKA offer great possibilities to connect different conductors with different cross-sections. The transparent housing allows for easy control of correct conductor arrangement. Original quick-lock from ONKA provides comfort during installation and 100% reliability in the connection.

Technical parameters

Cross-section of connected single-core conductor up to: 35mm2
Color: Green-yellow (camouflage)
Insulation material for main housing: polyamide (PA6.6)
Material for contact / bridge: CK45 Steel / copper
Tightening torque: 1.2 Nm
Connection mode: Side / Side
Cable tie length: 16mm
Type of electrical connection: Screw terminal
Nominal voltage: 750V
Operating temperature range: -40°C ... 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
