ONKA 35mm2 screw connection rail connection terminal on DIN rail 2-wire blue, 1010085

In stock - 85 items available
SKU: 1010085
Common price 23 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

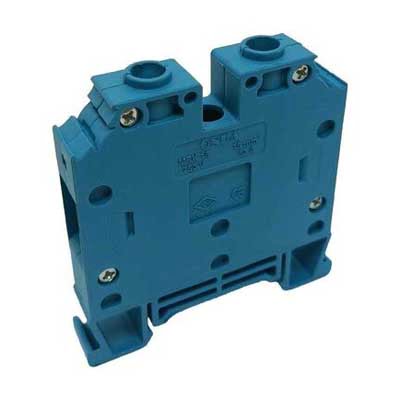

Threaded connection rail connection / Terminal on DIN rail 2-wire blue, ONKA, made in Turkey

Connection / terminal ONKA is a reliable solution for anyone looking for functional and durable components in electrical installations.
Made of high-quality materials, the connection guarantees long-lasting use and resistance to mechanical damage.

Technical parameters

Cross-section of connected single-core wire up to: 35mm2
Color: blue
Insulation material for main housing: polyamide (PA6.6)
Material for contact / bridge: CK45 Steel / copper
Tightening torque: 2.0 Nm
Connection mode: Side / Side
Cable tie length: 18mm
Type of electrical connection: Screw terminal
Nominal voltage: 750V
Nominal current: 125A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail 35 mm
Standard: EN-60947-7-1
