ONKA 4mm2, 2-storey spring rail terminal block for DIN rail 4-conductor gray, 1020406
Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email
Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company
Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.
On invoice - this payment option is available to partners who have entered into a framework agreement with our company.
If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.
The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.
In the event of a complaint, no fee is charged for returning goods.

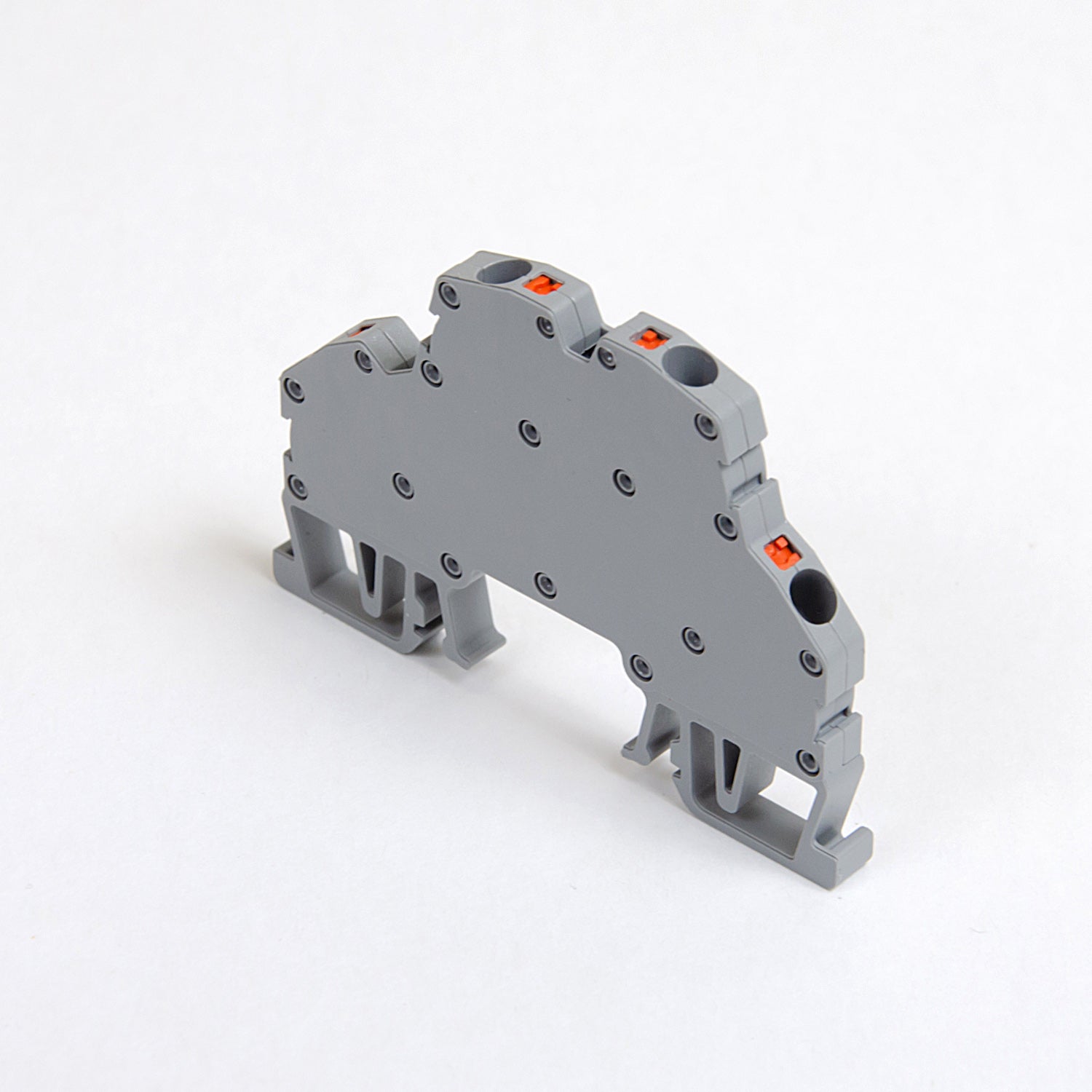

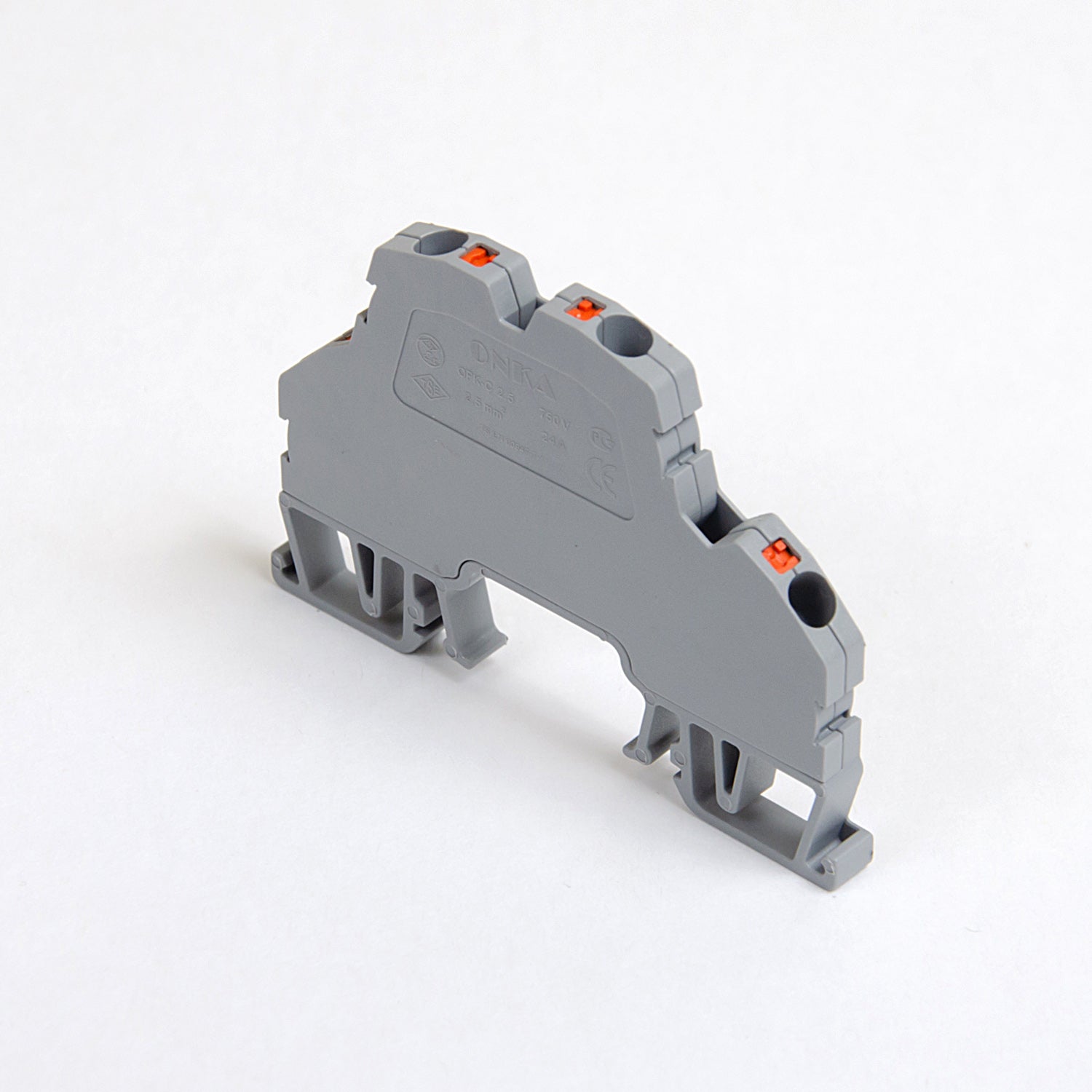

2-Storey Spring-Loaded Connection Rail Terminal / Terminal for DIN Rail 4-Wire Gray, ONKA, Made in Turkey
Compact installation connections from ONKA offer great possibilities to connect different conductors with varying cross-sections. The transparent housing allows for easy verification of correct conductor arrangement. Original quick connections from ONKA provide comfort during installation and 100% reliability in the connection.
Technical Parameters
Cross-section of connected single-strand conductor up to: 4mm2
Color: gray
Insulation material for main housing: polyamide (PA6.6)
Material for contact / bridge: CK45 steel / copper
Connection mode: From above / upward
Cable tie length: 9mm
Type of electrical connection: Spring clamp
Nominal voltage: 750V
Nominal current: 32A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail 35 mm
Standard: EN-60947-7-1
