ONKA 4mm2 spring rail connection terminal on DIN rail 2-wire blue, 1020027

In stock - 383 items available
SKU: 1020027
Common price 7 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

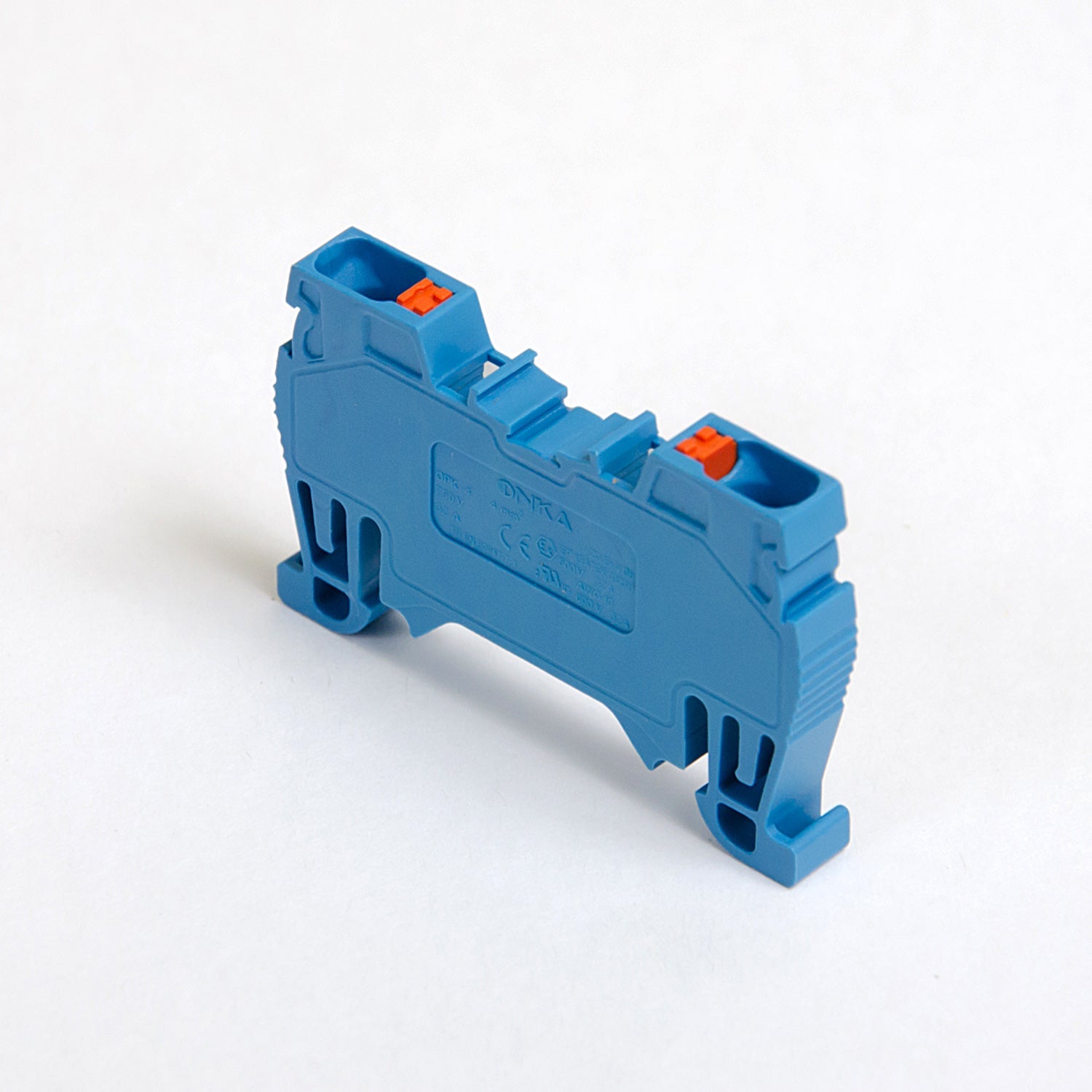

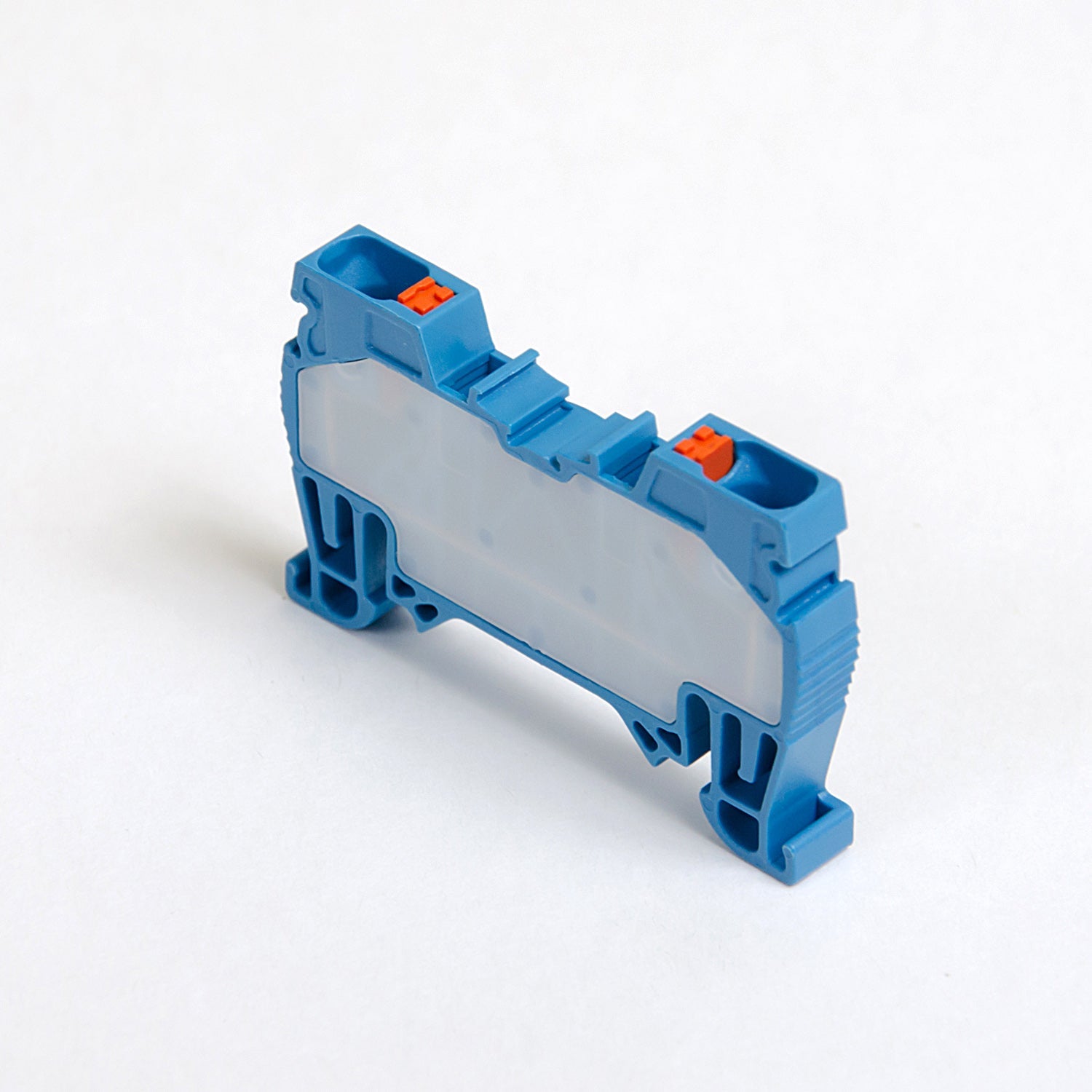

Spring-loaded connection terminal / Terminal on DIN rail 2-wire, push-in contact, blue, ONKA, made in Turkey.

The ONKA connection / terminal is a reliable solution for anyone looking for functional and durable components in electrical installations.
Made from high-quality materials, the terminal guarantees long-lasting use and resistance to mechanical damage.

Technical parameters

Cross-section of the connected single-conductor wire: 4mm2
Color: blue
Insulation material for the main housing: polyamide (PA6.6)
Material for contact / bridge: Stainless steel / copper
Connection mode: From above / upward
Cable tie length: 9mm
Type of electrical connection: Spring clamp / Push-in contact
Nominal voltage: 750V
Nominal current: 32A
Temperature range from: -40°C
Temperature range to: 140°C
Mounting method: DIN rail 35 mm
Standard: EN-60947-7-1
