ONKA 4mm2 spring rail connection terminal on DIN rail 2-wire gray, 1020024

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

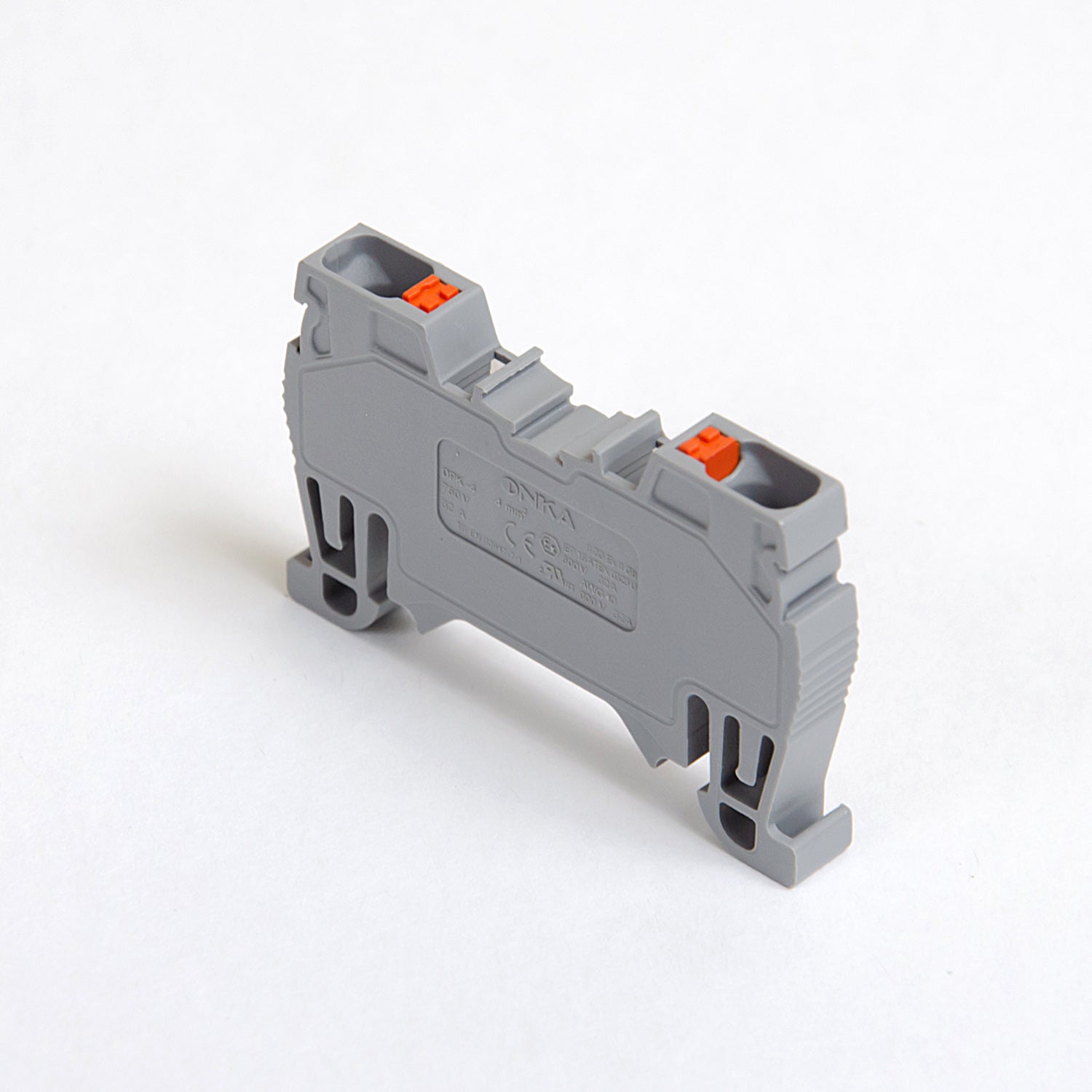

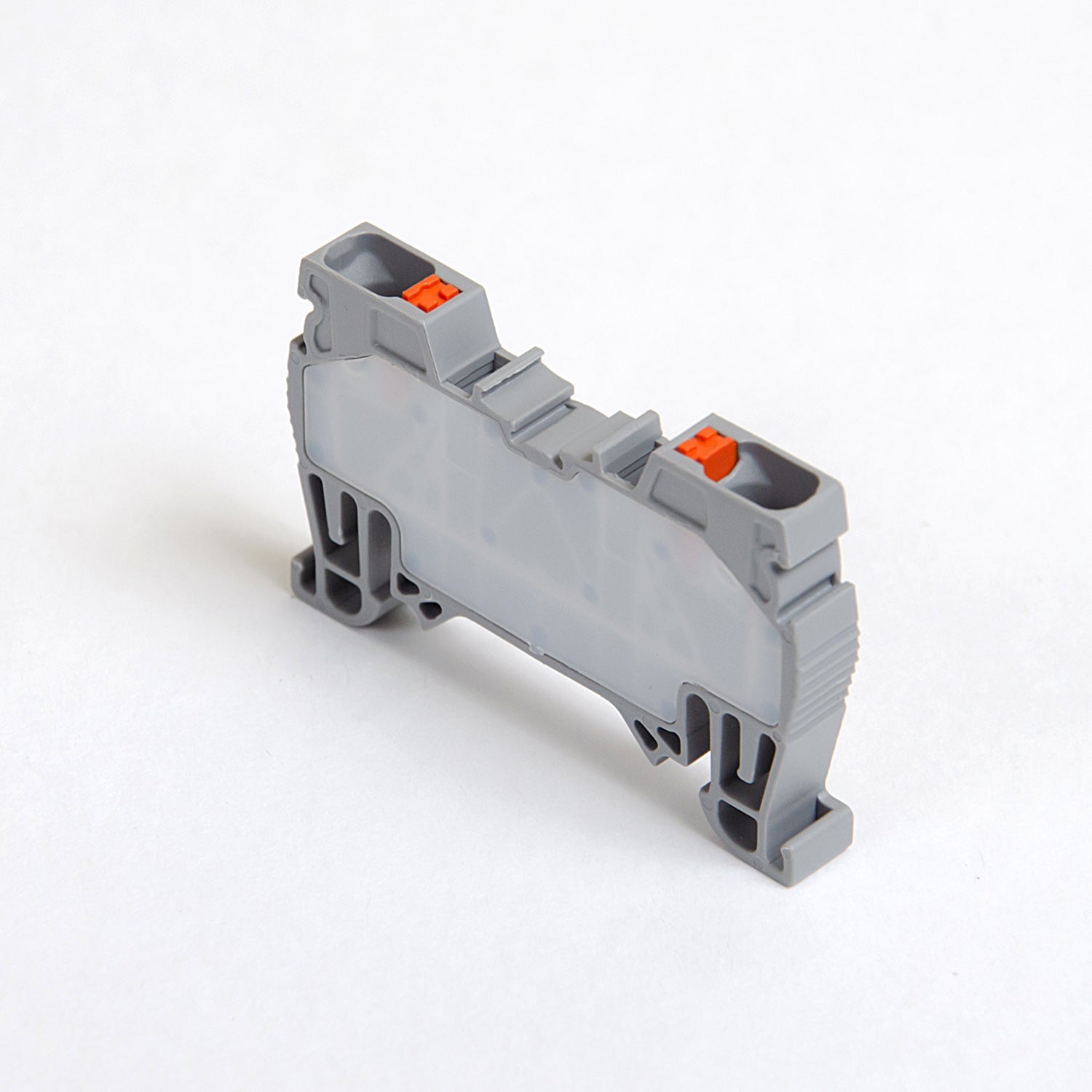

Spring-loaded connection rail coupling / Terminal on DIN rail 2-wire, push-in contact, gray, ONKA, made in Turkey

Compact installation couplings from ONKA offer great possibilities to connect different conductors with different cross-sections. The transparent housing allows for easy verification of correct conductor arrangement. Original quick-lock from ONKA provides comfort during installation and 100% reliability in the connection.

Technical parameters

Cross-section of connected single-core conductor up to: 4mm2
Color: gray
Insulation material for main housing: polyamide (PA6.6)
Material for contact / bridge: Stainless steel / copper
Connection mode: From above / upward
Cable tie length: 9mm
Type of electrical connection: Spring clamp / Push-in contact
Nominal voltage: 750V
Nominal current: 32A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
