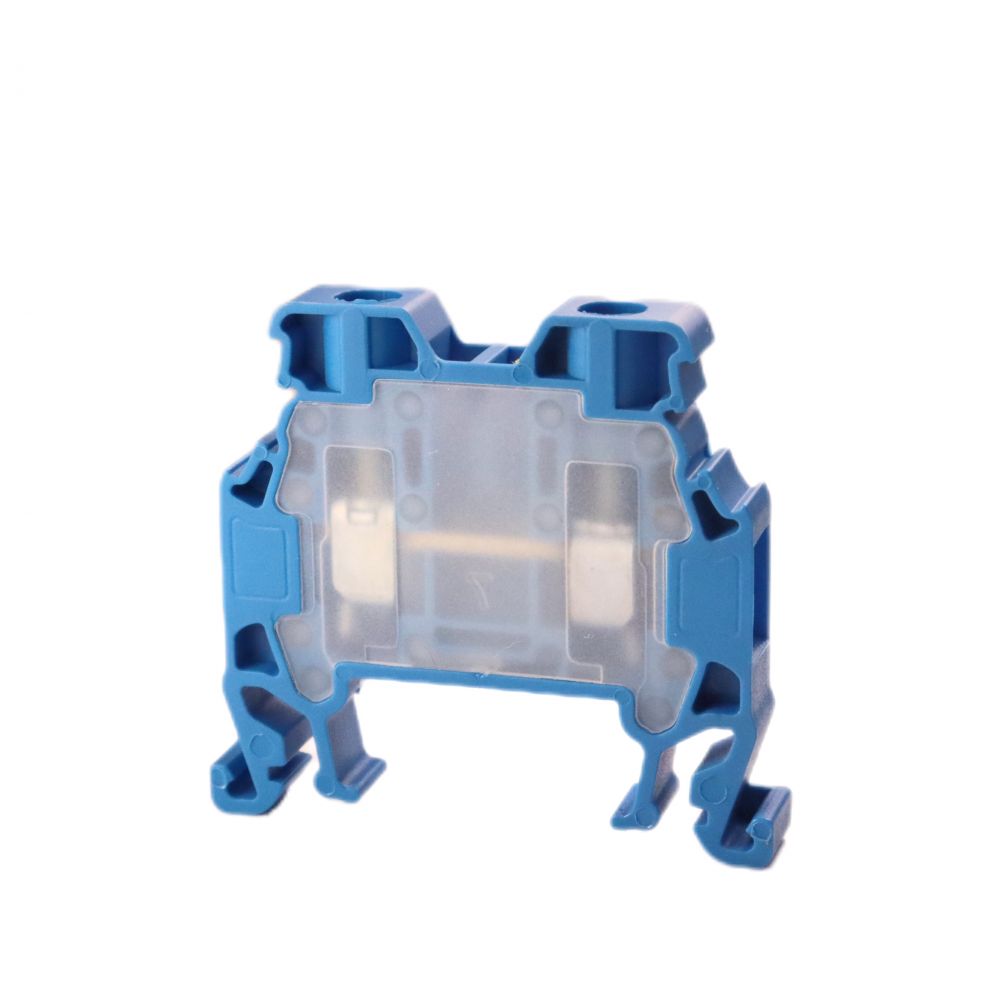

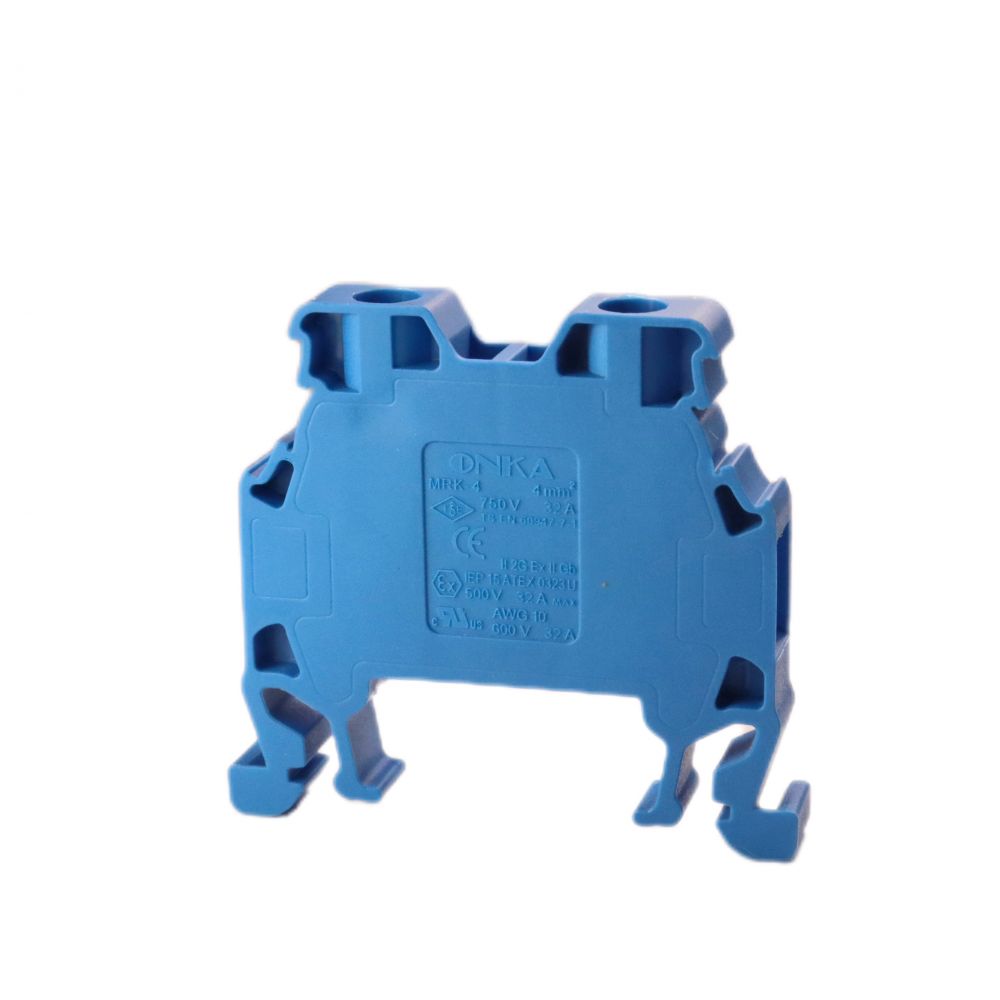

Threaded connection rail / Terminal on DIN rail 2-conductor blue, ONKA, made in Turkey

The connection / terminal ONKA is a reliable solution for anyone looking for functional and durable components in electrical installations.
Made from high-quality materials, the connection guarantees long-lasting use and resistance to mechanical damage.

Technical parameters

Cross-section of connected single-core wire: 4mm2
Color: blue
Insulation material for main housing: polyamide (PA6.6)
Contact / brake material: CK45 Steel / copper
Tightening torque: 0.5 Nm
Connection mode: Side / Side
Cable tie length: 10mm
Type of electrical connection: Screw terminal
Nominal voltage: 750V
Nominal current: 32A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
