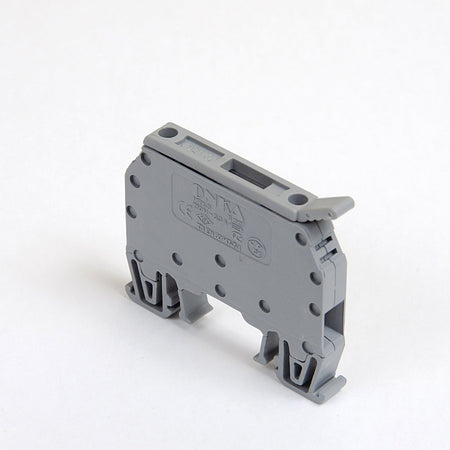

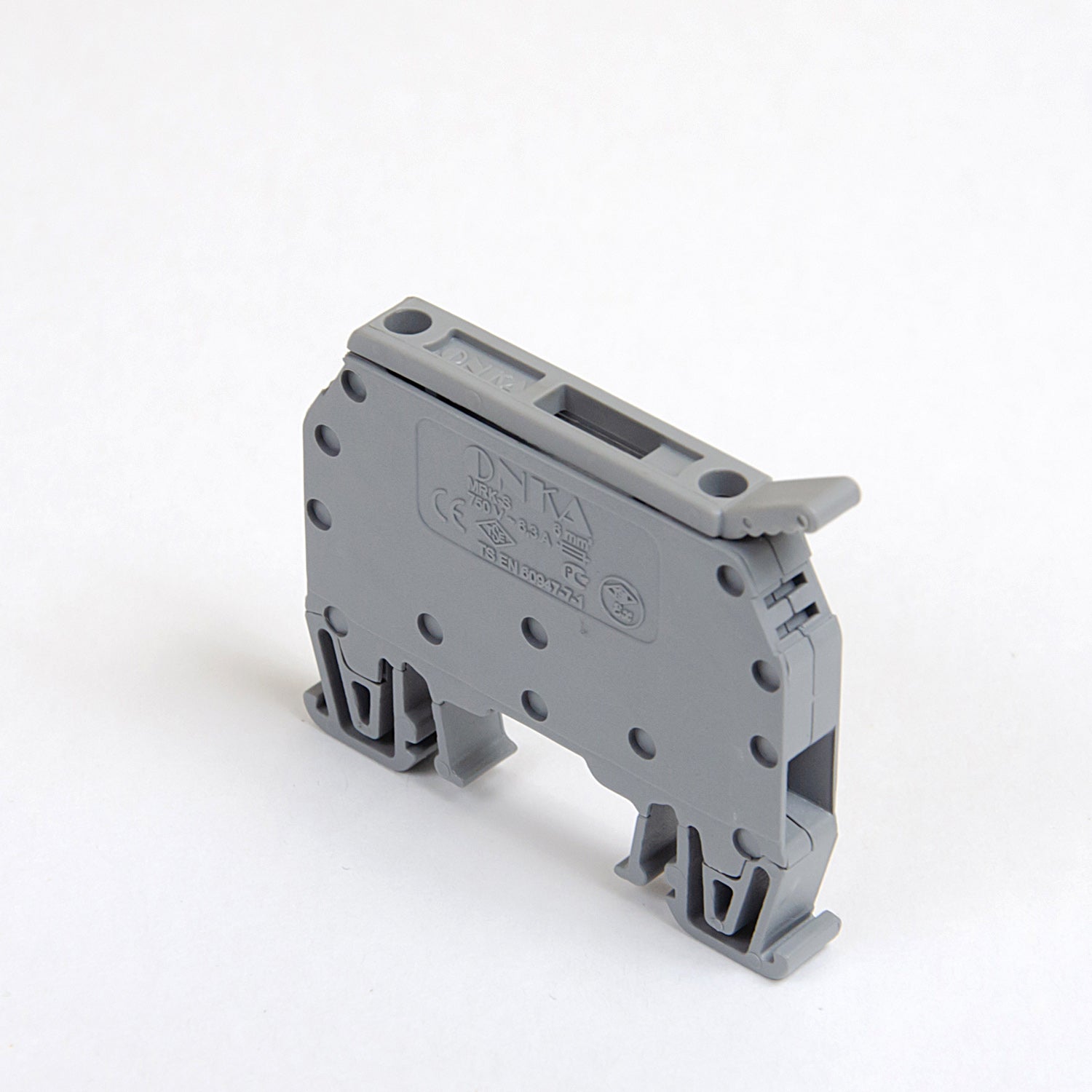

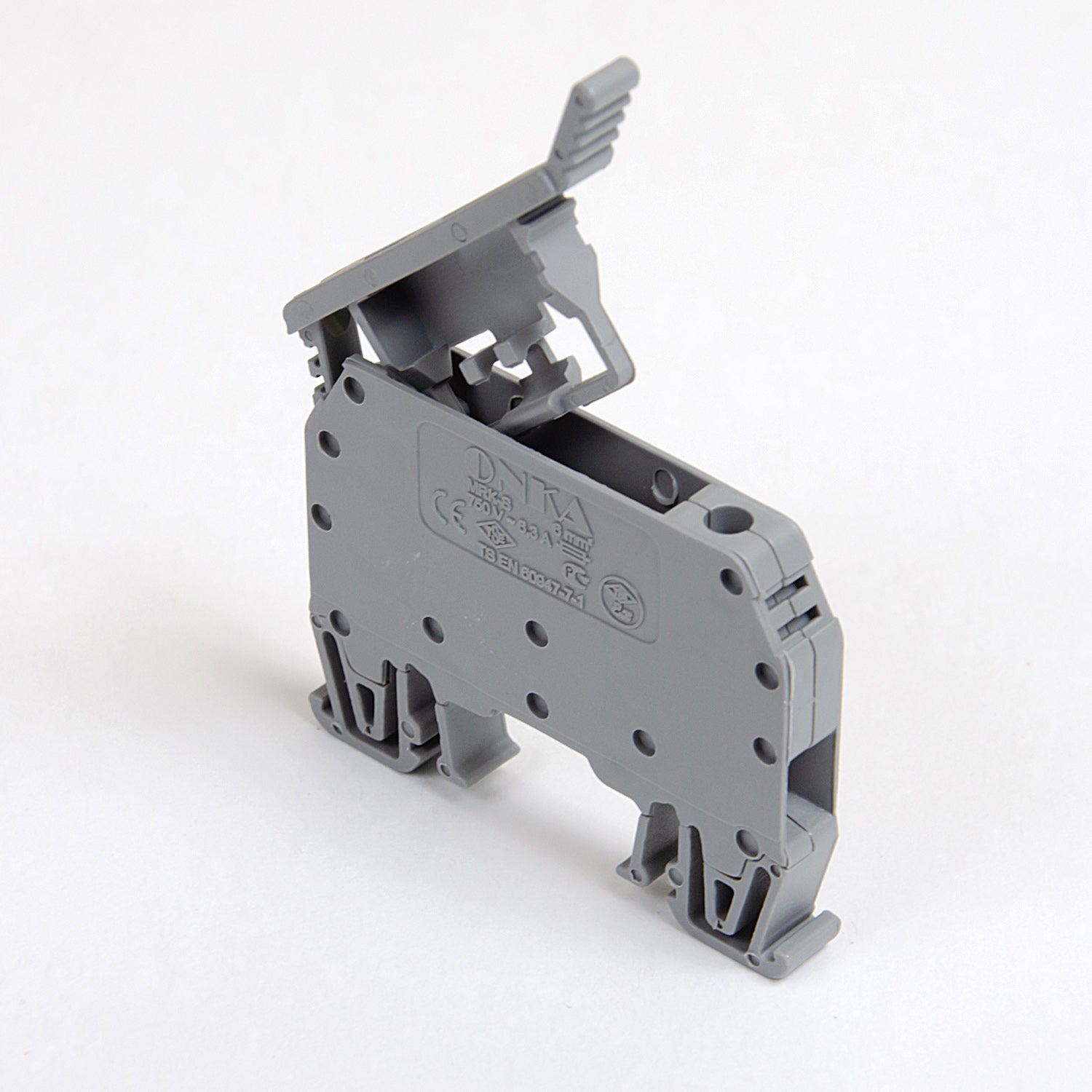

ONKA 6mm2 screw connection fuse block (fuse not included) gray, 1010241
Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email
Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company
Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.
On invoice - this payment option is available to partners who have entered into a framework agreement with our company.
If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.
The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.
In the event of a complaint, no fee is charged for returning goods.
Used to protect low current AC or DC circuits. A 5x20 mm fuse is installed in the terminal with a current setting of up to 6.3 A. The fuse is not included in the delivery and must be ordered separately.
Technical parameters
Cross-section of connected single-wire conductor up to: 6mm2
Color: gray
Insulation material for main housing: polyamide (PA6.6)
Material for contact / bridge: CK45 steel / copper
Tightening torque: 0.8 Nm
Connection position: Side / Side
Cable tie length: 10mm
Type of electrical connection: Screw terminal
Nominal voltage: 750V
Nominal current: 6.3A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
