ONKA 6mm2 Screw Connection Terminal Block with Test Terminal for DIN Rail 2-Wire Gray, 1010213

In stock - 100 items available
SKU: 1010213
Common price 59 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

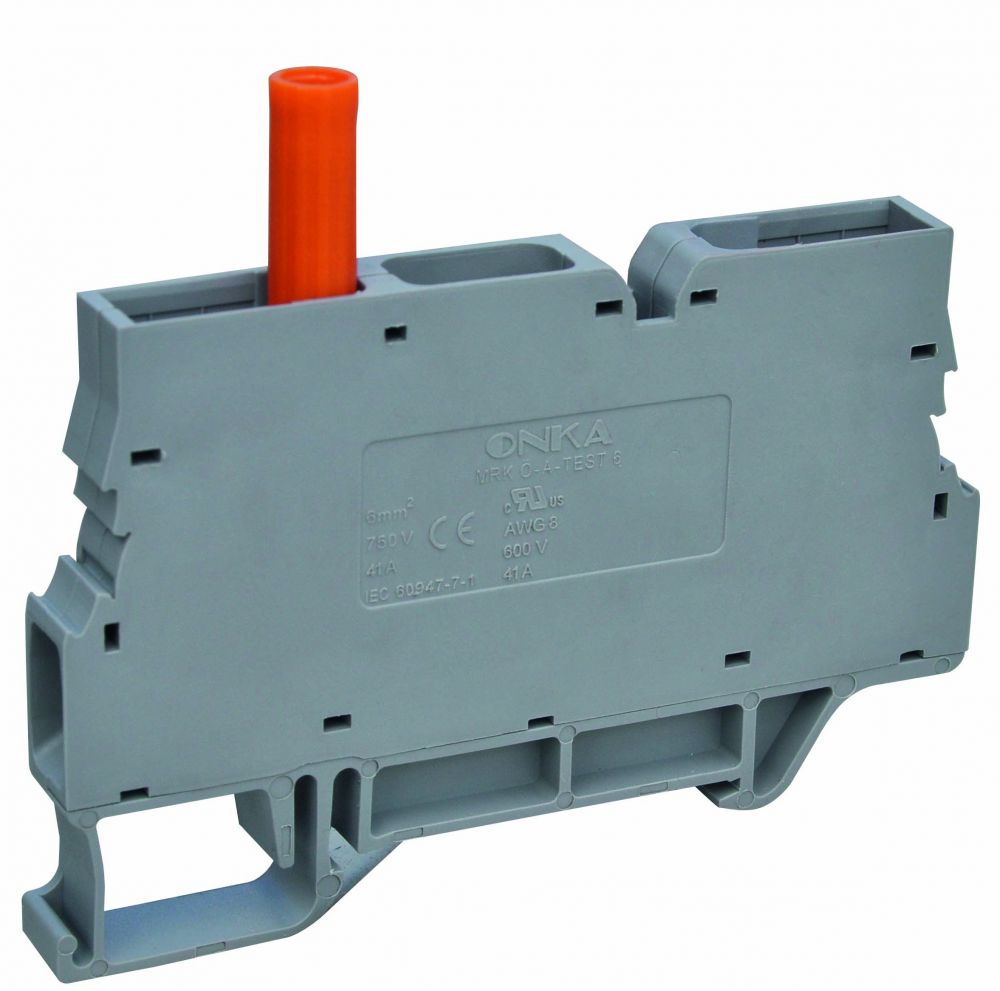

Measuring terminal with test contact screw connection terminal block / Terminal for DIN rail 2-conductor gray, ONKA, made in Turkey

Compact installation connections from ONKA offer great possibilities to connect different conductors with different cross-sections. The transparent housing allows for easy control of correct conductor arrangement. Original quick-lock from ONKA provides comfort during installation and 100% reliability in the connection.

Technical parameters

Cross-section of connected single-wire conductor up to: 6mm2
Color: gray
Insulation material for main housing: polyamide (PA6.6)
Material for contact / bridge: CK45 Steel / copper
Tightening torque: 0.8 Nm
Connection mode: Side / Side
Cable tie length: 12mm
Type of electrical connection: Screw terminal
Nominal voltage: 750V
Nominal current: 41A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail 35 mm
Standard: EN-60947-7-1
