ONKA 95mm2 M8 Screw coupling rail terminal block with protective cover, gray, 1030059

Sold
SKU: 1030059
Common price 220 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

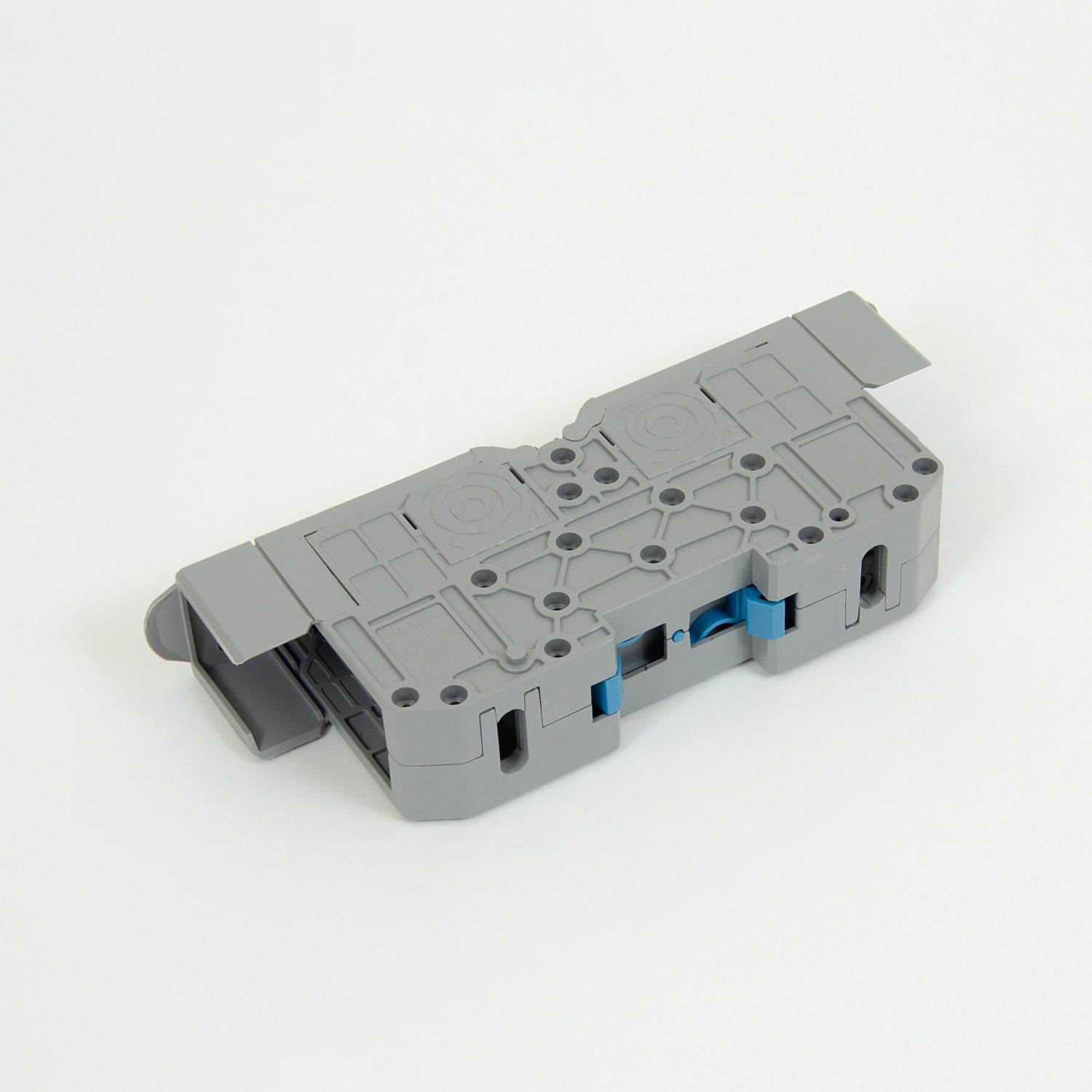

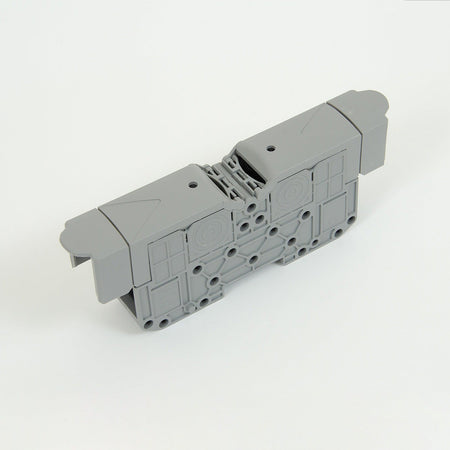

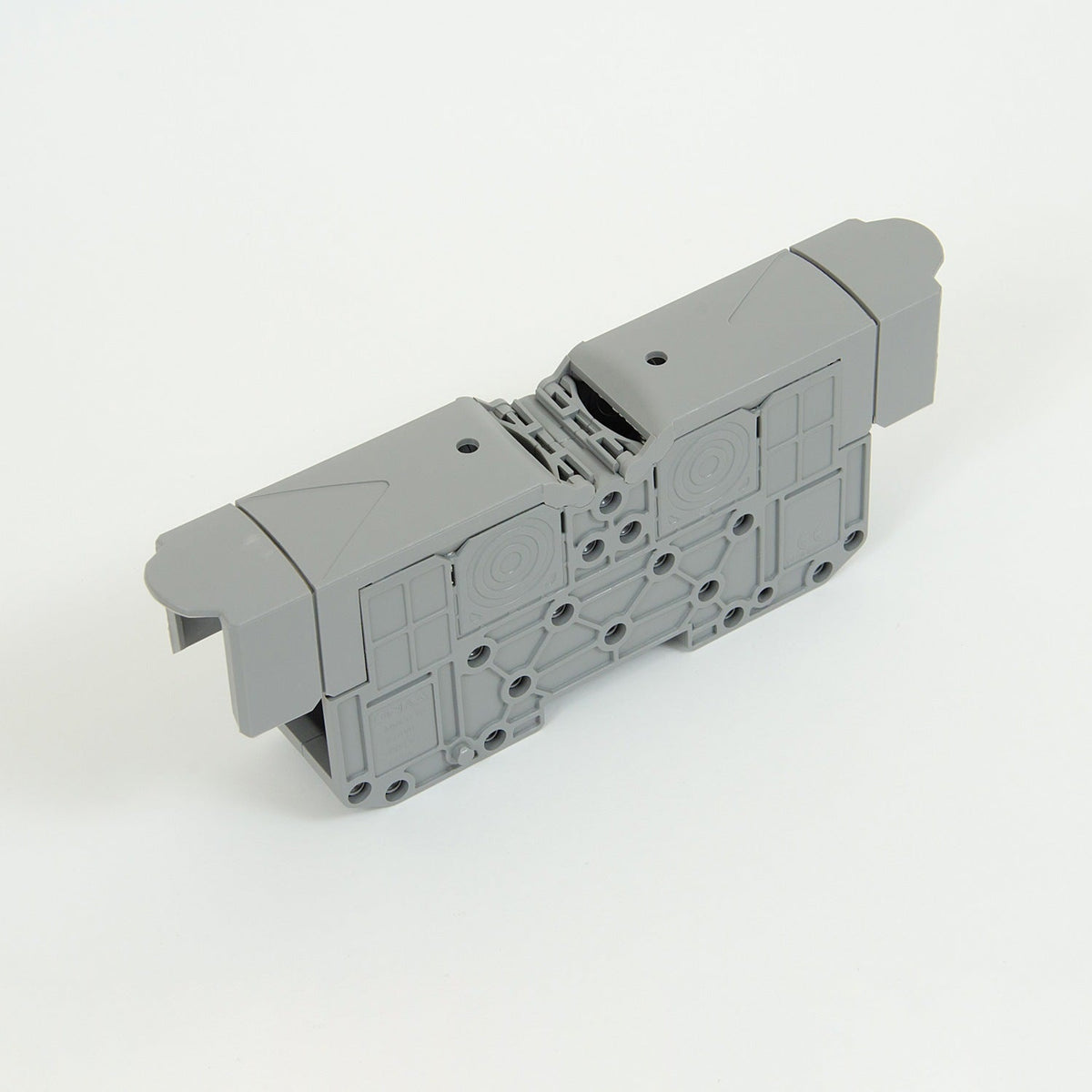

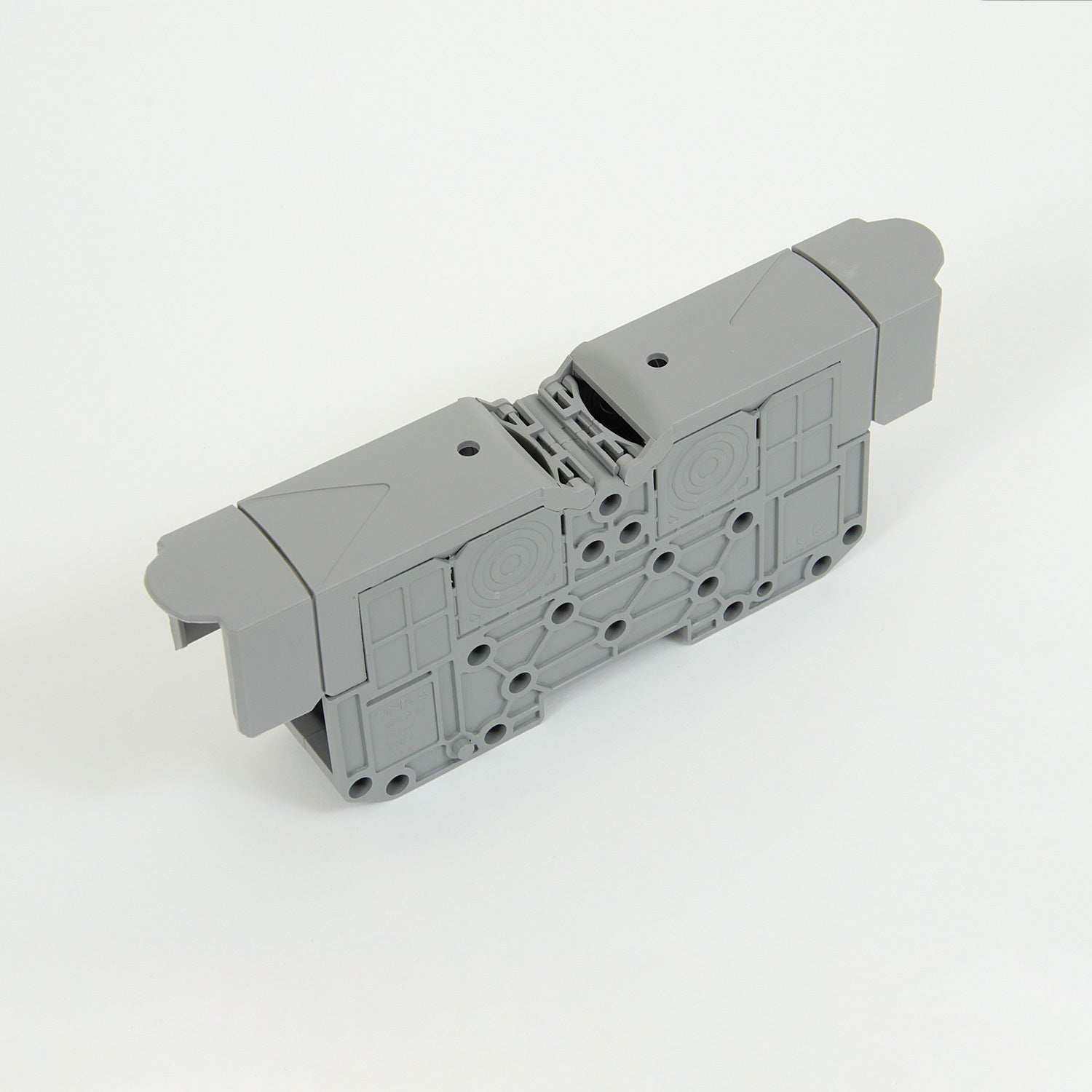

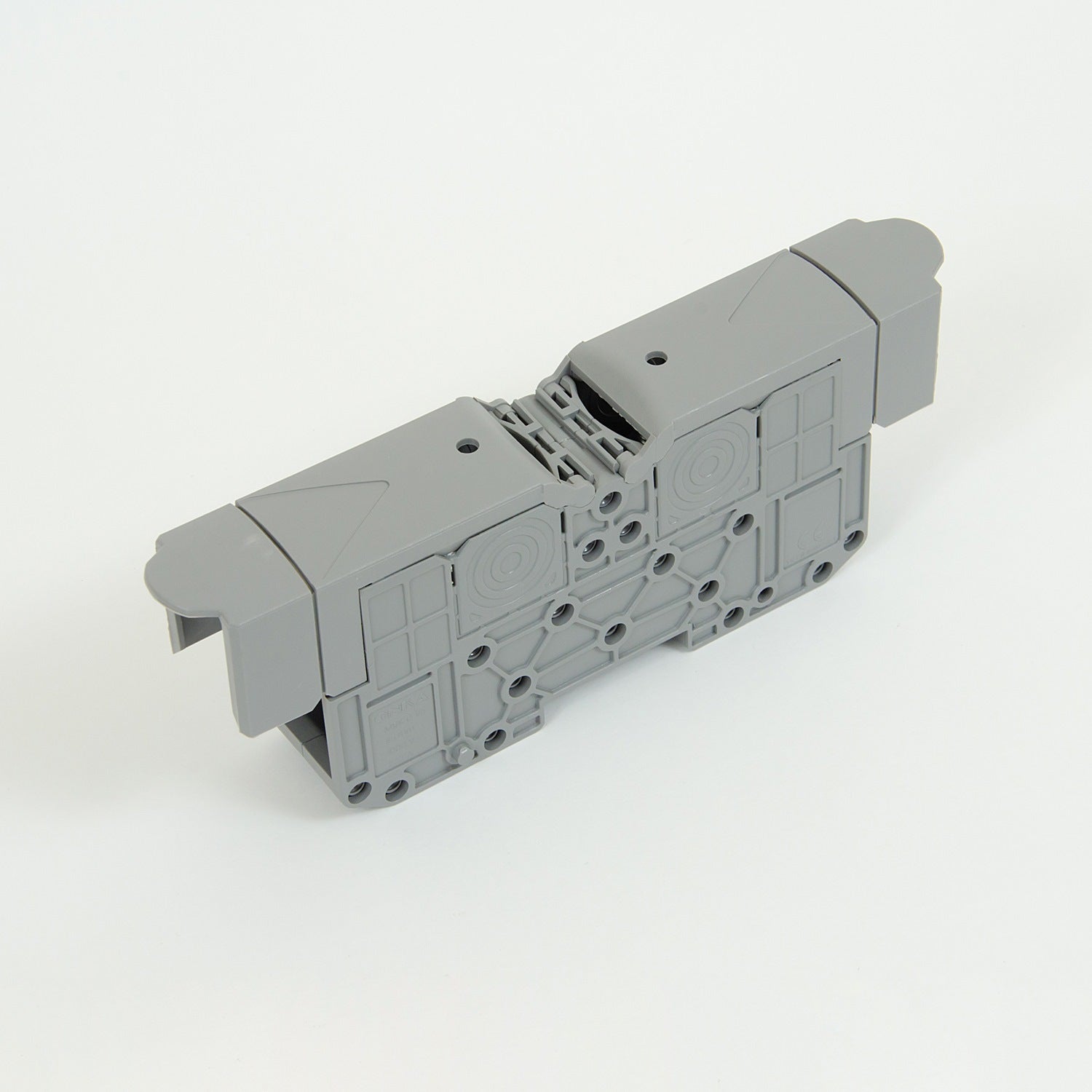

M8, 95mm2, threaded connection rail / Terminal on DIN rail with protective cover, gray, ONKA, manufactured in Turkey

Compact installation connectors from ONKA offer great possibilities to connect different conductors with different cross-sections. The transparent cover allows for easy verification of correct conductor arrangement. Original quick-lock from ONKA provides comfort during installation and 100% reliability in the connection.

Technical parameters

Cross-section of connected single-core conductor up to: 95mm2
Color: gray
Insulation material for main cover: polyamide (PA6.6)
Material for contact / bridge: CK45 Steel / copper
Connection mode: Side / Side
Nominal voltage: 1000V
Nominal current: 232A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
