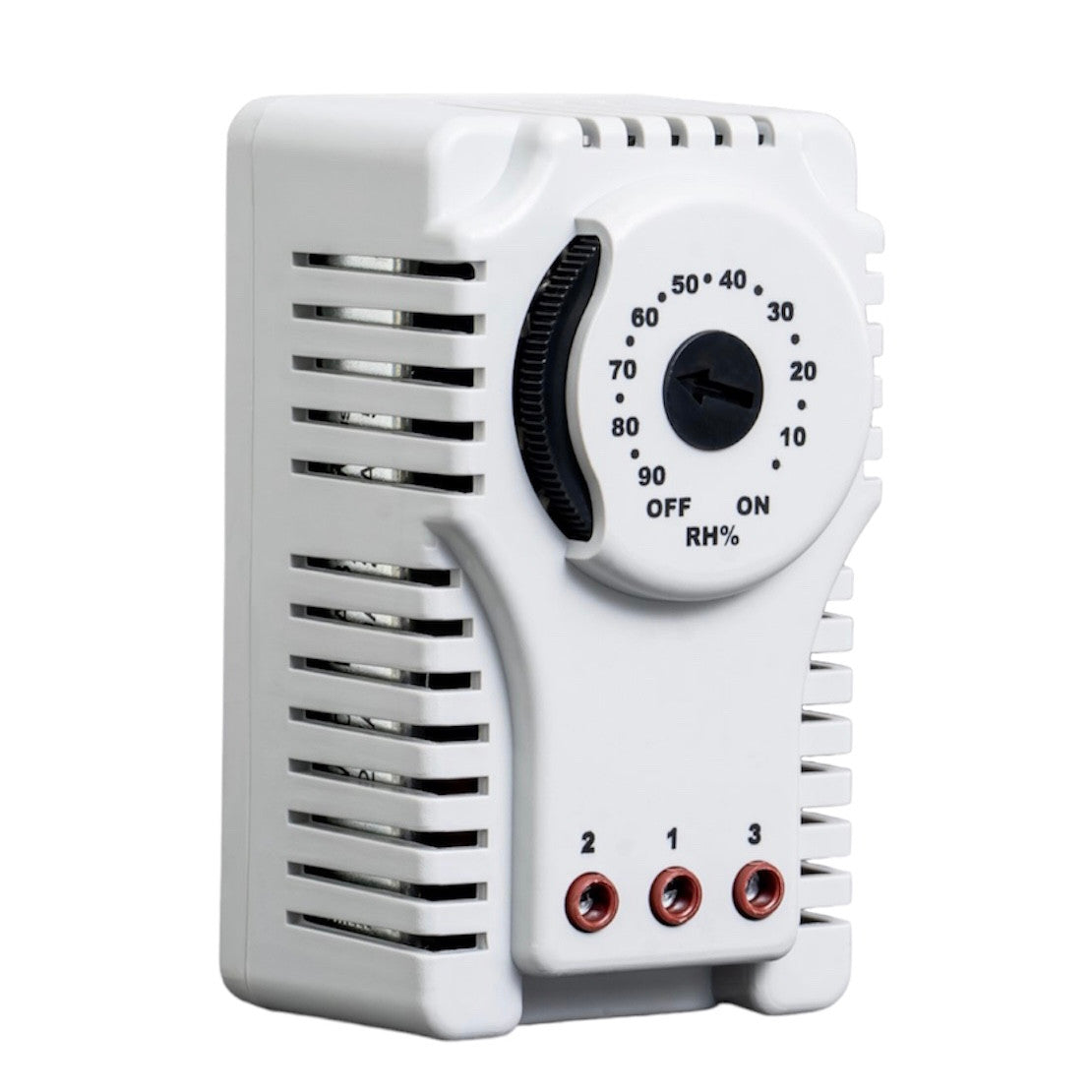

PLASTIM PHG02 hygrostat 110-250VAC (10A-5A current load), 10 - 90%RH, screw terminals IP20

This hygrostat (mechanical relay for controlling humidity levels or hygrometer or hygrostat) can be used for both processes – both to reduce humidity and to increase humidity. For this purpose, the device is equipped with a changeover contact that allows the use of this hygrostat for all tasks related to humidity control.

This relay for controlling humidity levels is designed for installation in electrical or automation panels, ATMs, payment terminals, gaming machines or other devices to control humidity levels and activate appropriate heating or drying equipment.

Manufacturer's code

Unit

PHG02

Voltage

V AC

110-250

Setting range

%RH

10-90

Color potentiometer

black

Current

A

(10-5)

Hysteresis

%5 - %10

Sensor type

Polyamide tape

Electrical connection

3-pole terminal

Thread size

0.75 mm² - 4.0 mm²

Operating temperature

°C

+10/+60

Storage temperature

°C

+10/+60

Protection level

IP20

Body color

RAL7035

Mounting

DIN rail 35mm

Dimensions

etc.

94x54x56

Weight

g

180
