RGT-12SVC - Reactive power regulator 12 levels +TCR with RS485 ModBus RTU

Only 3 left
SKU: RGT-12(SVC)
2 673 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

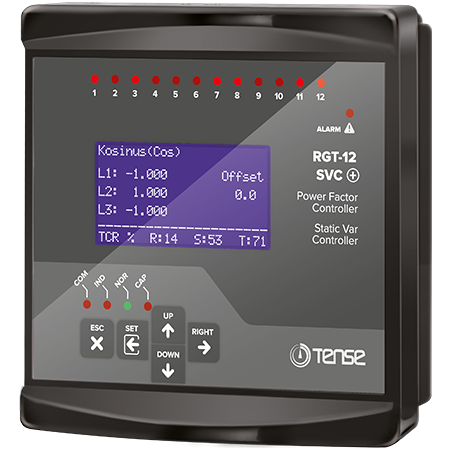

12 steps + TCR Reactive power controller with 2.9-inch graphic LCD display and RS-485 (TENSE)

The reactive power regulator RGT-12SVC (TENSE) is a fully automatic device for optimal switching of compensation stages.

Digital processing of values measured by the controller ensures high precision in the evaluation of effective value of voltage, current and power factor.

Installation of the device is fully automatic - the controller itself detects the size of the connected compensation stages. These parameters can also be entered manually.

The controller switches the compensation stages on and off so that the control of reactive power is carried out with a minimum number of connections. At the same time, the controller takes into account the even loading of the different stages and gives priority to switching on those that have been switched off the longest and where the residual charge is minimal. During the control, a continuous check of the compensation stages is carried out - interruptions and value changes are detected, temporarily removed stages are tested periodically and can possibly be reintroduced into the control process.

  • Generator input and generator compensation

  • Exposure times, discharge and stabilization can be set

  • Remote communication with RS485 (RS485 ModBus RTU)

  • Single-phase capacitor, two-phase capacitor and three-phase capacitor as well as side reactor can be connected

  • Harmonic voltages and currents can be observed up to the 31st harmonic

  • Total energies (import/export) can be monitored

  • THD-V and THD-I values for each phase can be observed

  • Creation of power analysis (20 samples 9999 min.) - for capacitor selection
