TENSE

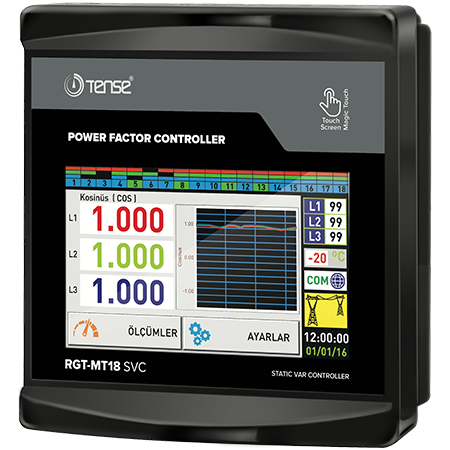

RGT-MT18 - Reactive power regulator 18 levels +TCR with RS485 ModBus

Only 2 left
SKU: RGT-MT18
3 398 kr incl. VAT
Sale 4 122 kr 3 398 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

18 steps + TCR Power regulator for symmetrical / asymmetrical networks with 5-inch touchscreen and RS-485 (TENSE)

Reactive power control relays are designed to reduce the reactive power (inductive and capacitive) not used by the load and taken from the grid. If inductive power is taken from the grid, it intervenes by removing a capacitor of the appropriate value. If capacitive power is taken from the grid, it intervenes by removing a shunt reactor of the appropriate value. It attempts in this way to reduce the inductive/active and capacitive/active rate in the system. It is designed to provide a more reasonable compensation for asymmetrical inductive and capacitive systems with RGT-MT18 TCR stages.

  • Generator input and generator compensation

  • Voltage, harmonic current/voltage, inductive and capacitive alarm output

  • Intervention times, discharge and deposition can be set

  • Remote communication with RS485 (RS485 ModBus RTU)

  • Single-phase capacitor, two-phase capacitor and three-phase capacitor as well as side reactor can be connected

  • Harmonic voltage and current can be observed up to the 61st harmonic

  • Total energies (import/export) can be monitored

  • THD-V and THD-I values for each phase can be observed

  • Creation of power analysis (20 samples 9999 min.) - for capacitor selection

  • Temperature alarm output

  • Demand recording (active and reactive as well as apparent power and current demand)

  • Minimum, maximum and average values of current and voltage for each phase can be monitored

  • Current date and time
