Rotary switch 0-1, ON / OFF, 1-2-3-4 poles, 10-100A

In stock - 11 items available
SKU: YPT101010
Common price 50 kr incl. VAT
Marking
Number of poles

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

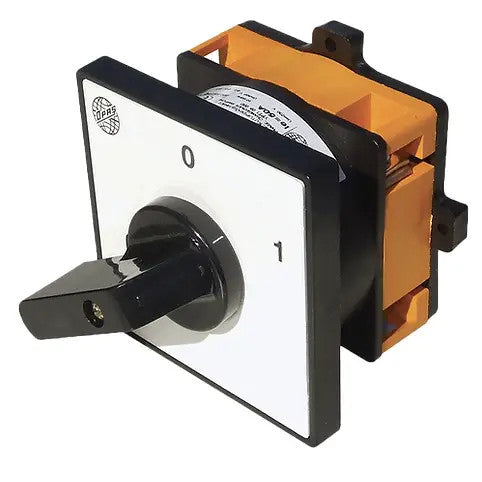

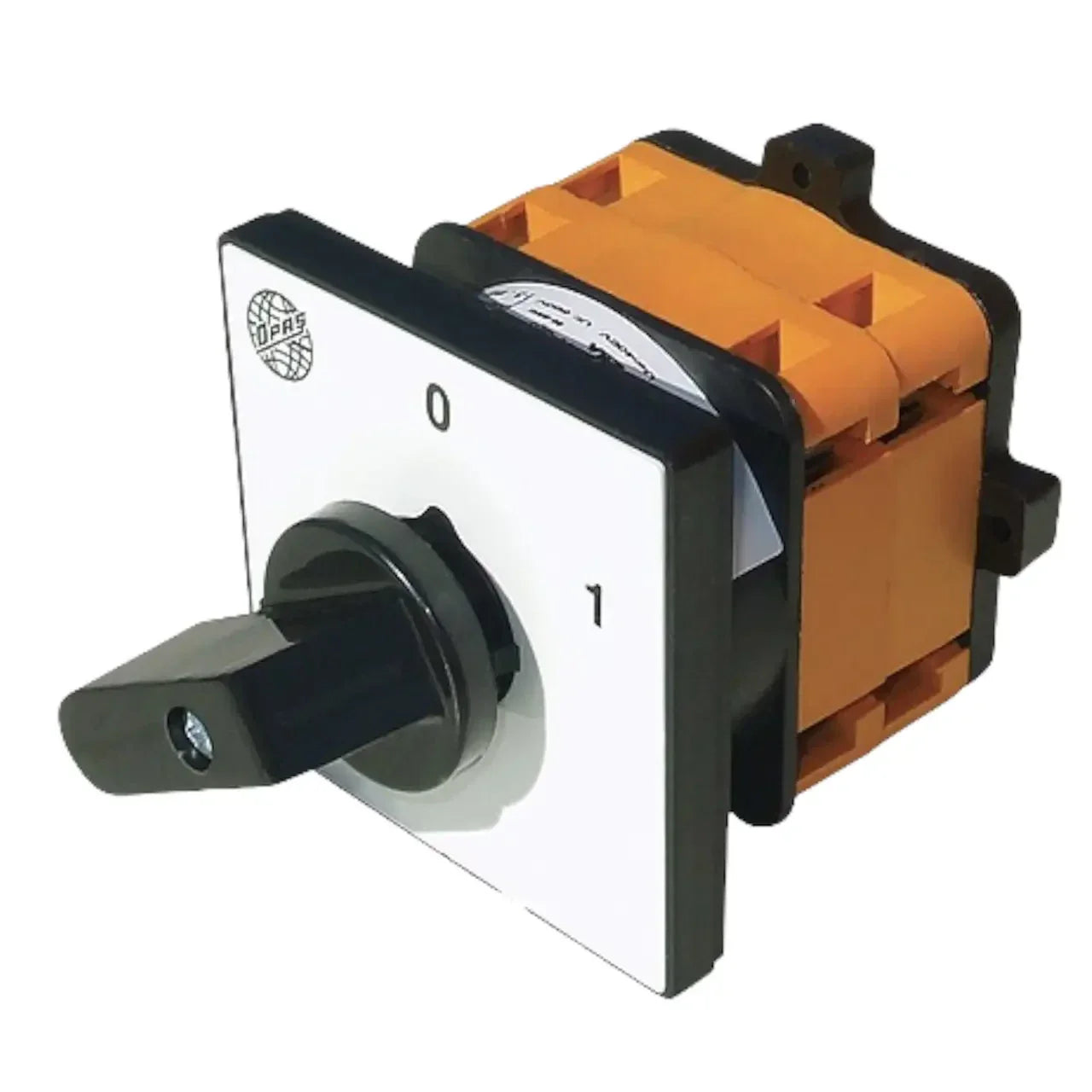

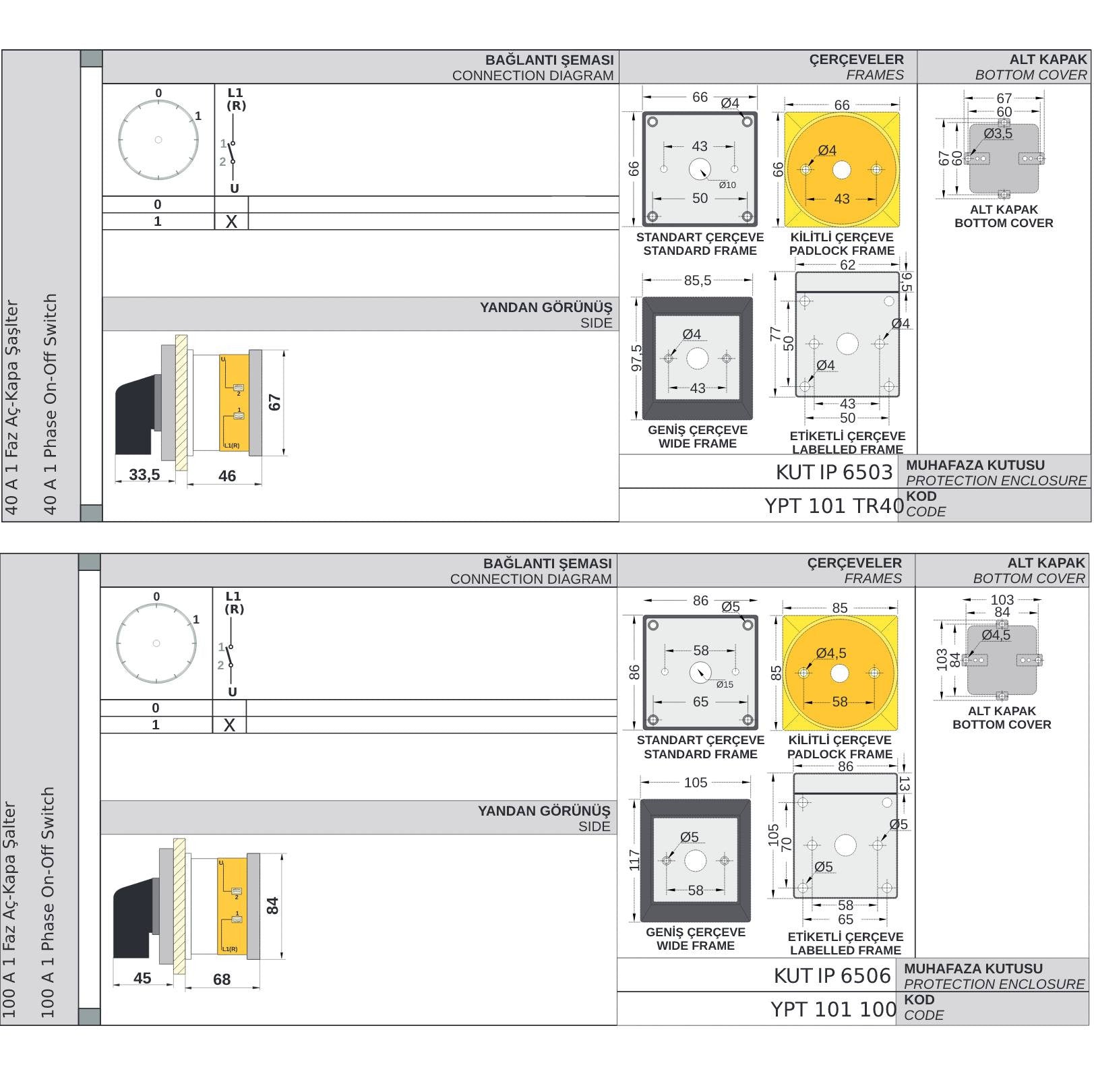

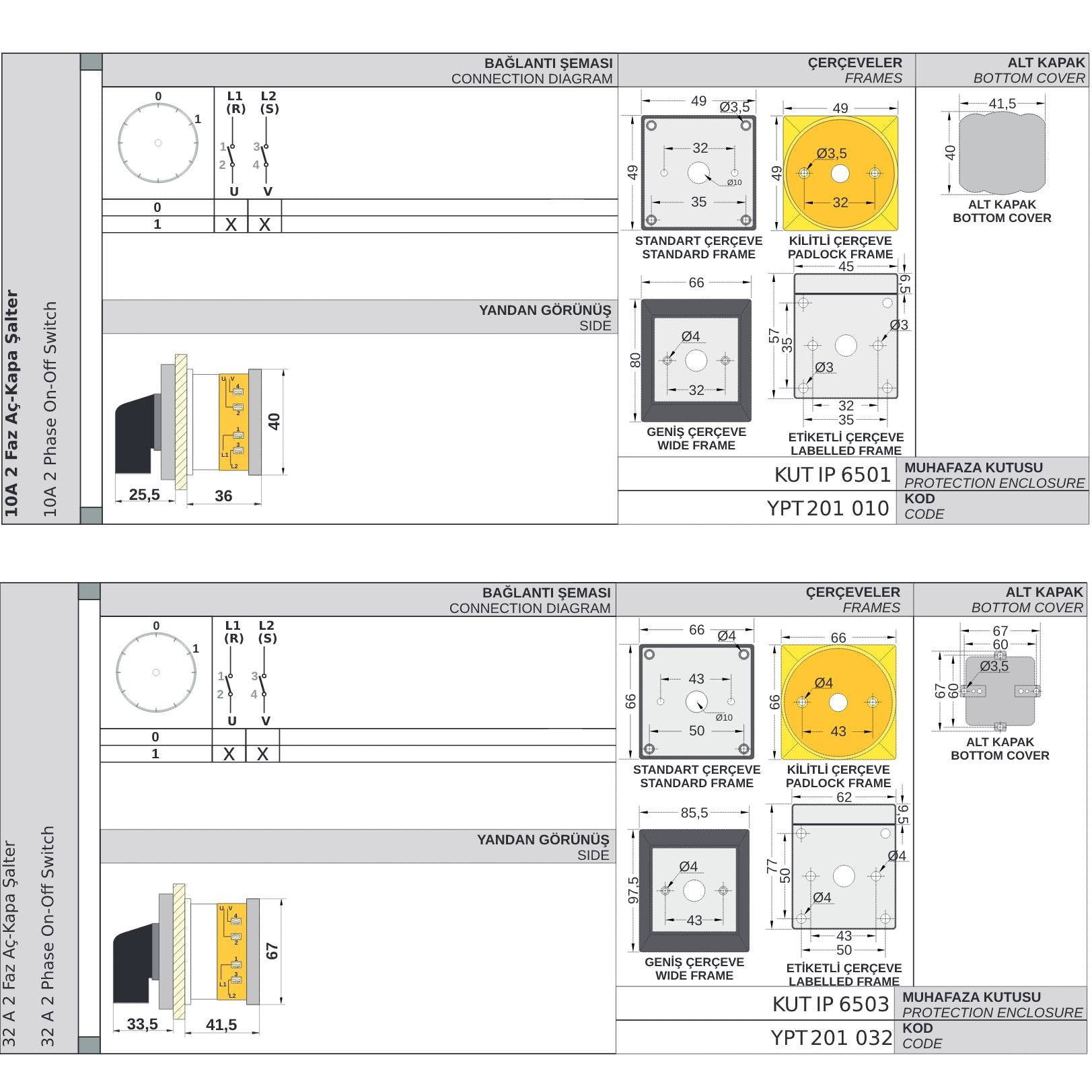

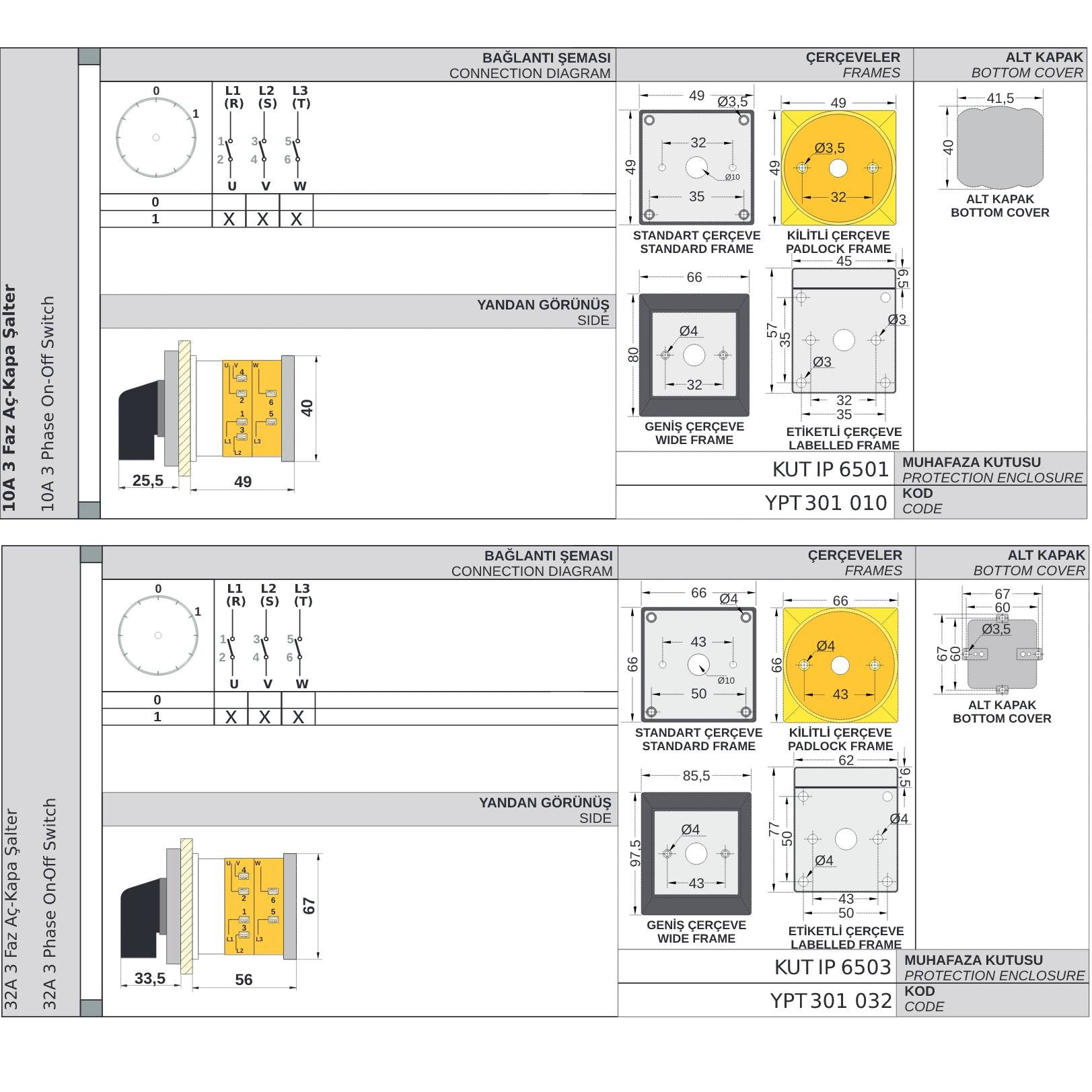

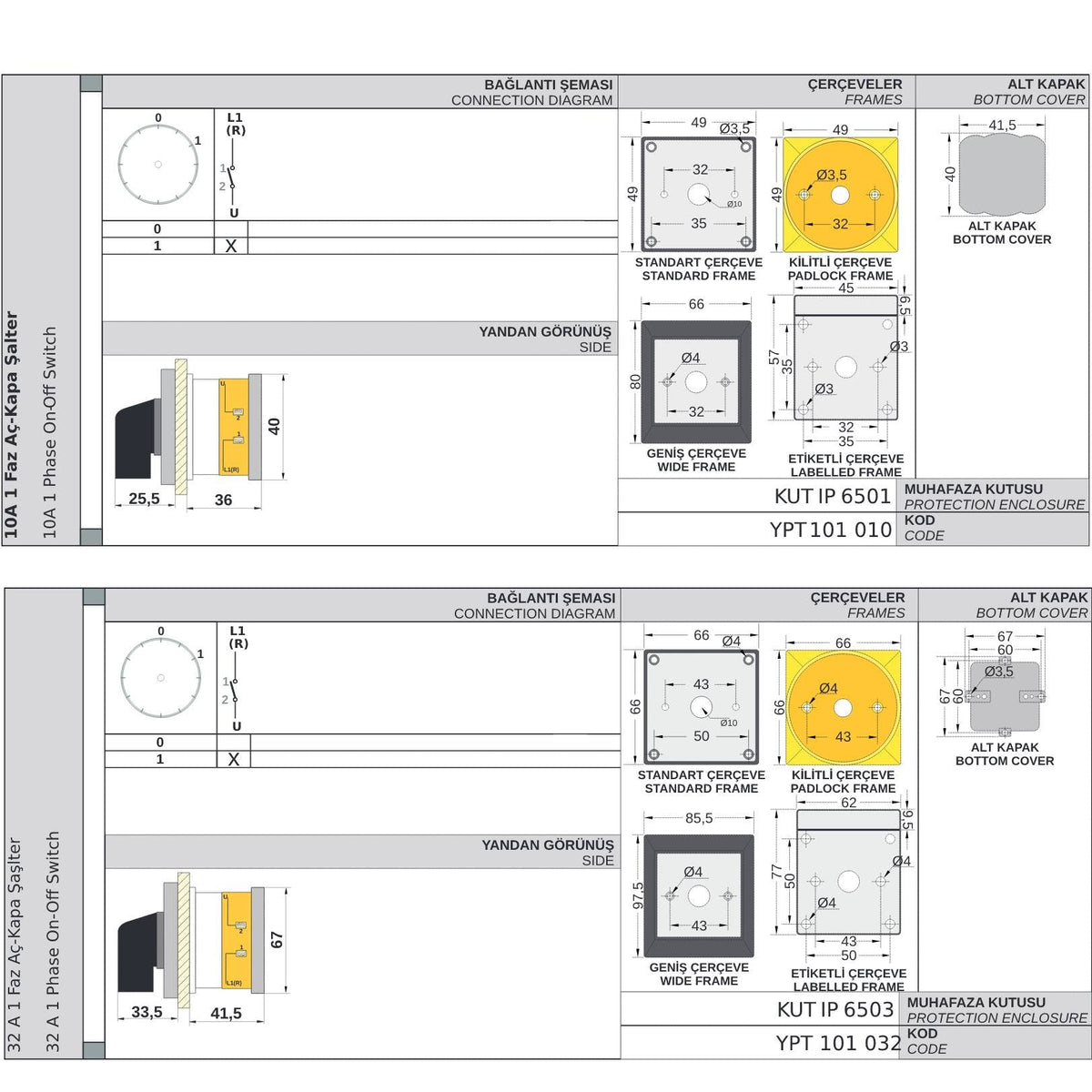

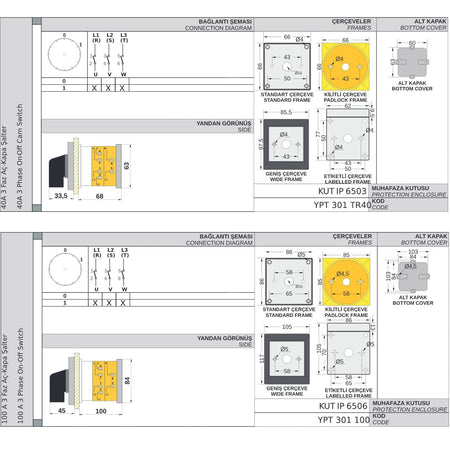

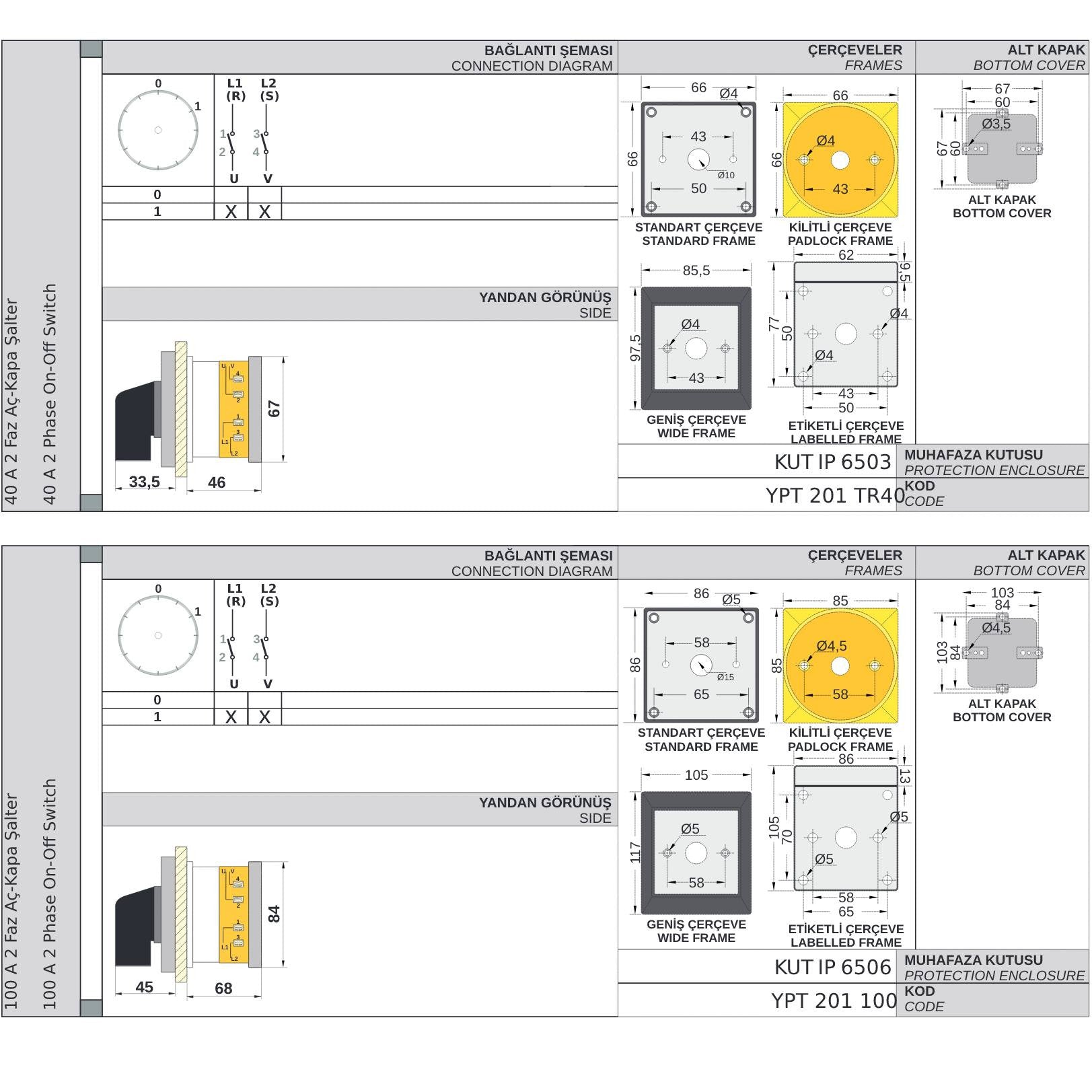

ON-OFF camshaft package switch (0-1) switch without latching, 1-2-3-4 poles, YPT101 / YPT201 / YPT301 / YPT401 made by OPAŞ (Turkey)

  • 1, 2, 3, 4 poles
  • 10A, 16A, 25A, 32A, 40A, 63A, 100A,125A, 160A, 200A, 250A, 315A

Package switches are intended for manual switching of low-voltage circuits. They are used to create main and control circuits, as well as to turn on and off electric motors and other low-power devices. The advantages of switches of this series are compact dimensions, electrical and mechanical resistance, and high capacity for switching on and off.

Technical specifications

Construction: Articulated
Device type: Rotary switch

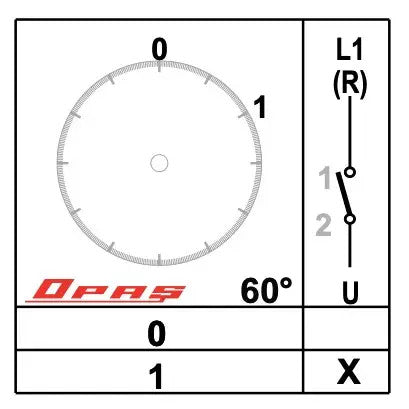

Switching scheme: 0 - 1
Number of poles: 1
Type: Built-in
Number of phases: Single phase
Fuse: No
Dust and water protection level: IP20
Working temperature range: from -30 to +55°C
