Plastim

Ceiling fan, distribution fan, 400m3/h, 230VAC, 364x364x107mm, IP54, PTS4000

In stock - 10 items available
SKU: PTS4000
3 137 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

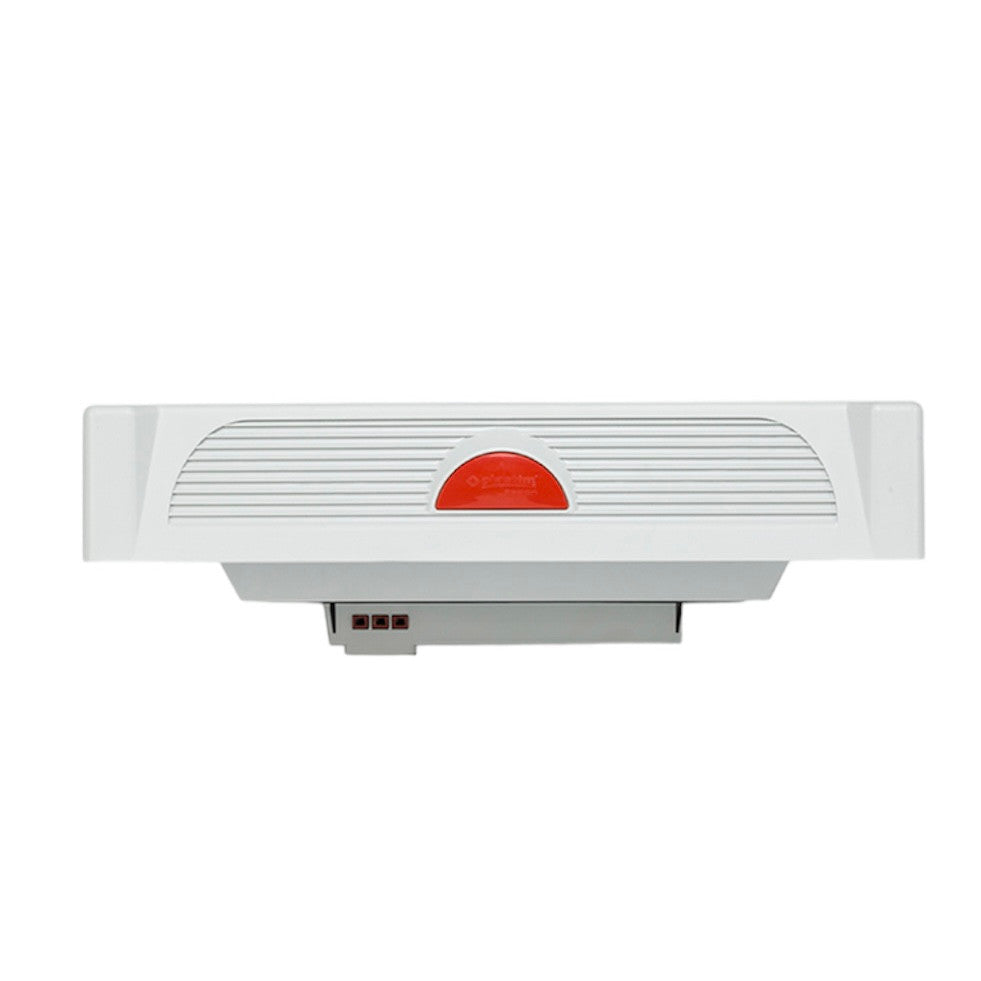

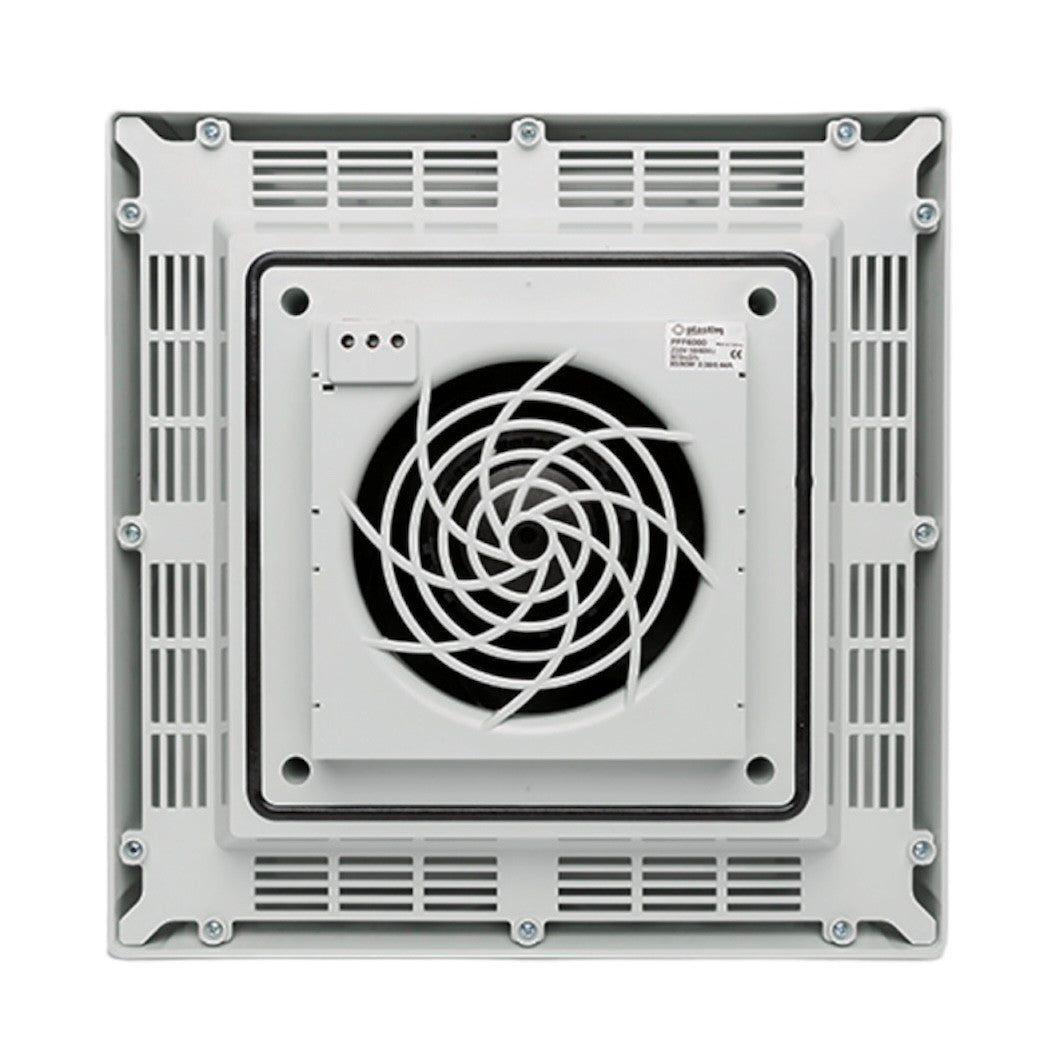

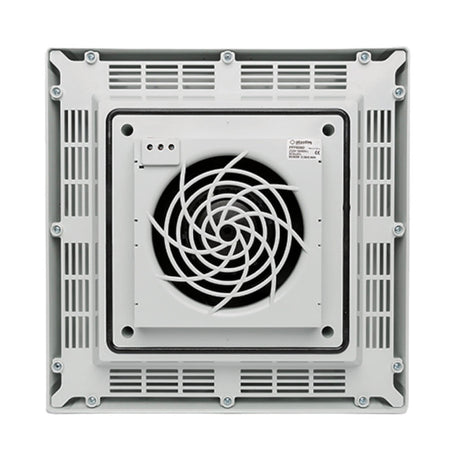

Fan in housing for installation on the roof of distribution cabinets, PTS4000, PLASTIM (Türkiye)

This fan is intended for use in a microclimate system in the switchboard or automation panel and is usually used with the PTVT or PTHVT thermostat. It is installed on the roof of the switchboard, which allows for the most efficient removal of excess hot air from the cabinet volume.

Although the fans have the same overall dimensions, they differ in the volume of air emitted and the noise level.

  • External dimensions: 364x364x107 mm
  • Installation size: 178х178mm
  • Volume flow: 400 m3/h
  • Sound level: 62 (64) dB(A)
  • Bearing: Ball bearing
  • Lifespan: 50000 hrs
  • Operating voltage: 220-230VAC, 50/60Hz
  • Current consumption: 0.11/0.15 A
  • Nominal power: 25/32 W
  • Electrical connection: 3-pole terminal 2.5 mm2
  • Flow direction: Air flow is directed from inside to outside the distribution cabinet
  • Operating temperature: -10/+70 °C
  • Protection class: IP54
  • Plastic material: UL94 V0 ABS Flame retardant
  • Seal: Polyurethane seal
  • Color: RAL 7035
  • Weight: 2.6 kg
  • Mounting: Fixed Clip-on

To ensure automatic air exchange and temperature control with this fan, you will need either a simple bimetallic thermostat or a more advanced temperature controller, both devices can be purchased on our website.
