Temperature thermostat controller for panel mounting ON - OFF with external sensor

In stock - 28 items available
SKU: DT-321
Common price 322 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

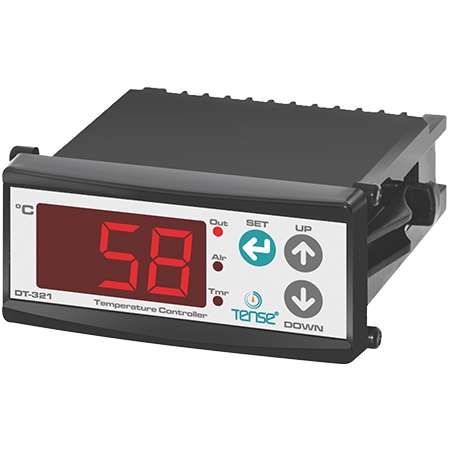

Thermostat / 2-point temperature controller for panel mounting ON-OFF control mode,

thermostat with external sensor, measuring range -30ºC ...+150ºC, resolution / step 1ºC (made in Turkey, TENSE) DT-321

Regulation and monitoring of thermal processes for heating, air conditioning and ventilation systems, building automation, industrial plants.

  • Sensor type: NTC

  • Relay outputs OUT and ALARM (NO+NC) 250VAC, 2A

  • Optional heating and cooling function

  • Hysteresis
  • Adjustable ON/OFF timers for output OUT in case of sensor failure

  • Protection against compression thanks to adjustable shut-off times
  • Upper and lower limits for setting SET and ALARM

  • Adjustable separate hysteresis for setting SET and ALARM

  • Turn-on delay for OUT in cooling mode

  • EEPROM memory for storing settings

  • Password protection

  • High precision

This simple temperature controller can be used with three types of sensors presented on our website:
