Thermostatic temperature controller on DIN rail ZAP-VYP ON - OFF - temperature switch

In stock - 69 items available
SKU: DT-321DIN
Common price 322 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

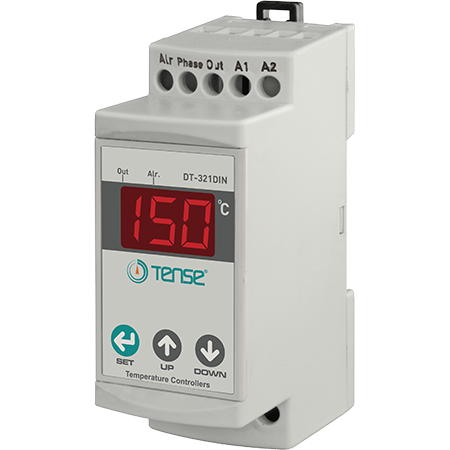

2-point temperature controller / thermostat for mounting on rail with external sensor. ON-OFF ZAP-VYP control mode, measuring range -30ºC ...+150ºC (made in Turkey, TENSE) DT-321DIN

Thermostat regulator with external sensor

The DT-321DIN temperature controller is characterized by its individual usability and is used to control heating or cooling systems. Alternatively, the DT-321DIN can also easily function as a reading device.

Regulation and monitoring of thermal processes for heating, air conditioning and ventilation systems, building automation, industrial plants.

  • Sensor type: NTC

  • Relay outputs OUT and ALARM (NO+NC) 250VAC, 2A

  • Optional heating and cooling function

  • Hysteresis
  • Adjustable ON/OFF timers for output OUT in case of sensor failure

  • Protection against compression thanks to adjustable shut-off times
  • Upper and lower limit for setting SET and ALARM

  • Adjustable separate hysteresis for setting SET and ALARM

  • Turn-on delay for OUT in cooling mode

  • EEPROM memory for storing settings

  • Password protection

  • High precision

Scope of delivery:

1x temperature controller DT-321DIN
1x NTC (sensor)
1x user manual (English)

This simple temperature controller can be used with three types of sensors presented on our website:

  1. link to type 1: -30°C to 105°C - SKU: NTC-105 (included in delivery)
  2. link to type 2: -30°C to 150°C - SKU: NTC-150
  3. link to type 3: -30°C to 150°C (with nut and thread) - SKU: NTC-S-150

Features:

Power supply: 100 to 240 V AC, 50/60 Hz
Power: < 6 VA
Sensor type: NTC
Temperature measurement range: - 30 °C to + 150 °C
Resolution: +/- 1°C
Measurement accuracy: +/- 3% (°C), over the entire measurement range
OUT Output: Relay (NO + NC), 250V AC, 2A
ALARM output: Relay (NO + NC), 250V AC, 2A
Operating temperature: 0°C to 50°C
Heating/Cooling: Ht (Heating), Cl (Cooling); optional
Front panel cutout: 66 x 36 mm
Display: 3-digit - 7-segment

Product type: temperature gauge
Protection class: IP00
Brand: Tense
Country and region of manufacture: Turkey
Power supply: 100V - 240V ~
Connection type: screw terminals
Mounting: DIN rail
Temperature measurement range: -30...+150°C
Switching output: Temperature relay (NO + NC), 250VAC, 2A, ohmic load
Sensor type: NTC sensor
Shipping weight: 0.12 kg
Item weight: 0.10 kg

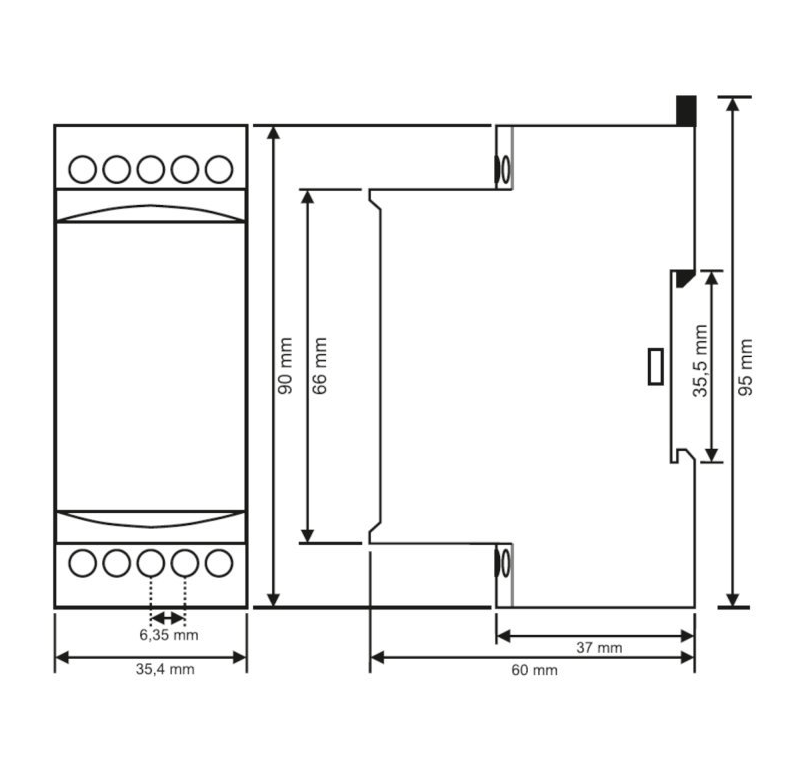

Dimensions (length × width × height): 8.50 × 7.80 × 36.00 cm
