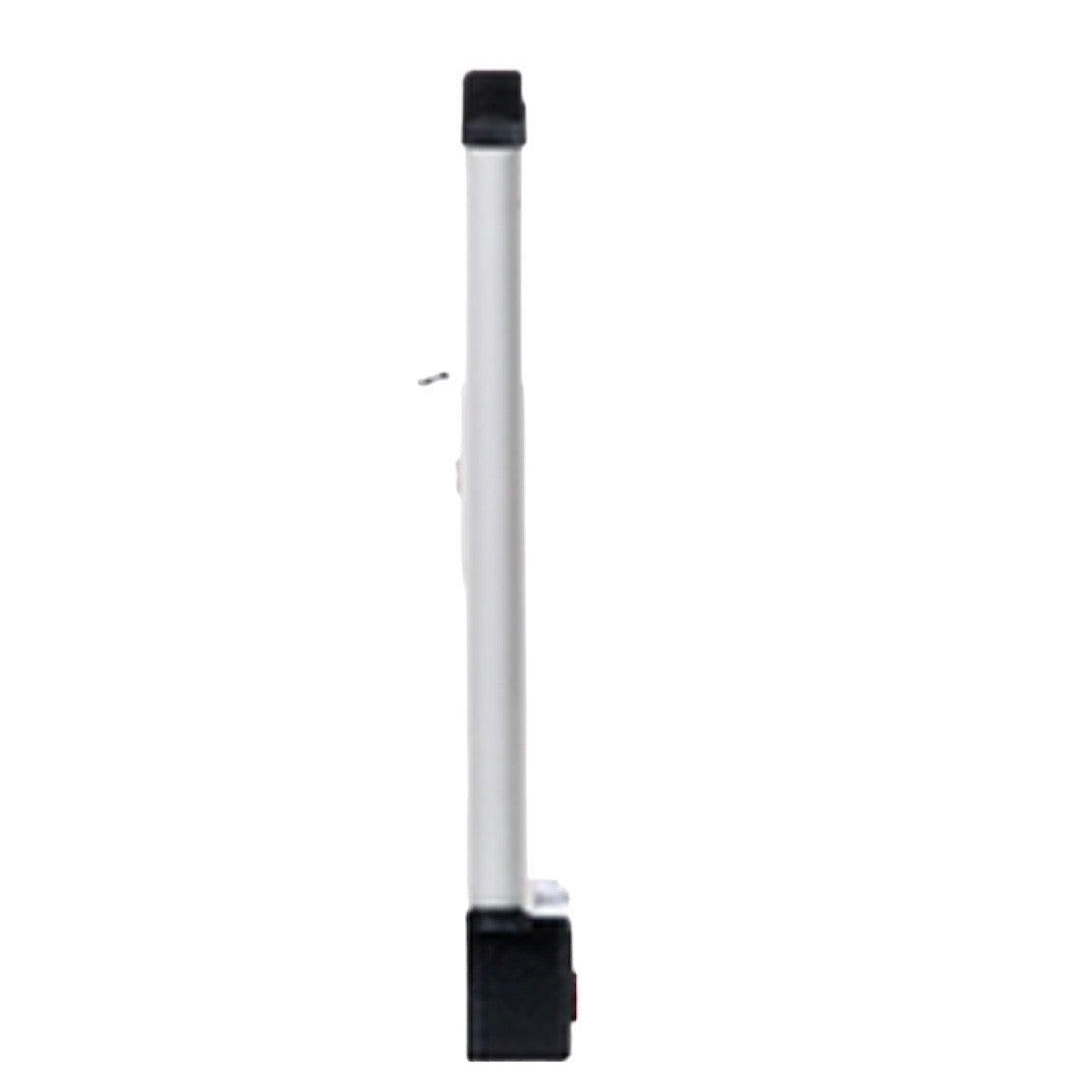

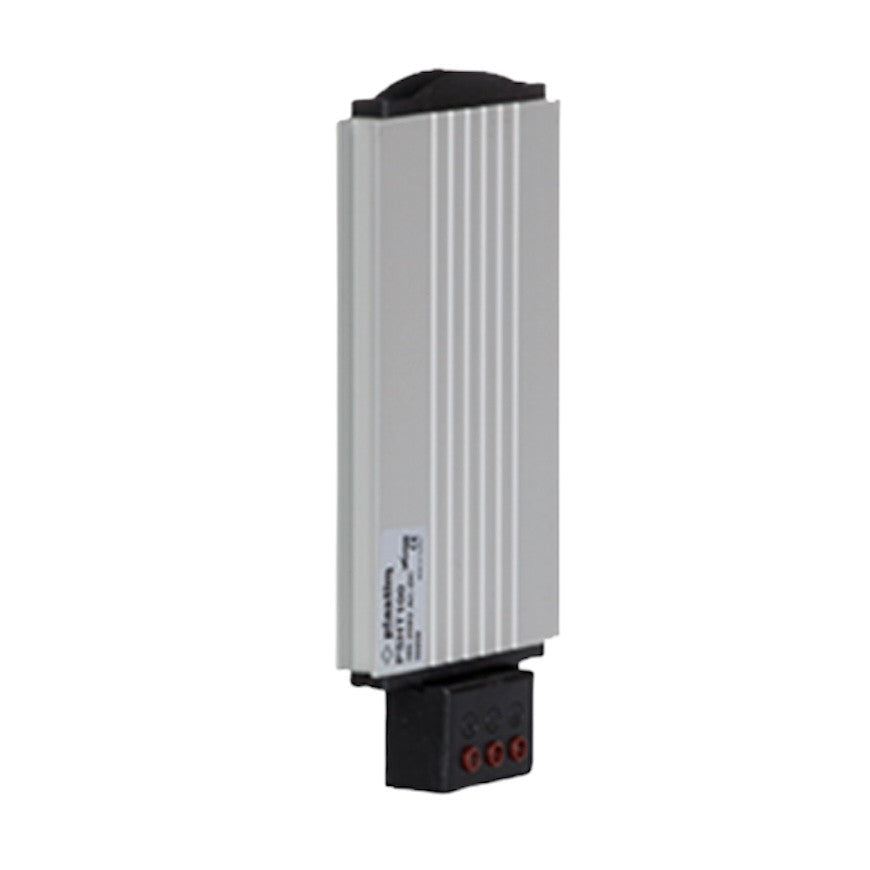

Electric (PTC Heating Element, Thin Thermistor Heater) distribution heater with anodized aluminum radiator and overcurrent protection, for installation on DIN rail with a power of 50 watts, 110-220 volts AC or DC, PSHT050, Plastim - made in Turkey.
- Heating power: 50W
- Operating voltage: 100-250V AC / DC
- Maximum current: 2A
- Heating element type: Self-regulating PTC resistor
- Overcurrent protection: Electronic thermal overload relay
- Electrical connection: 3-pin terminal NLE
- IEC protection class: Class II
- Protection level: IP20
- Operating temperature: -45 / +70 °C
Storage temperature: -45 / +70 °C
Radiator: Aluminum profile, anodized
Mounting: on DIN rail 35mm
-
Mounting position: Best efficiency in vertical position
External dimensions: 148x80x27mm
Weight: 0.19 kg
Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not meet modern strict requirements for electrical appliances and electronics. Currently, almost all manufacturers are switching to PTC heaters, which not only ensure heating, but also guarantee safety and operational life.
All heaters are equipped with electronic protection against surface overheating, which provides an additional guarantee of safe operation.
Given the high requirements for cabinet heaters, Plastim has paid great attention to the selection of suppliers of components. For example, the supplier of PTC heating elements is the same as that of Schneider Electric, and the terminal for electrical connection of all parts is manufactured by the Italian company KORNER on special order. The plastic material from which this device is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit any odors, and therefore does not emit any harmful carcinogens into the atmosphere. Agree that this approach to selecting suppliers favorably distinguishes high-quality heaters from Plastim from cheap Chinese counterparts.
To ensure automatic temperature control with this heater, you will need either a simple bimetallic thermostat or a more advanced temperature controller. Both devices can be purchased on our website:
