Heating distribution PTC 30W, PHT030, Plastim

In stock - 23 items available
SKU: PHT030
Common price 291 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

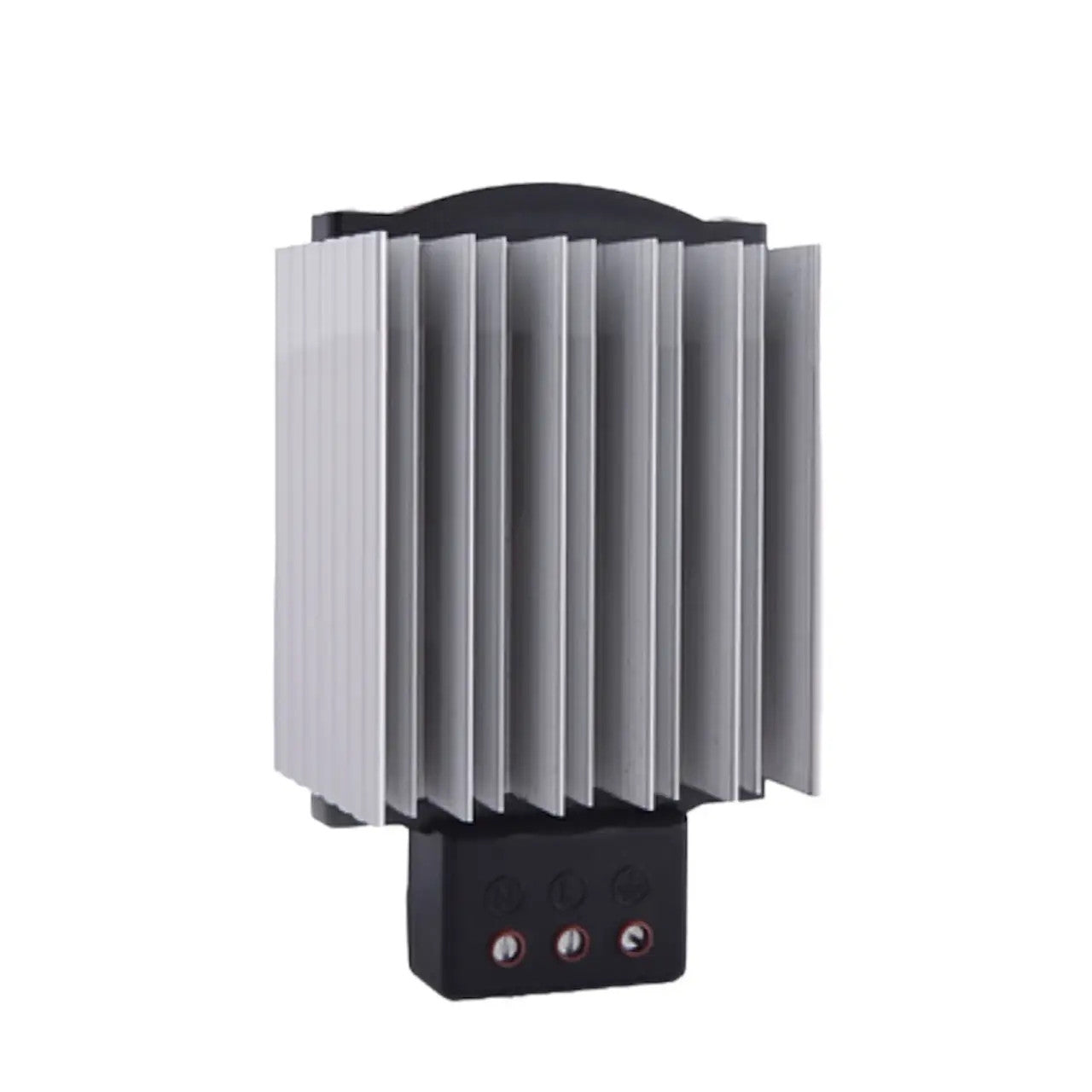

Electric (PTC Heating Element, Positive Temperature Coefficient Heater) distribution heating with anodized aluminum radiator and overcurrent protection, for installation on DIN rail with a power of 30 watts, 110-220 volts AC or DC, PHT030, Plastim - made in Turkey.

  • Heating power: 30W
  • Operating voltage: 100-250V AC / DC
  • Maximum current: 2A
  • Heating element type: Self-regulating PTC resistor
  • Overcurrent protection: Electronic thermal overload relay
  • Electrical connection: 3-pin terminal NLE
  • IEC protection class: Class II
  • Protection level: IP20
  • Operating temperature: -45 / +70 °C
  • Storage temperature: -45 / +70 °C

  • Radiator: Aluminum profile, anodized

  • Mounting: on DIN rail 35mm

  • Mounting position: Best efficiency in vertical position

  • External dimensions: 128x70x59mm

  • Weight: 0.41 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not meet modern strict requirements for electrical appliances and electronics. Currently, almost all manufacturers are switching to PTC heaters, which not only ensure heating, but also guarantee safety and operational life.

All heaters are equipped with electronic protection against surface overheating, which provides an additional guarantee of safe operation.

Given the high requirements for cabinet heaters, Plastim has paid maximum attention to the selection of suppliers of components. For example, the supplier of PTC heating elements is the same as for Schneider Electric, and the terminal for electrical connection of all parts is manufactured by the Italian company KORNER on special order. The plastic material from which this device is made has a very important property: when heated, it not only retains its shape and is not deformed, but also does not emit any odors, and therefore does not release any harmful carcinogens into the atmosphere. Agree that this approach to selecting suppliers favorably distinguishes high-quality heaters from Plastim from cheap Chinese counterparts.

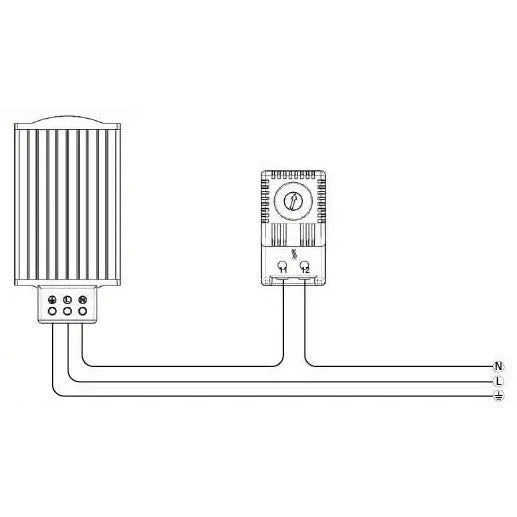

To ensure automatic temperature control with this heater, you will need either a simple bimetallic thermostat or a more advanced thermostat. Both devices can be purchased on our website:

Link to thermostat -

Link to controls -
