Plastim

Heating element for cabinets with fan 500W, PFHT500, PLASTIM

In stock - 19 items available
SKU: PFHT500
1 501 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

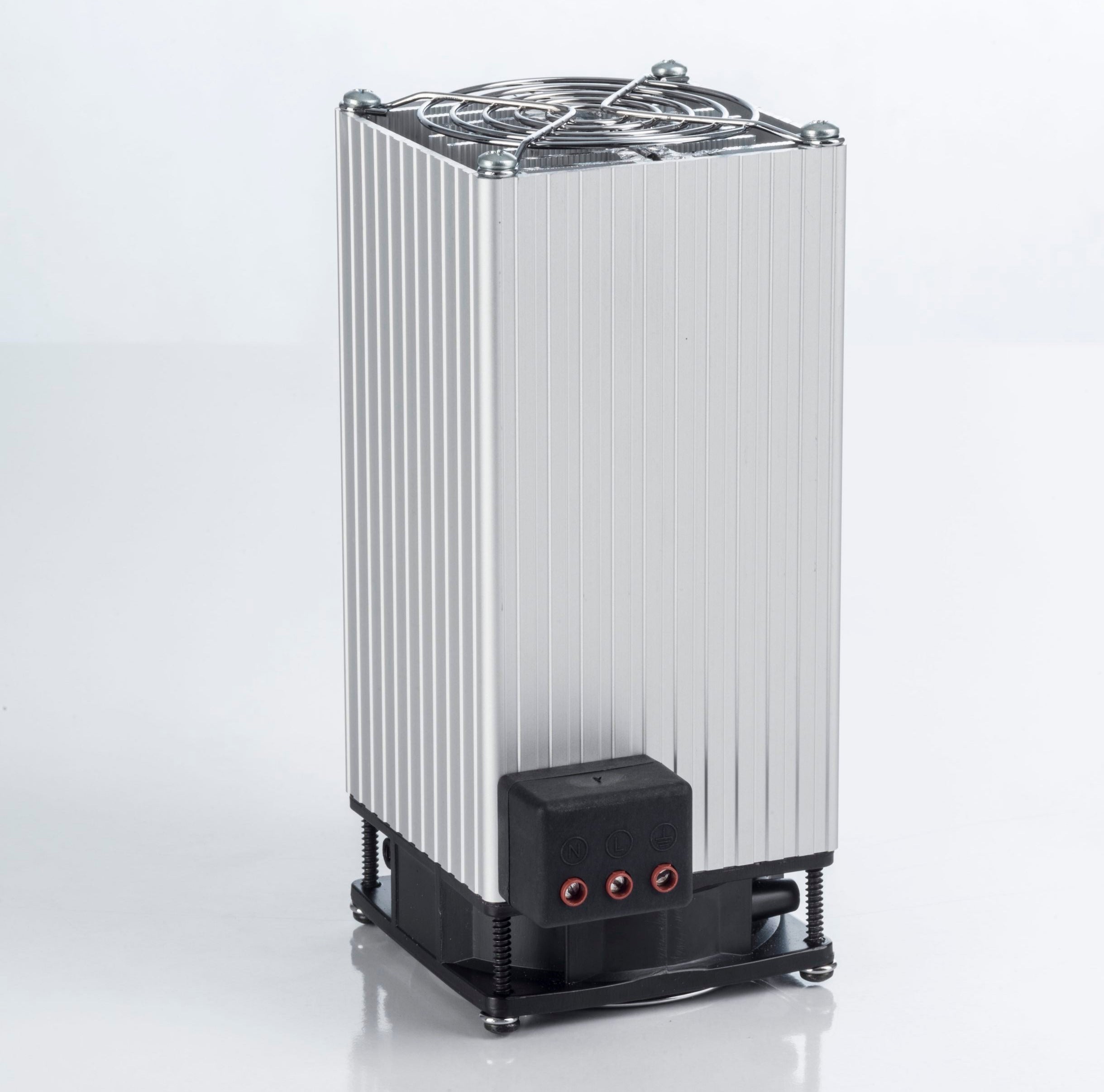

Electric (Heating element, PTC heater) cabinet heater with fan, with anodized aluminum radiator and overcurrent protection, for installation on DIN rail with a power of 250 watts, 220/230 volts AC, PFHT250, Plastim - made in Turkey.

  • Heating power: 500W

  • Operating voltage: 220/230V AC, 50/60Hz

  • Maximum current: 2.4 A

  • Heating element type: Resistance heater

  • Axial fan: 80x80x25mm 35m3/h

  • Overcurrent protection: Electronic thermal overload relay

  • Electrical connection: 3-pin terminal NLE

  • IEC protection class: Class II

  • Protection level: IP20

  • Operating temperature: -25 / +70 °C

  • Storage temperature: -25 / +70 °C

  • Radiator: Aluminum profile, anodized

  • Mounting: on DIN rail 35mm

  • Mounting position: Best efficiency in vertical position

  • External dimensions: 182x80x110mm

  • Weight: 1.2 kg

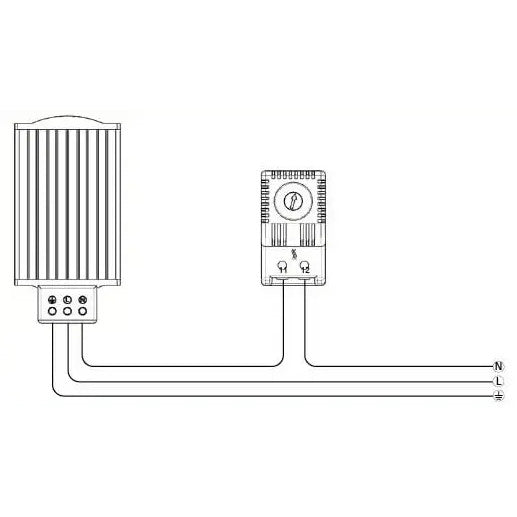

To ensure automatic temperature control for this heater, you will need either a simple bimetallic thermostat or a more advanced temperature controller. Both devices can be purchased on our website.
