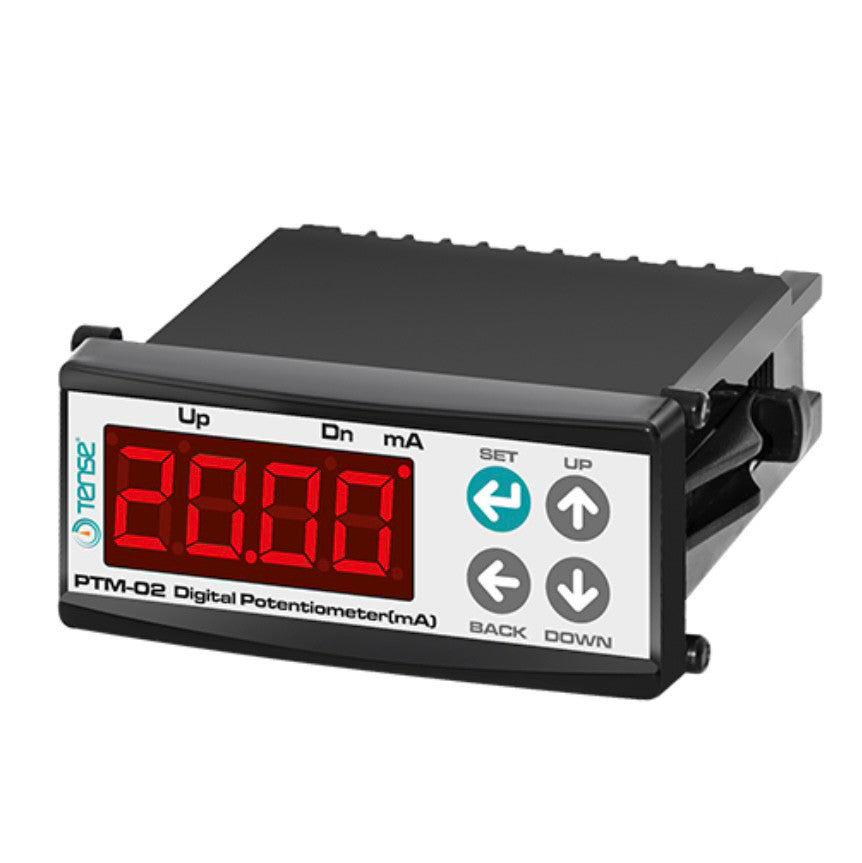

Digital potentiometers are control devices that produce analog outputs between 4-20 mA values
- Microprocessor-based
- Analog output: 4-20 mA
- Menu entry and control of analog output via front buttons
- Control of analog output via digital inputs
- Adjustable upper and lower level for the scale
- Adjustable upper and lower limit for SET
- Separate function selection for the front buttons and digital inputs for controlling the analog output
- Password protection
- SECU setting to enable/disable SET adjustment in the menu
- High accuracy
- EEPROM memory for storing settings
- Easy connection with plug-in connectors
TECHNICAL SPECIFICATION
- Dimensions: 35x77mm
- Panel cutout: 29x71mm
- Display: 4 digits 7 segments
- Analog output: 0-10V or 4-20mA (should be specified when ordering)
- 0-10V load impedance: >5K
- 4-20mA max. Voltage: <10V
- Resolution: 2mV (0-10V), 4μA (4-20mA)
- Accuracy: ±%1;(Overscale)

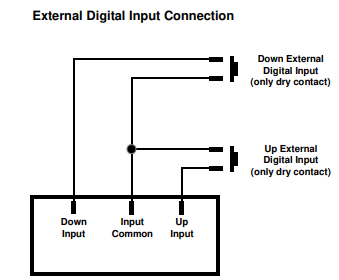

- User control: Via up/down buttons on the front panel or up/down digital inputs
- Digital inputs: Dry contact input only
- Supply voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
- Power consumption: < 6VA
- Humidity: 80% up to 30oC, then decreases linearly to 50% at 50oC (non-condensing)
- Altitude: < 2000 m
- Protection class: IP20
- Operating temperature: 0 ... 50 oC
- Storage temperature: -10oC ... 60oC (no icing)
- Weight: < 0.5 kg
