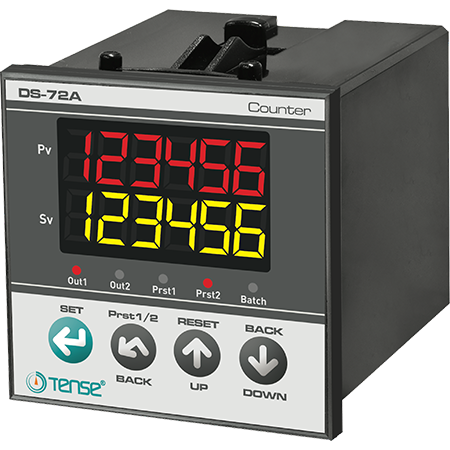

Electronic Pulse Counter / Pulse Counter
Counting relays are designed to perform a variety of tasks depending on the input pulses.
-
Double contact forward/backward counter
-
Input for counting switches, proximity switches, and incremental encoders
-
Password protection
-
Selectable input frequency
-
Calibration constant; 0.00001.....9.99999
-
Selectable decimal point; 1st ..... 5th digits
-
7 options for input / 10 output functions
-
Add "OFFSET" to the count value
-
PRESET1: Absolute/relative option
-
OUT: Latch or pulse 0.1.....999.9 seconds
-
Load count value and OUT status at last power failure after first startup
-
RESET via front panel
-
EEPROM memory to store settings
