Luftkonditionering för elcentraler / Kylare 1600W, PAD1600.01, Plastim

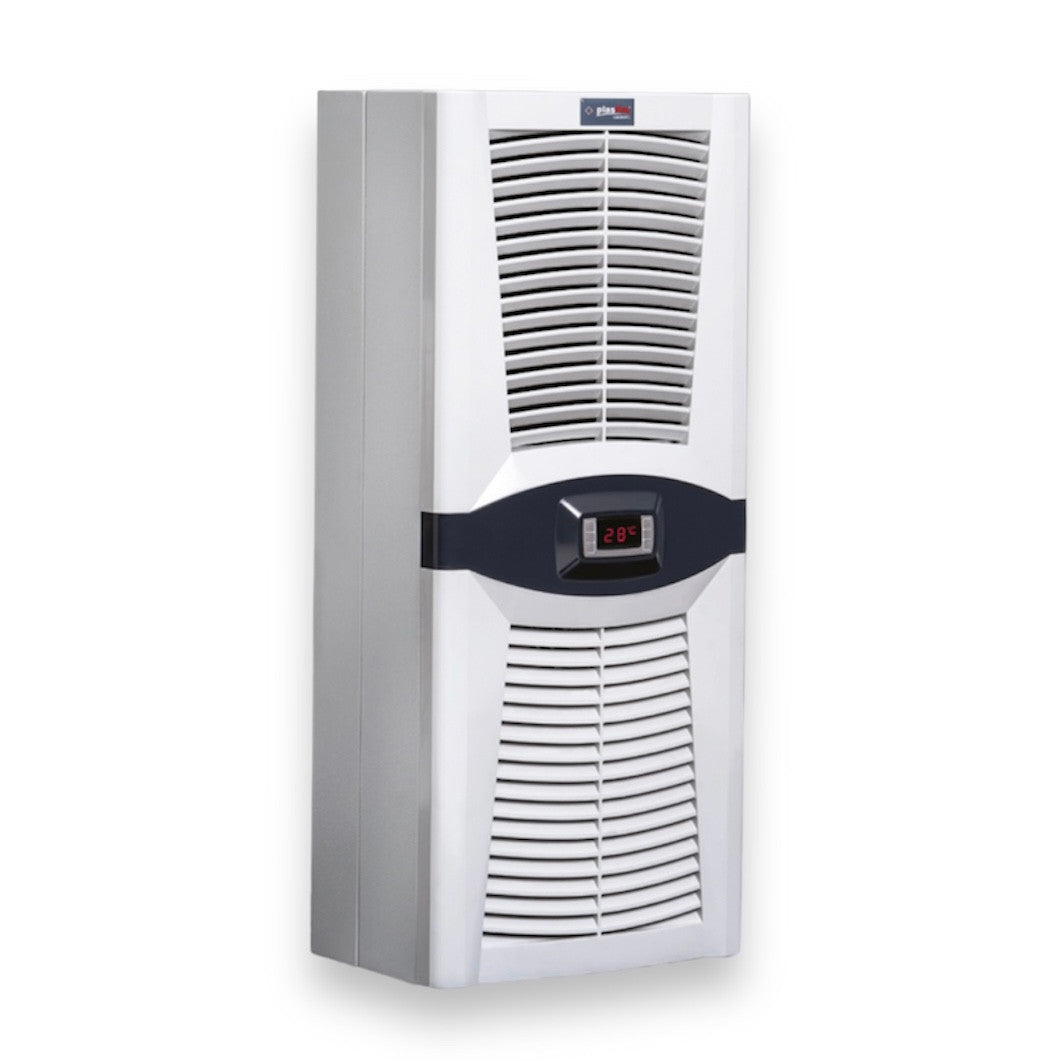

Air conditioning unit for inverter / cooler 1600 watt (Design Series) for inverter and automation panel side or wall mounting.
PAD1600.01 (PLASTIM) air conditioning unit for electrical cabinets features HIGHLY's state-of-the-art open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the electrical cabinet door.
Everything needed to install the air conditioning for the cabinet is included - gaskets, drain pipe, mounting screws, power plug.
|
TECHNICAL DETAILS |
PAD1600.01 |
|
Kylkapacitet L35 / L35 |
1600W / 5500BTU |
|
Operating voltage |
230VAC |
|
Frequency |
50/60 Hz |
|
Starting current |
8A |
|
Operating current |
3.2A |
|
Fuse |
10A |
|
Power consumption |
725W |
|
Operating range |
0-55 °C |
|
Factory setting for thermostat |
35 °C |
|
Differential |
4 °C |
|
Max. air volume Air volume Internal circuit |
510 m³/h |
|
Max. air volume Air volume external circuit |
510 m³/h |
|
Type of refrigerant |
R134a |
|
Amount of refrigerant |
600 grams |
|

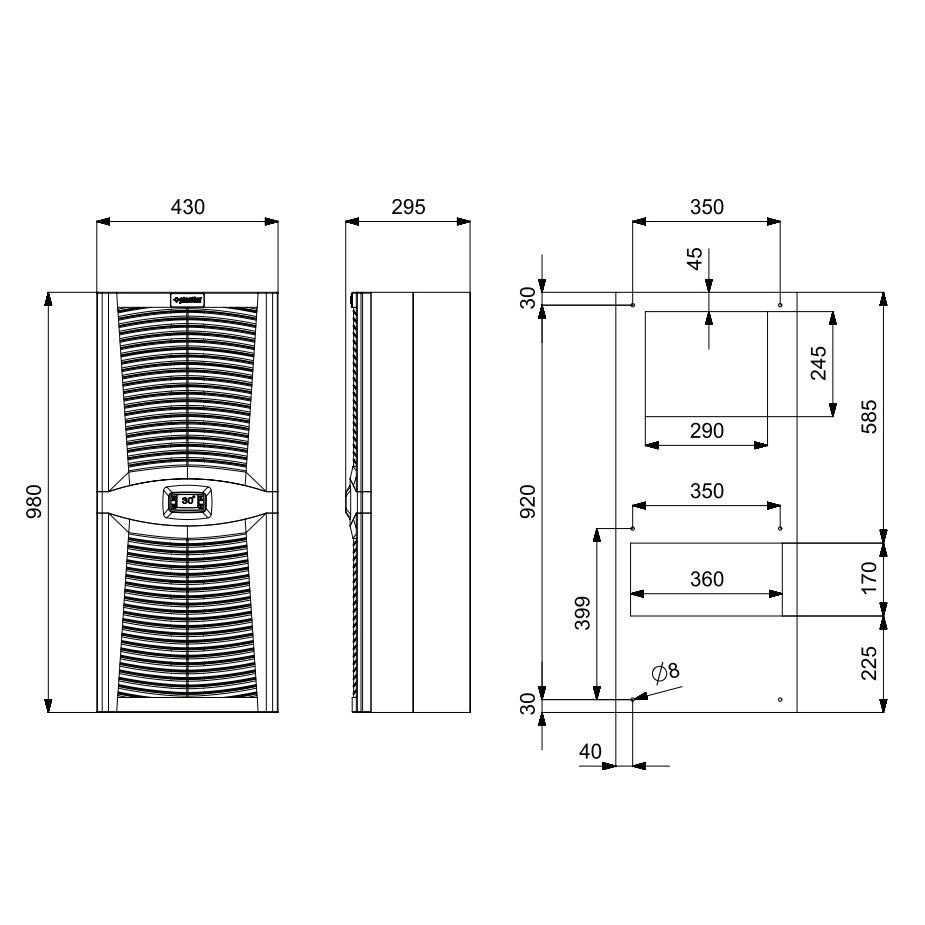

Measurements and dimensions |
980x430x270 mm |
|
Weight |
45 kg |
|
Sound level |
79 dB |
|
Protection class (internal circuit) |
IP 54 |
|
Protection level (external circuit) |
IP 34 |
|
text color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Type of compressor |
Rotating |
|
Flavors |
EBMPAPST |
|
Mounting method |
Wall mounting |
