Luftkonditionering för elcentraler / Cooler 2100W, PAD2100.01, Plastim

Only 3 left
SKU: PAD2100.01
Common price 25 135 kr incl. VAT

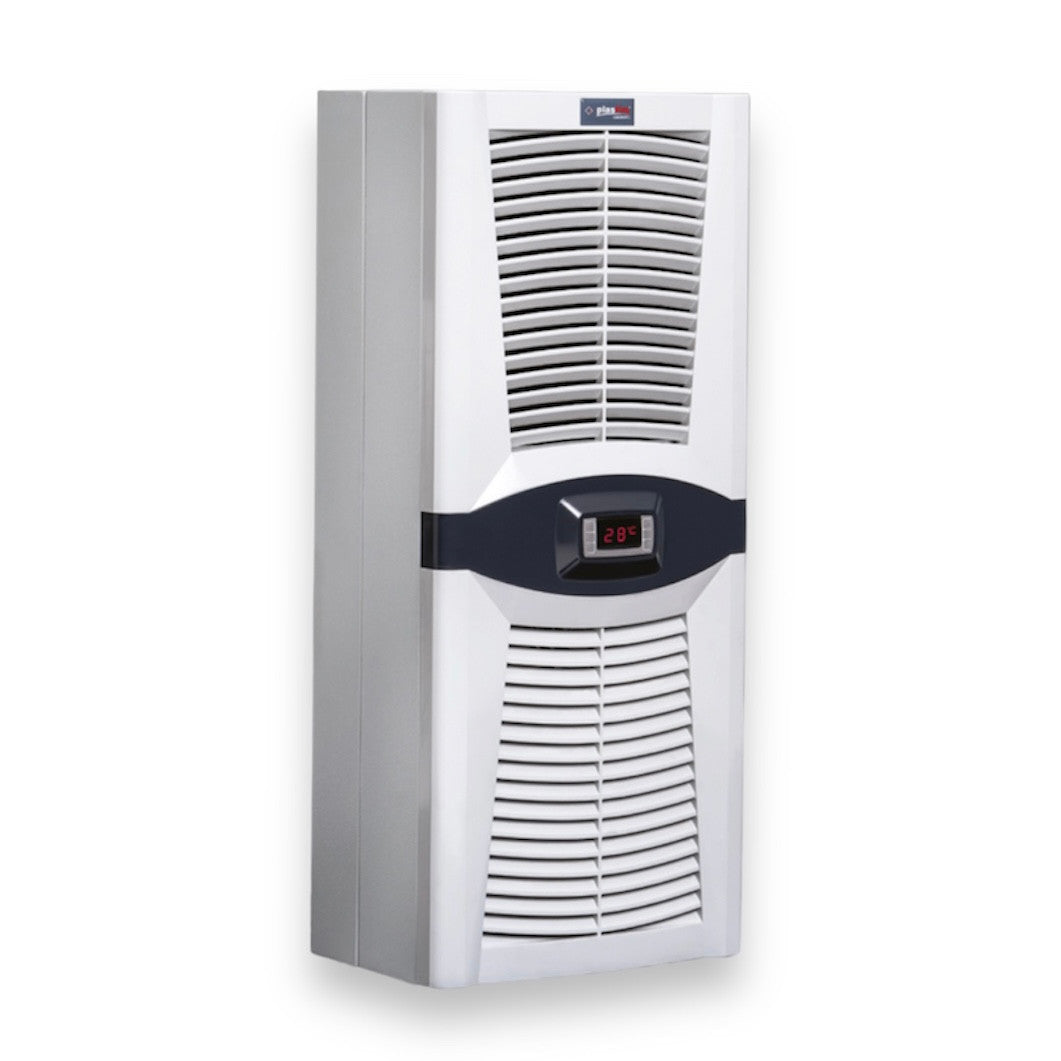

"Design Series" air conditioning unit for inverter / cooler 2500 Watt / 8550BTU for side or wall mounting of inverter and automation panel.

Luftkonditioneringen PAD2550.01 (PLASTIM) for electrical panels is equipped with HIGHLY's state-of-the-art open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the electrical panel door opening.

Everything needed to install the air conditioning for the cabinet is included - gaskets, drain pipe, mounting screws, power plug.

TECHNICAL DETAILS

PAD2100.01

Kylkapacitet L35 / L35

2100W / 7200BTU

Operating voltage

230VAC

Frequency

50/60 Hz

Starting current

10A

Current during operation

3.8A

Fuse

16A

Power consumption

800W

Operating range

0-55 °C

Factory setting for thermostat

35 °C

Differential

4 °C

Max. air volume Air volume Internal circuit

510 m³/h

Max. air volume Air volume external circuit

625 m³/h

Type of refrigerant

R134a

Amount of refrigerant

700gr

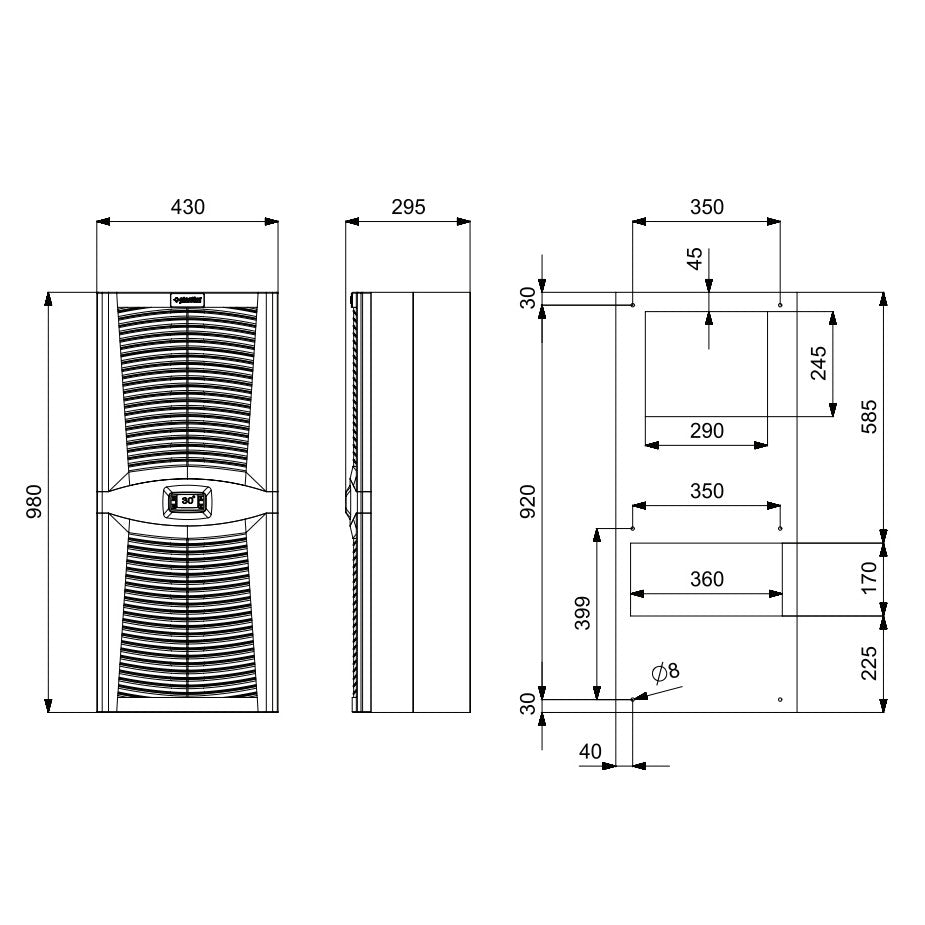

Measurements and dimensions

980x430x270 mm

Weight

46 kg

Sound level

80 dB

Protection level (internal circuit)

IP 54

Protection level (external circuit)

IP 34

Color scheme

RAL7035

Compressor

HIGHLY/HITACHI

Type of compressor

Rotating

Fläktar

EBMPAPST

Mounting method

Wall mounting
