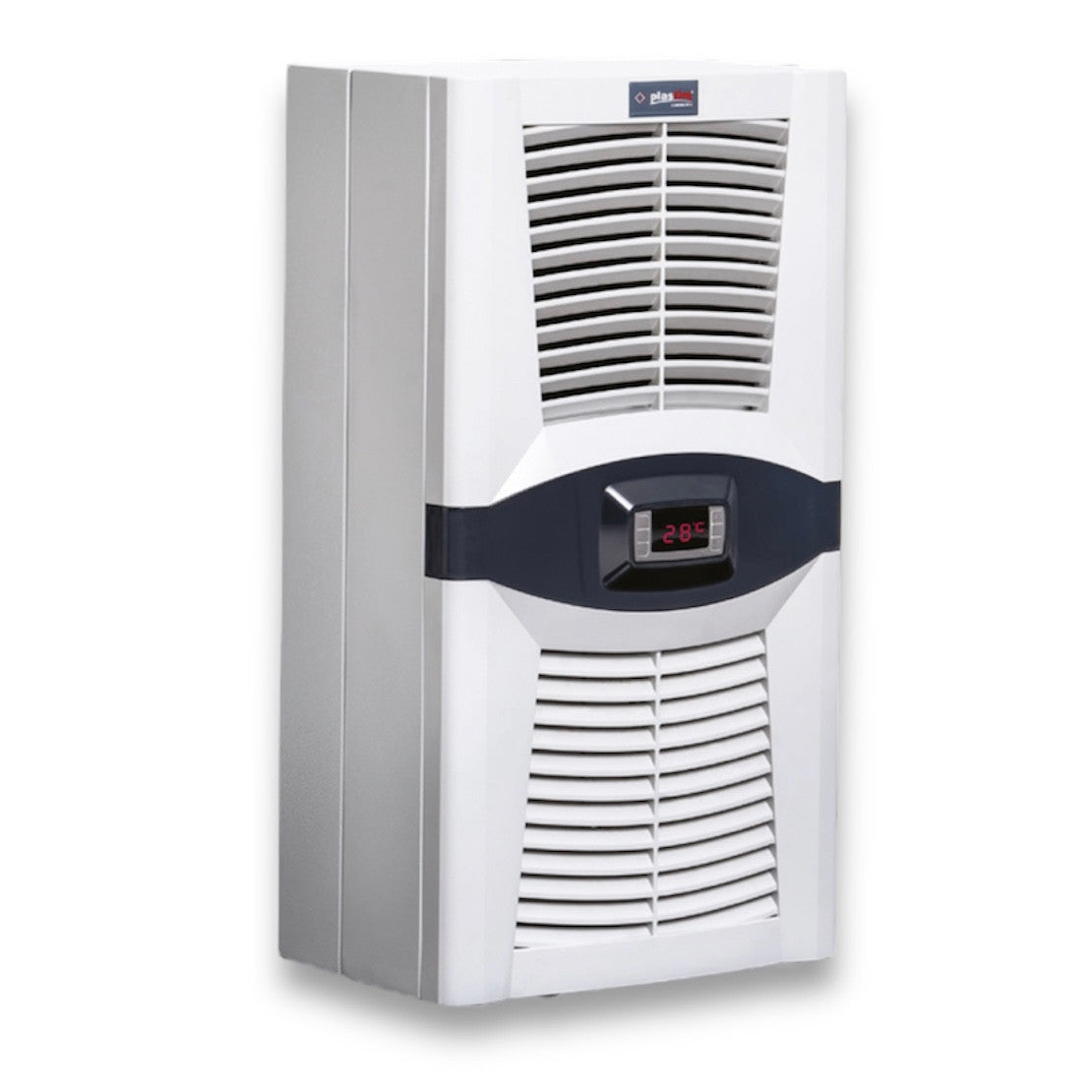

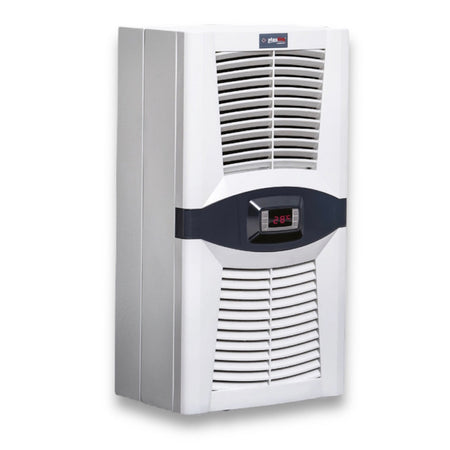

Luftkonditionering för elcentraler / Cooler 550W, PAD0550.01, Plastim
"Design Series" air conditioning for switchgear / cooler 550 Watt / 1900BTU for switchgear and automation panel side or wall mounting.
The air conditioner PAD0550.01 (PLASTIM) for electrical cabinets features HIGHLY's state-of-the-art open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the electrical cabinet door opening.
Everything needed to install the air conditioner for the cabinet is included - gaskets, drain pipe, mounting screws, power plug.
| TECHNICAL DETAILS | PAD0550.01 |
| Cooling Capacity L35 / L35 | 550W / 1900BTU |
| Operating Voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting Current | 1.2A |
| Operating Current | 1.1A |
| Fuse | 6A |
| Power Consumption | 330W |
| Operating Range | 0-55 ° |
| Factory Thermostat Setting | 35 ° |
| Differential | 4 ° |
| Max. Air Volume Internal Circuit | 340 m³/h |
| Max. Air Volume External Circuit | 505 m³/h |
| Type of Refrigerant | R134a |
| Refrigerant Amount | 245gr |

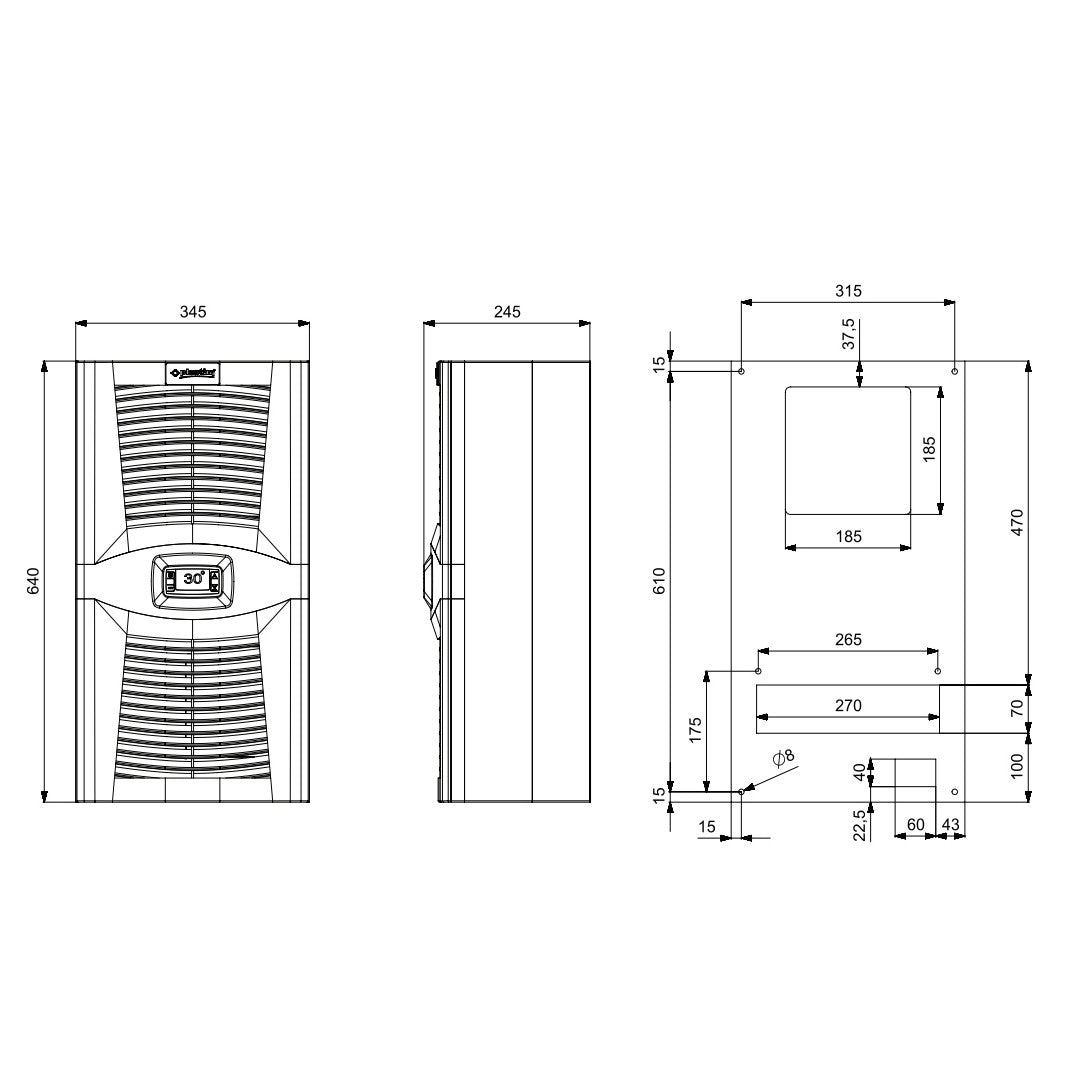

| Dimensions | 640x345x223mm |
| Weight | 27 kg |
| Noise Level | 76 dB |
| Protection Rating (Internal Circuit) | IP 54 |
| Protection Rating (External Circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Type of Compressor | Rotary |
| Fans | EBMPAPST |
| Mounting Method | Wall Mounting |
