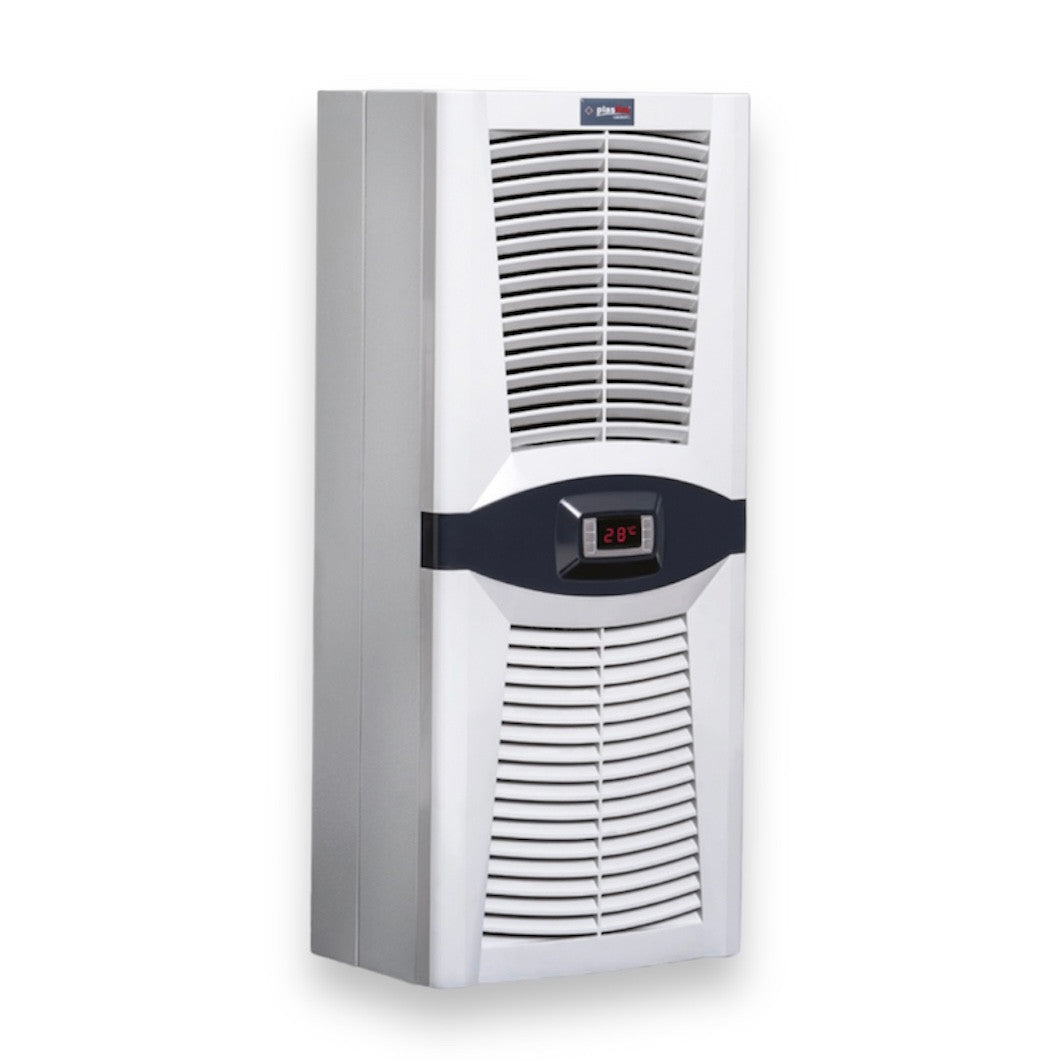

Luftkonditionering för elcentraler / Kylare 850W, PAD0850.01, Plastim
"Design Series" air conditioning for electrical cabinet / cooler 850 Watt / 2990BTU for electrical cabinet and automation panel side or wall mounting.
The air conditioner for electrical cabinets PAD08500.01 (PLASTIM) is equipped with a modern open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the electrical cabinet door.
Everything needed to install the cabinet air conditioner is included - gaskets, drain pipe, mounting screws, power plug.
| TECHNICAL DETAILS | PAD0850.01 |
| Cooling capacity L35 / L35 | 850W / 2900BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 6A |
| Operating current | 1.7A |
| Fuse | 10A |
| Power consumption | 394W |
| Operating range | 0-55 °C |
| Factory thermostat setting | 35 °C |
| Differential | 4 °C |
| Max. air volume Internal circuit air volume | 340 m³/h |
| Max. air volume External circuit air volume | 505 m³/h |
| Type of refrigerant | R134a |
| Amount of refrigerant | 290gr |
| Dimensions | 800x345x223mm |
| Weight | 30 kg |
| Noise level | 76 dB |
| Protection rating (internal circuit) | IP 54 |
| Protection rating (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Type of compressor | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
