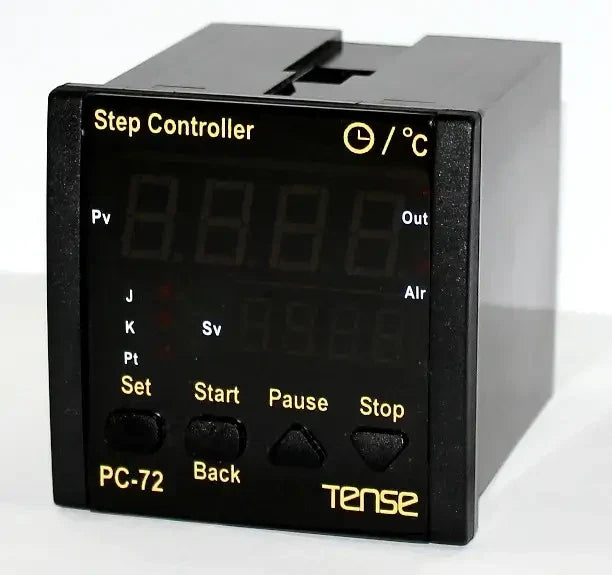

PID temperature controller, for mounting on panel and machine/control panel, relay outputs, measuring range -100°C ... +1750°C, resolution/step 0.1ºC, 20 temperature steps/heating steps (made in Turkey, TENSE)

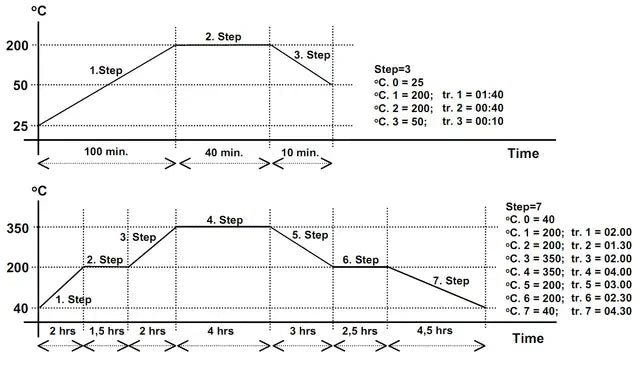

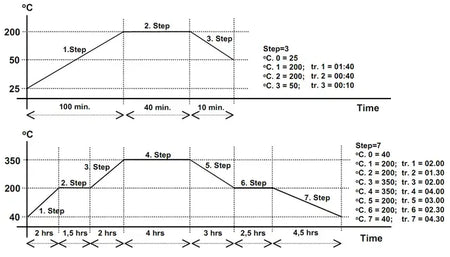

As you can see in the diagrams above, the TENSE thermostat, unlike cheap analogues, allows you to set temperature limit points and the time it takes for the temperature to reach the setpoints. This greatly simplifies the programming process. In addition, the PID mode allows you to keep the system temperature as close to the setpoints as possible.
An important difference compared to competitors is also the simultaneous indication of current temperature, setpoint temperature, setting steps and time. It is very practical to have the START/STOP/PAUSE/SET control buttons on the front panel - this ensures quick and efficient control of your processes.
Temperature control is done with on/off or PID control. The controller offers self-optimization, which prevents the process values from being overridden.
Automatic tuning of PID parameters
Setting of up to 20 temperature/heating levels
Each step is programmed for up to 18 hours of operation
- Sensor type: T/C (J,K,T,S,R), Pt100
- Selectable control type: P, PI, PD, PID or ON-OFF
Automatic removal of "overshoot" in PID mode
- Anti-windup
ON delay for OUT in cooling mode
Password protection
EEPROM memory for saving settings
OUT relay outputs (NO+NC) 250VAC, 2A
The measuring range depends on the sensor and can be set using the buttons on the temperature controller.
Don't forget to order our temperature sensors - thermocouple type J Fe-Const (metric 6/8) with temperature measurement scale: -100 °C - +600 °C. Available with 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m and 5 m long cable
