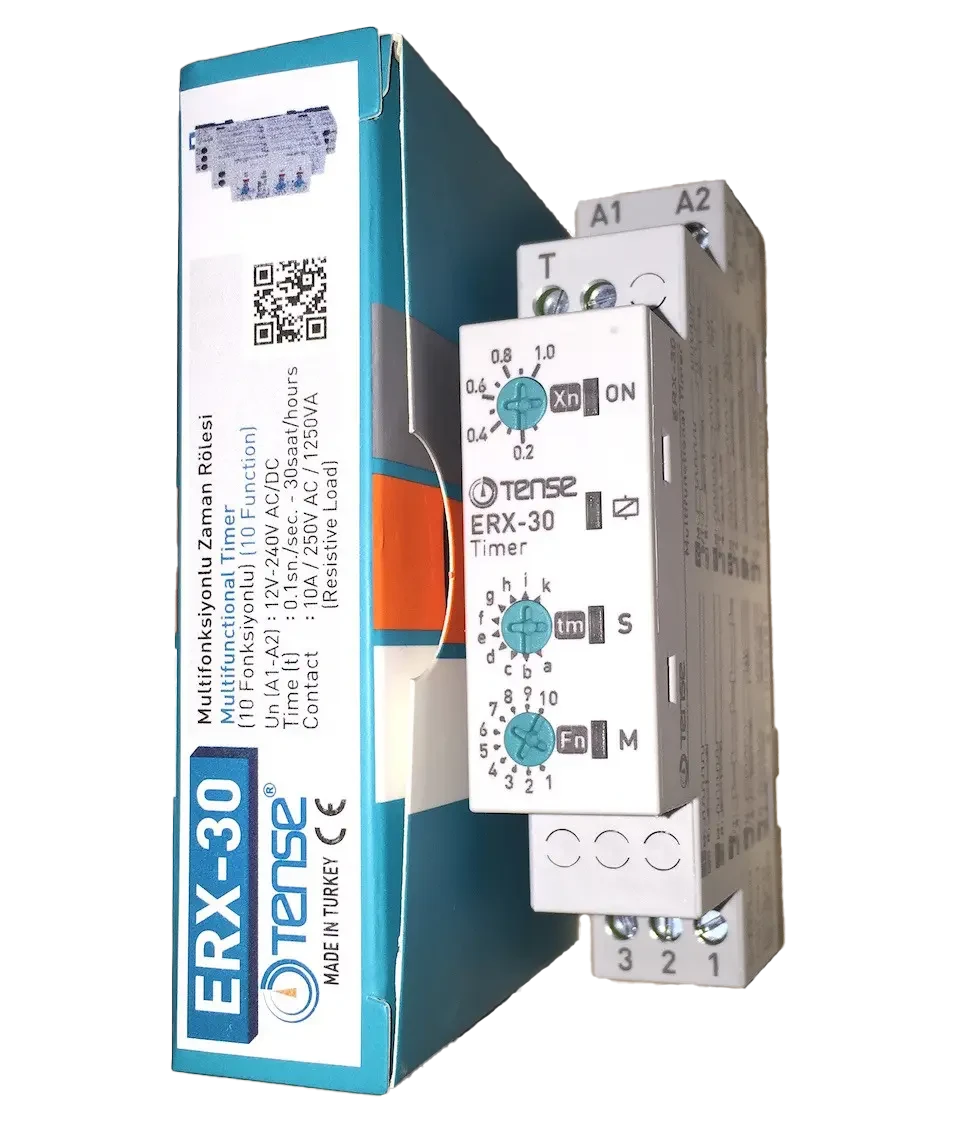

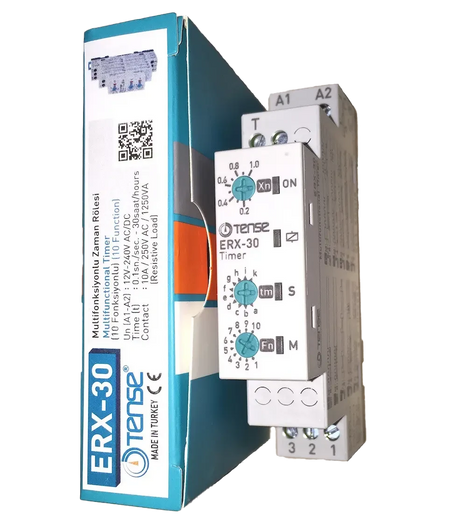

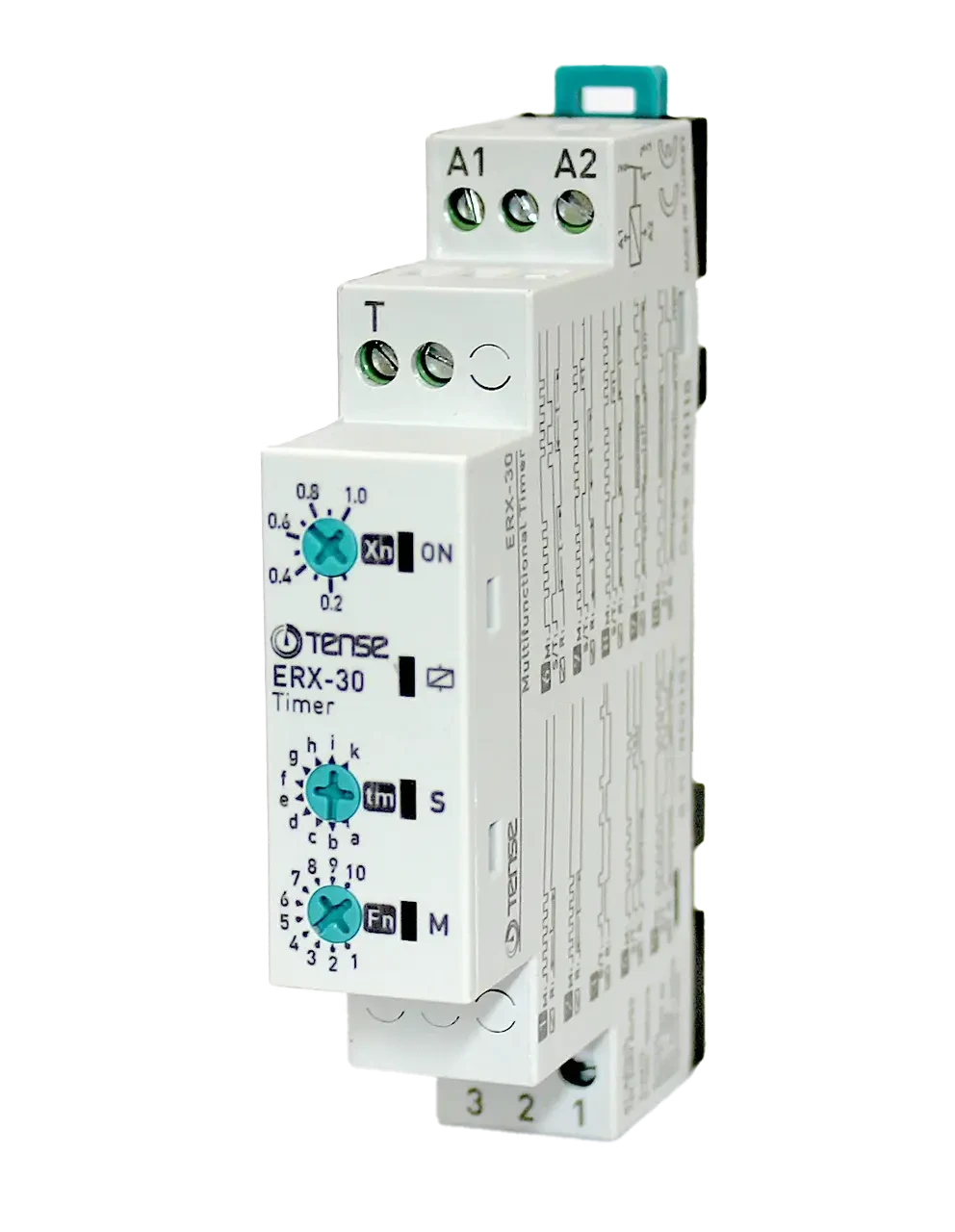

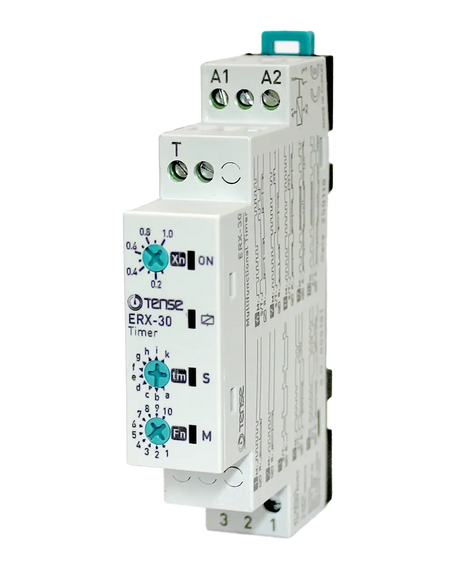

Multifunctional time relay time interval: 0.1 s - 30 h 12V-240V AC/DC
Multifunctional timer relay (10 functions) 12V - 240V AC/DC with 1 changeover contact.
The timer relay is multifunctional, designed to control timing processes in automation systems in production and households. This relay can be used in industrial equipment - coffee or seed roasting, meat product preparation, packaging/wrapping lines, as well as in houses or apartments, for example to control a fan in the bathroom or lighting in the staircase.
The 10 built-in timing functions cover a wide range of tasks: for example, to organize automatic ventilation processes, open/close windows, periodically turn on heating or ventilation, for lighting or rotating advertising signs, in washing machines, bouncing control inputs, rotation - delay on, delay off, simultaneous delay on and off, etc.
It should be noted that this timer relay is also versatile in terms of performance - it can operate with alternating current and direct current in the range of 12 to 240 volts!

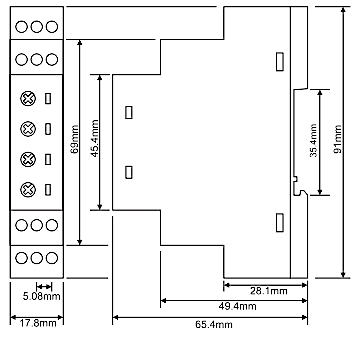

The timer relay is mounted on a standard 35 mm DIN rail

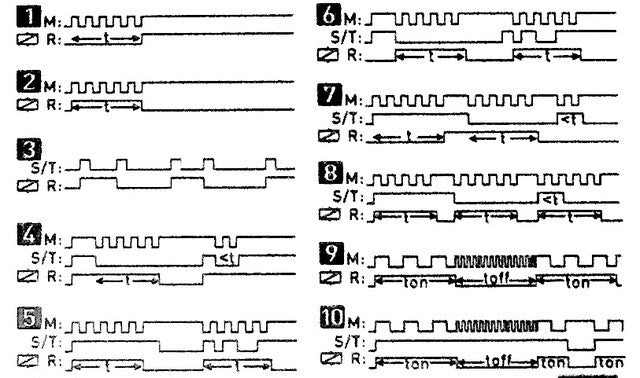

- Bistable relay 12v 24V 48v 110v 230 AC DC
- Delayed start 12v 24V 48v 110v 230 AC DC
- Delayed return 12v 24V 48v 110v 230 AC DC
- Blinker for bounce start 12v 24V 48v 110v 230 AC DC
- Delayed start after switching and delayed 12v 24v 48v 110v 230 AC DC
- Gap-start flash 12v 24V 48v 110v 230 AC DC
- Delayed start after activation and delayed return after deactivation of control contact (ON/OFF DELAY) 12v 24V 48v 110v 230 AC DC
- Pulse generator 12v 24V 48v 110v 230 AC DC
- SINGLE SHOT falling edge 12v 24V 48v 110v 230 AC DC
- Delayed return after SINGLE SHOT 12v 24V 48v 110v 230 AC DC
The universal timer relay ERX-30 easily replaces the more expensive counterparts on the market - E1ZM10, MUR3, MXR1, IZT, E1ZMQ10, MFZ12-230V, ZR-67-BAT, CRM-91H, PCU-511, PCU-520, RF-520, 810.230.00001, 83.02.0.240, PCA-511, RF-511, REV-201, REV-120, CT-MHD, THC-M1, PCU-501, PCU-530, PCM-10, 600XU-A-1-CU, BMR TRF10, CRM-91H /UNI , MCR-MB-003, MCR-MA-003
