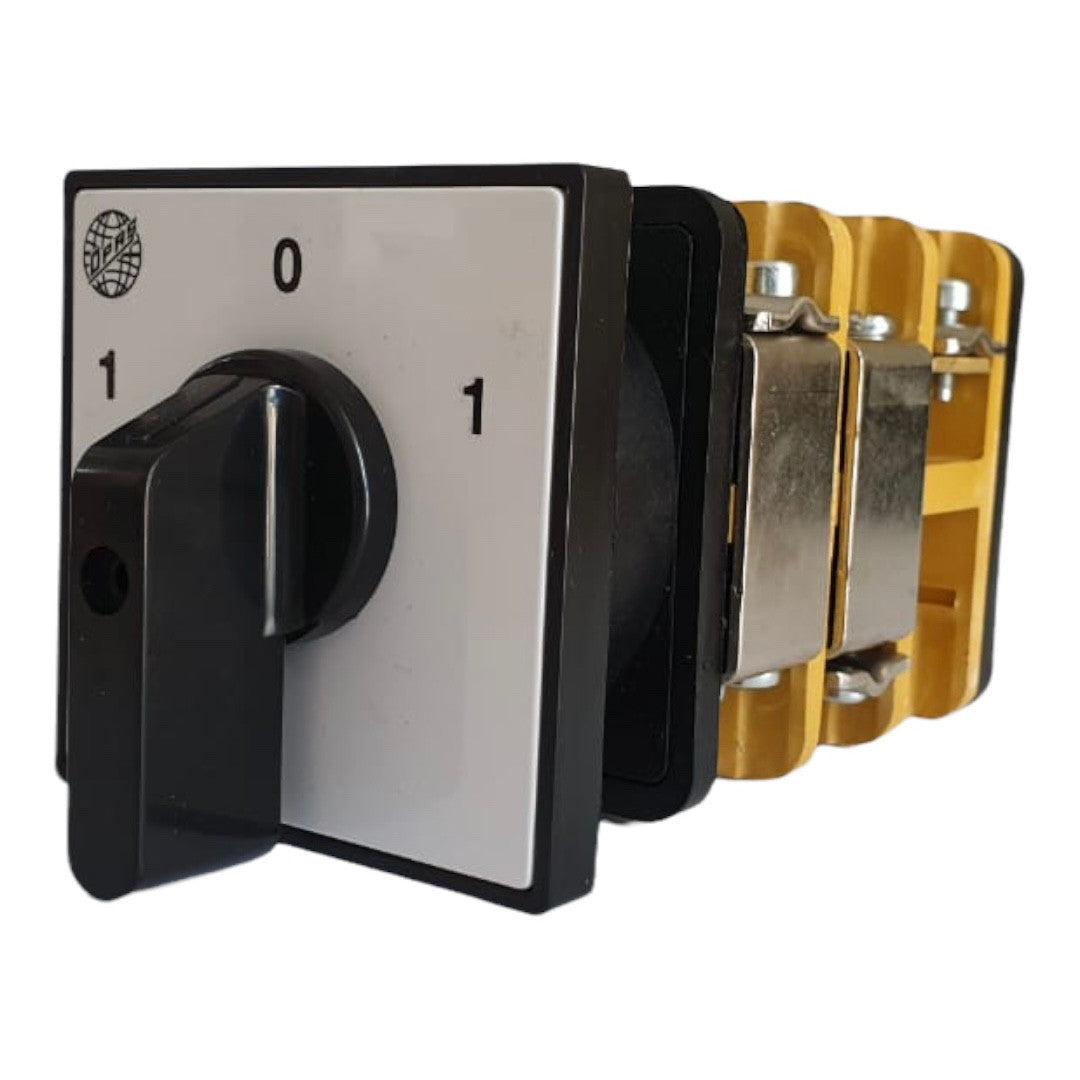

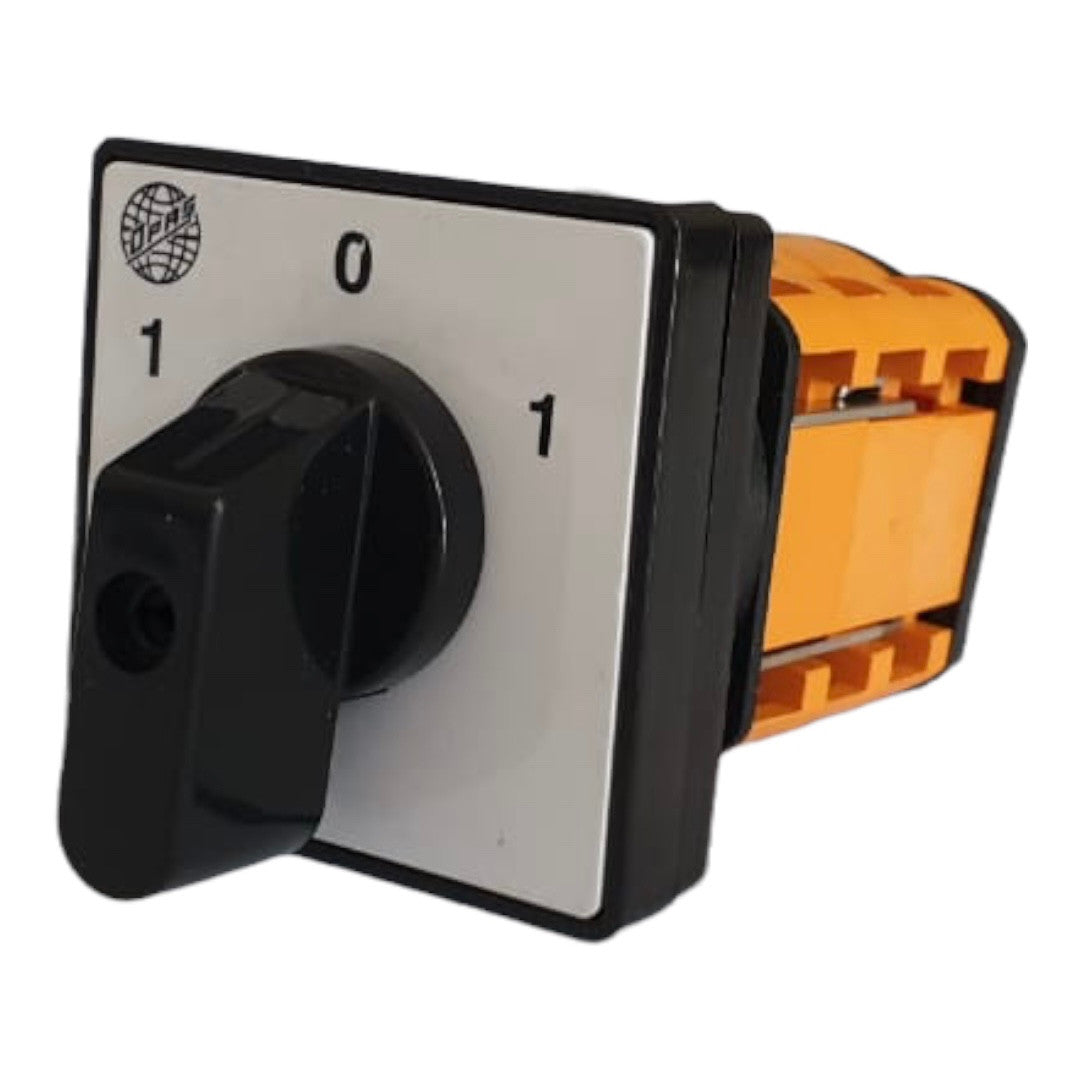

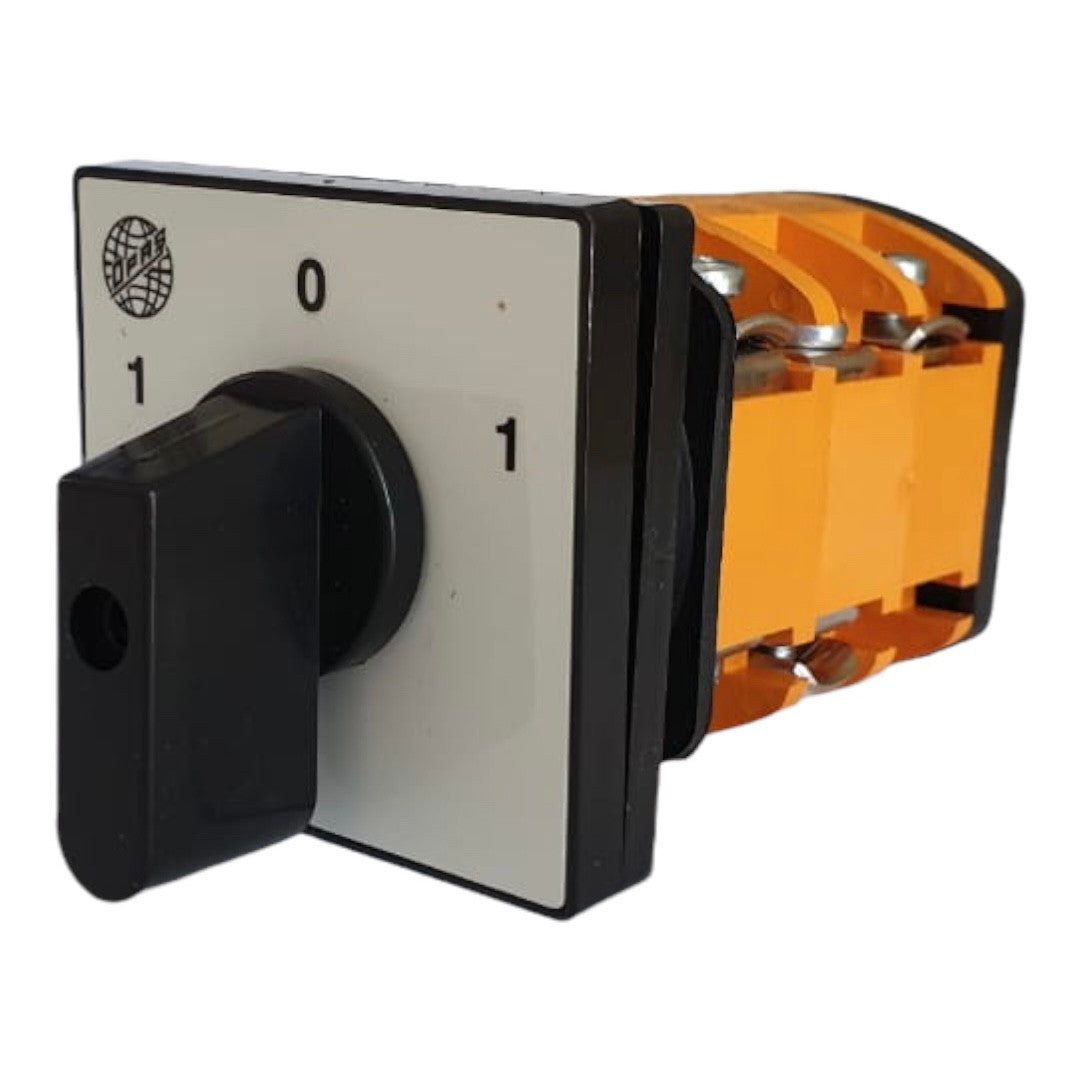

Reversing cam switch / Reversing rotary switch 1-0-1, 3 poles, 10-120A
Reversing switch 1-0-1, 3-pole, 10-120A, YPT304 manufacturer OPAŞ (Turkey)
Reverse cam rotation switch designed to change the direction of rotation of electric motors.
Package switches are designed for manual switching of low-voltage circuits. They are used to create main and control circuits, turn on and off electric motors and other low-power devices. The advantages of this series of switches are compact size, electrical and mechanical resistance.
Technical specifications
- Articulated design.
- Device type: rotary switch

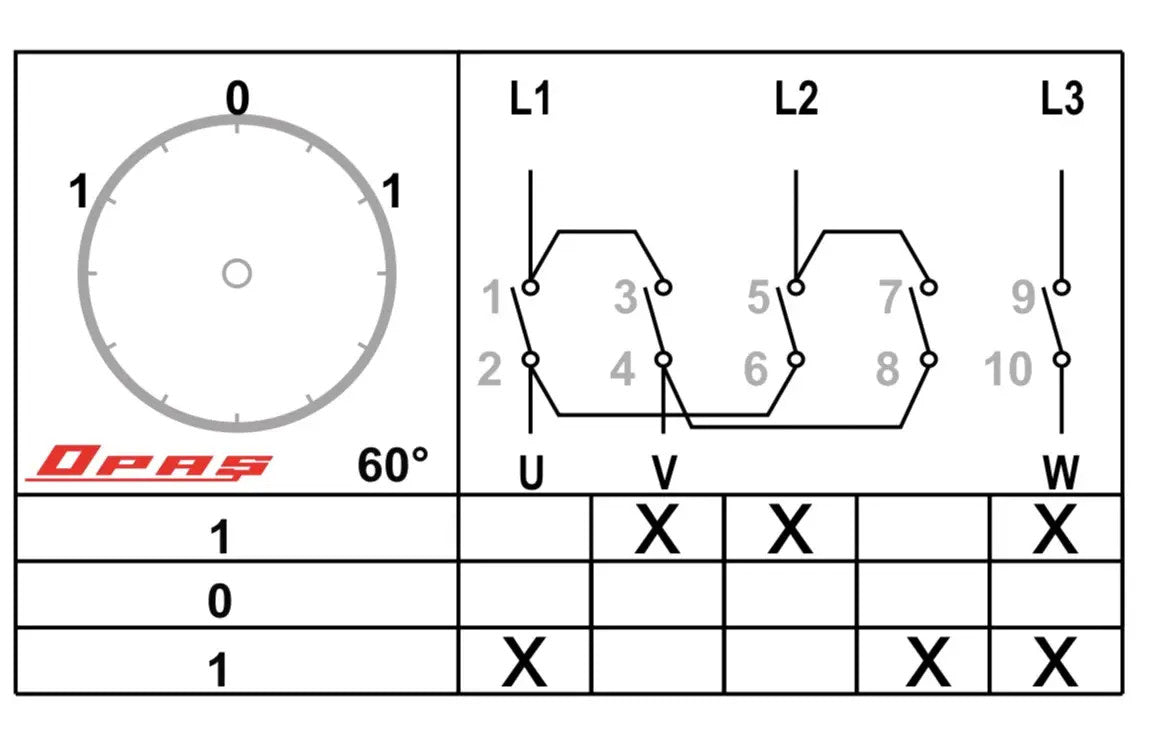

- Wiring diagram: 1-0-1 9 (reverse)
- Number of poles: 3
- Type: Built-in
- Number of phases: 3-phase
- Protection: No
- Degree of protection against dust and water: IP20
- Operating temperature range: -30 to +55°C
- Manufacturer: Turkey
- Country of manufacture: Turkey
