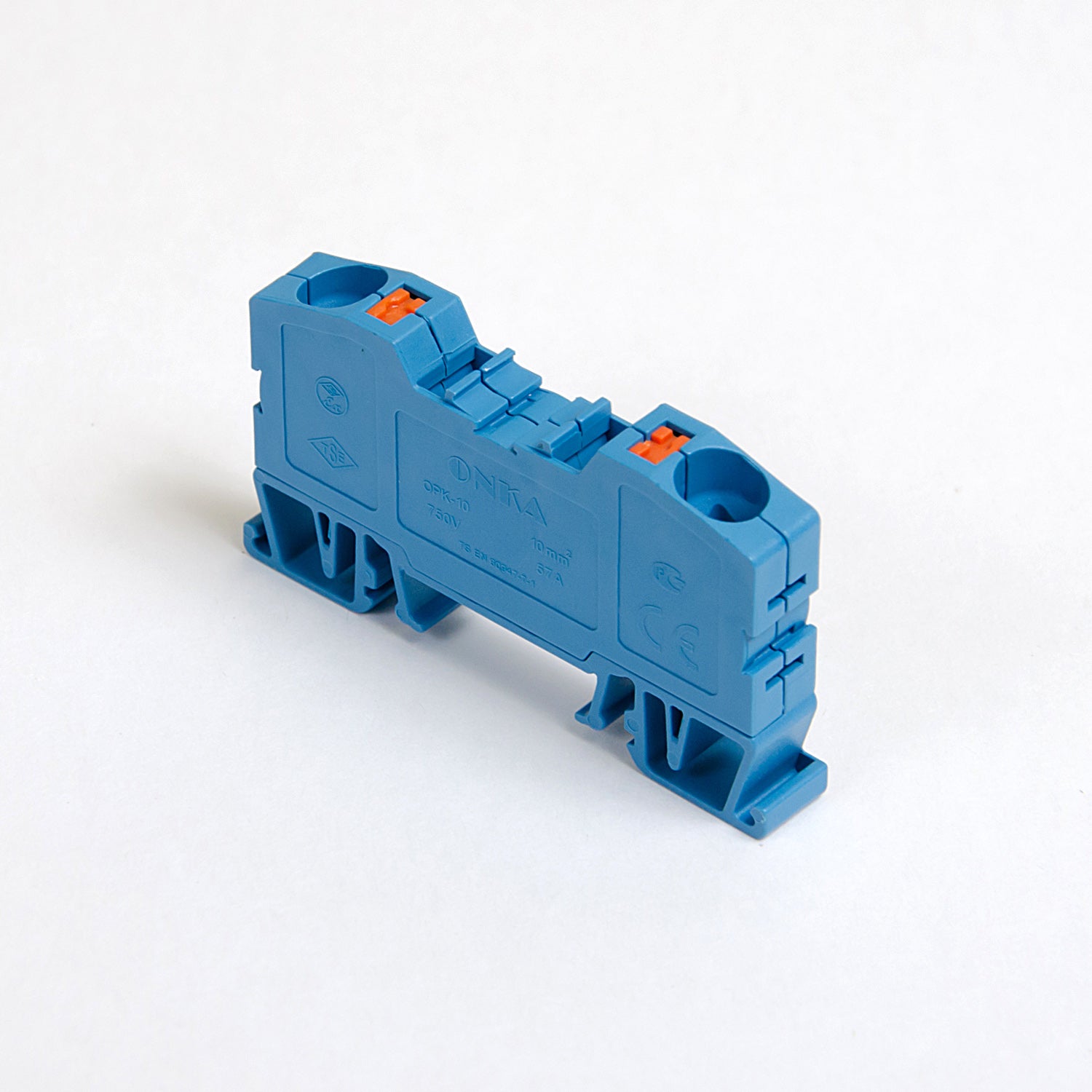

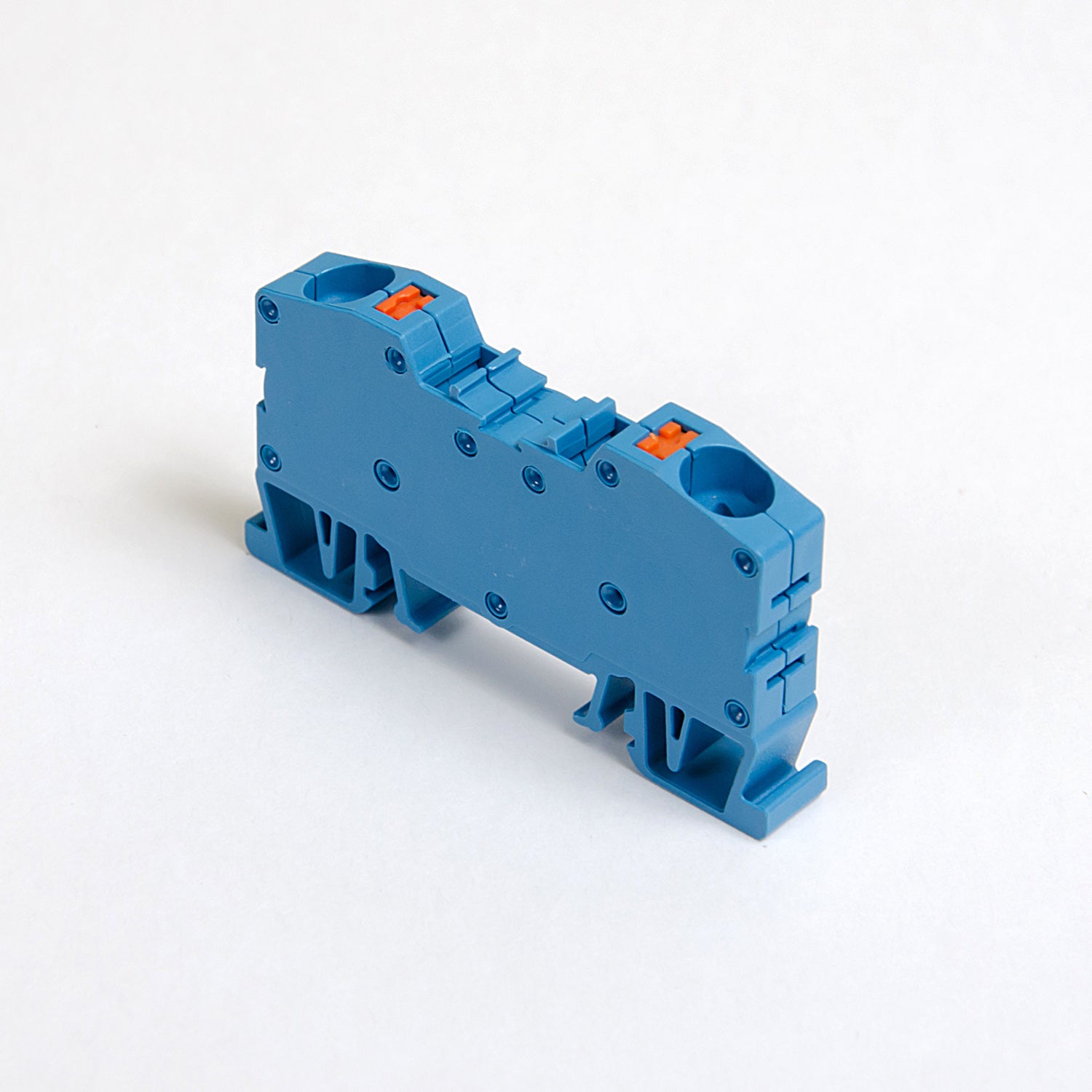

ONKA 10mm2 terminal block for spring rails DIN rail terminal block 2-wire blue, 1020047

Spring contact for power rail / DIN rail terminal block 2-wire, retractable connector, blue, ONKA, made in Turkey.

The ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The coupling is made of high-quality materials and guarantees long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of the connected individual wire up to: 10mm2
Color: blue
Insulation material of the main casing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection mode: top/top
Cable strip length: 12mm
Type of electrical connection: spring terminal / retractable connector
Rated voltage: 750V
Rated current: 57A
Working temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
