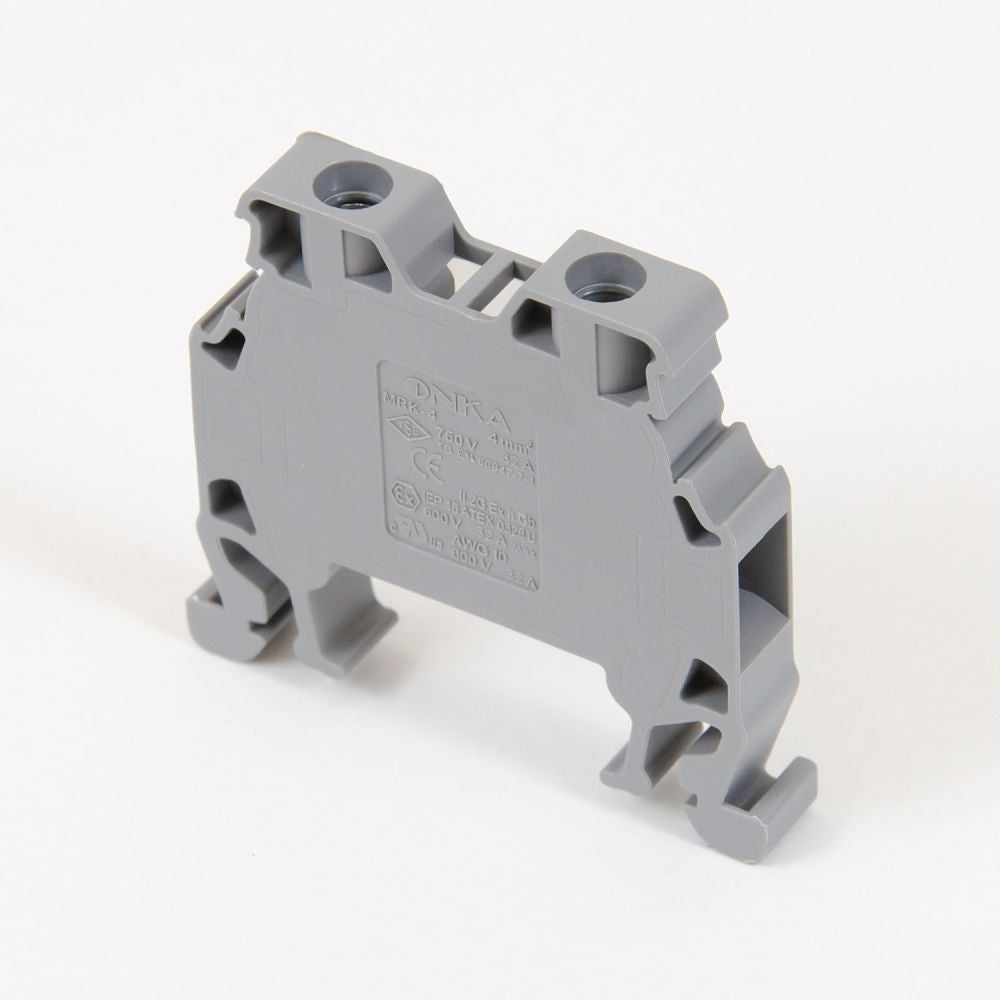

ONKA 4mm2 screw rail terminal block DIN rail terminal 2-wire gray, 1010022

Threaded power rail connector / DIN rail terminal block 2-wire gray, ONKA, made in Turkey

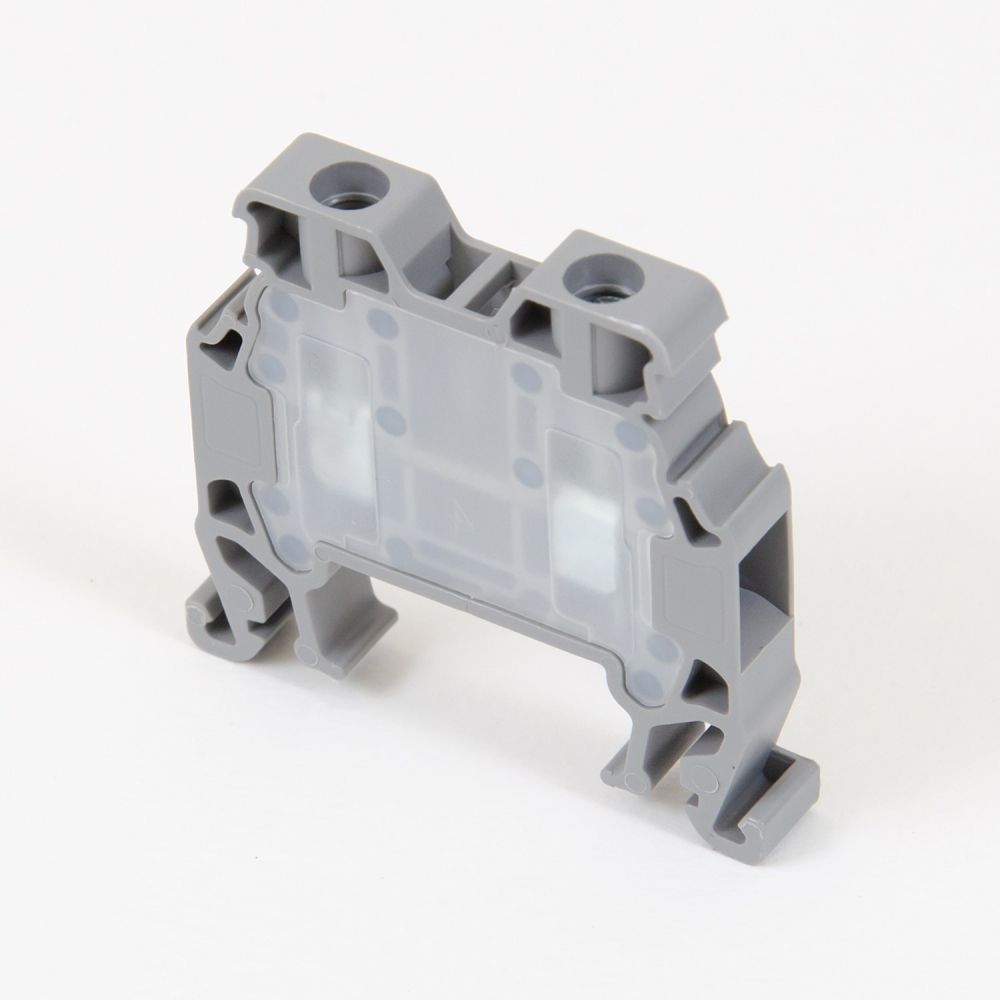

ONKA's compact installation rail connectors provide great possibilities for connecting all types of wires with different cross-sections. The transparent housing makes it easy to check that the wires are correctly positioned. ONKA's original quick connectors facilitate installation and provide 100% connection security.

Technical parameters

Cross-section of the connected individual wire up to: 4mm2
Color: gray
Insulation material of the main casing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 0.5 Nm
Connection position: sideways / on the side
Cable strip length: 10 mm
Type of electrical connection: screw terminal
Nominal voltage: 750V
Rated current: 32A
Working temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
