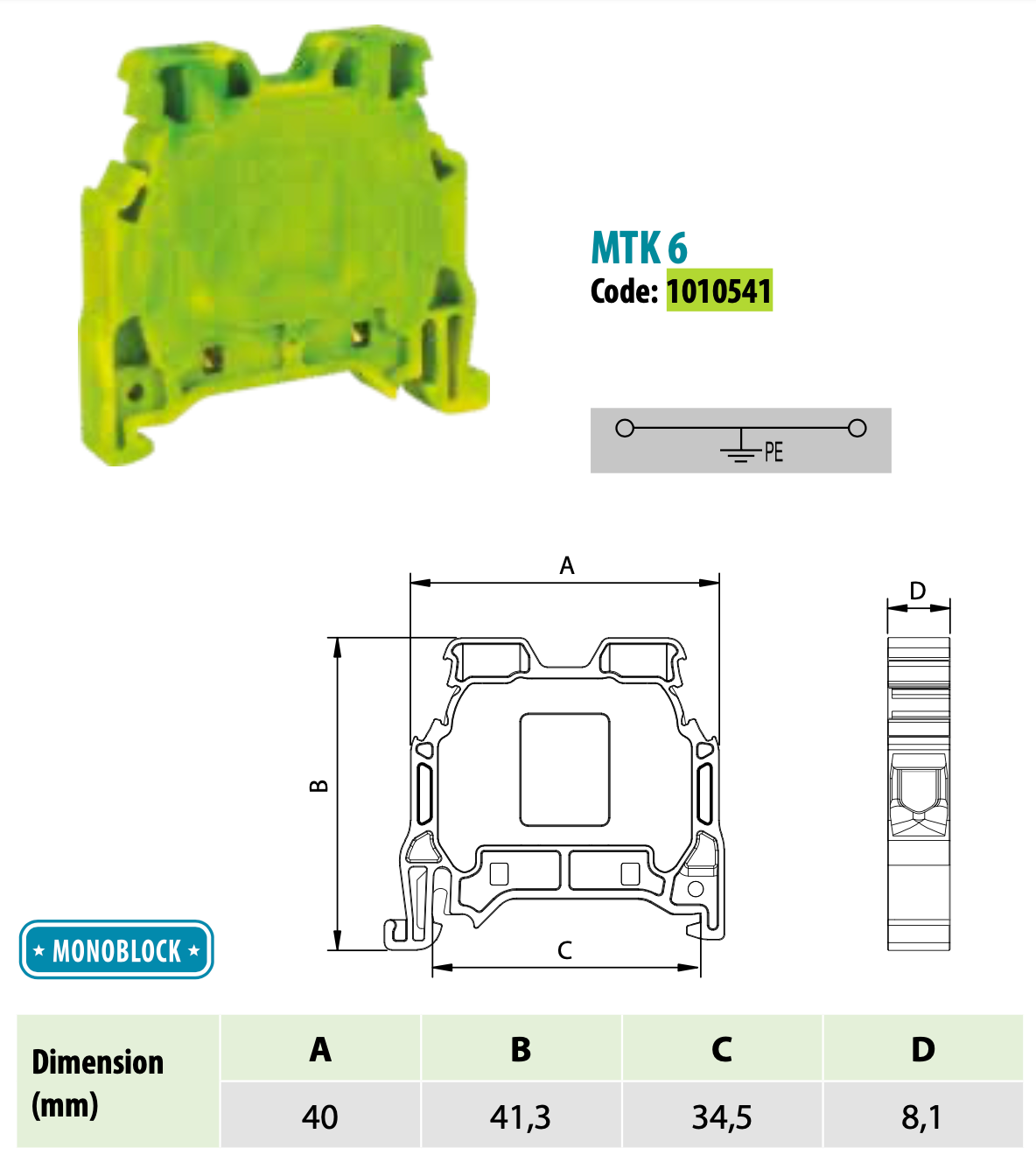

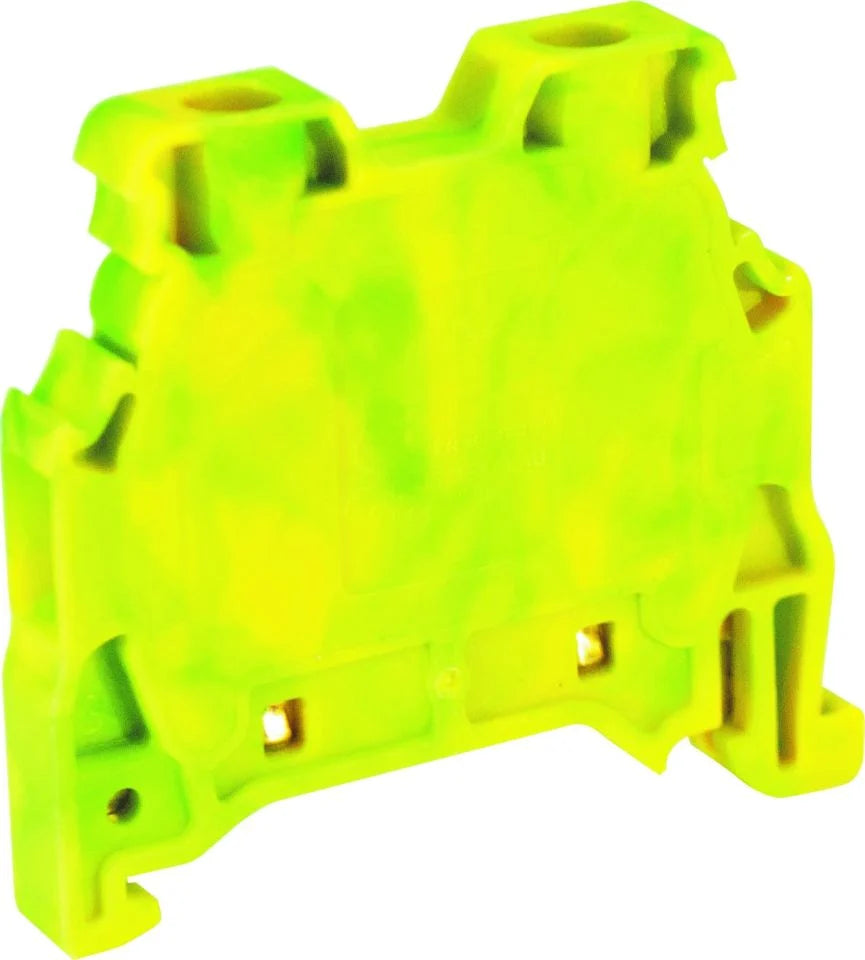

ONKA 6mm2 PE Screw rail terminal block DIN rail terminal 2-wire gray, 1010541

PE threaded rail connector / DIN rail terminal block 2-wire green-yellow, ONKA, made in Turkey

ONKA's compact installation rail connectors provide great possibilities for connecting all types of wires with different cross-sections. The transparent housing makes it easy to check that the wires are correctly positioned. ONKA's original quick connectors facilitate installation and provide 100% connection security.

Technical parameters

Cross-section of the connected individual wire up to: 6mm2
Color: Green-yellow (camouflage)
Insulation material of the main casing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 0.8 Nm
Connection position: sideways / on the side
Cable strip length: 12mm
Type of electrical connection: screw terminal
Rated voltage: 750V
Operating temperature range: -40°C ... 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
